Siemens PFA 100 Platelet Function Analyzer Hematology LAB B4170-00 - Working



Web Information

The PFA-100® System measures the complex process of primary hemostasis and aids in the rapid detection of platelet dysfunction. It is the first commercially available in vitro testing system to incorporate high-shear flow in which the process of platelet adhesion and aggregation following a vascular injury is simulated in-vitro.

The PFA-100 System provides automated assessment for inherited, acquired, or drug-induced platelet dysfunction.

  • Helps detect inherited, acquired and drug-induced platelet dysfunction
  • Screening test for patients with impaired primary hemostasis, such as von Willebrand disease1
  • Verifies efficacy of desmopressin acetate (DDAVP) therapy in pre-surgical patients2
  • Assesses the platelet dysfunction due to the effect of Aspirin
  • Evaluates platelet dysfunction in children over 1 year of age3
  • Evaluates platelet dysfunction in multiple clinical settings, such as presurgical screening, high-risk pregnancy and menorrhagia

Features & Benefits

The PFA-100 System has become the new standard for detection of platelet dysfunction. The PFA-100 Analyzer quickly and easily measures platelet plug formation in a small, whole blood sample (<1 mL) and reports a ”Closure Time” in 5-8 minutes. It is a unique system that challenges platelets under high shear flow conditions similar to the physiologic environment in which platelets normally function. It detects inherited-, acquired- or induced- platelet dysfunction by uniquely simulating, in vitro, the function of platelets in Primary Hemostasis

A Model of Efficiency:

  • Accurate detection of inherited, acquired or induced platelet dysfunction under high-shear stress
  • Sensitive to quantitative and qualitative abnormalities of VWD in both plasma and platelets
  • Simple, rapid and precise assessment of platelet function

Test Menu:

  • Collagen/Epinephrine and Collagen/ADP test cartridges



    • Easy to use - self-contained disposable test cartridges
    • Fast - delivers quantitative results within 5 to 8 minutes
    • Cost savings - minimal sample manipulation and maintenance required


Technical Specifications

Test System






High-shear force dynamic flow system




Measuring channel

Single measuring channel

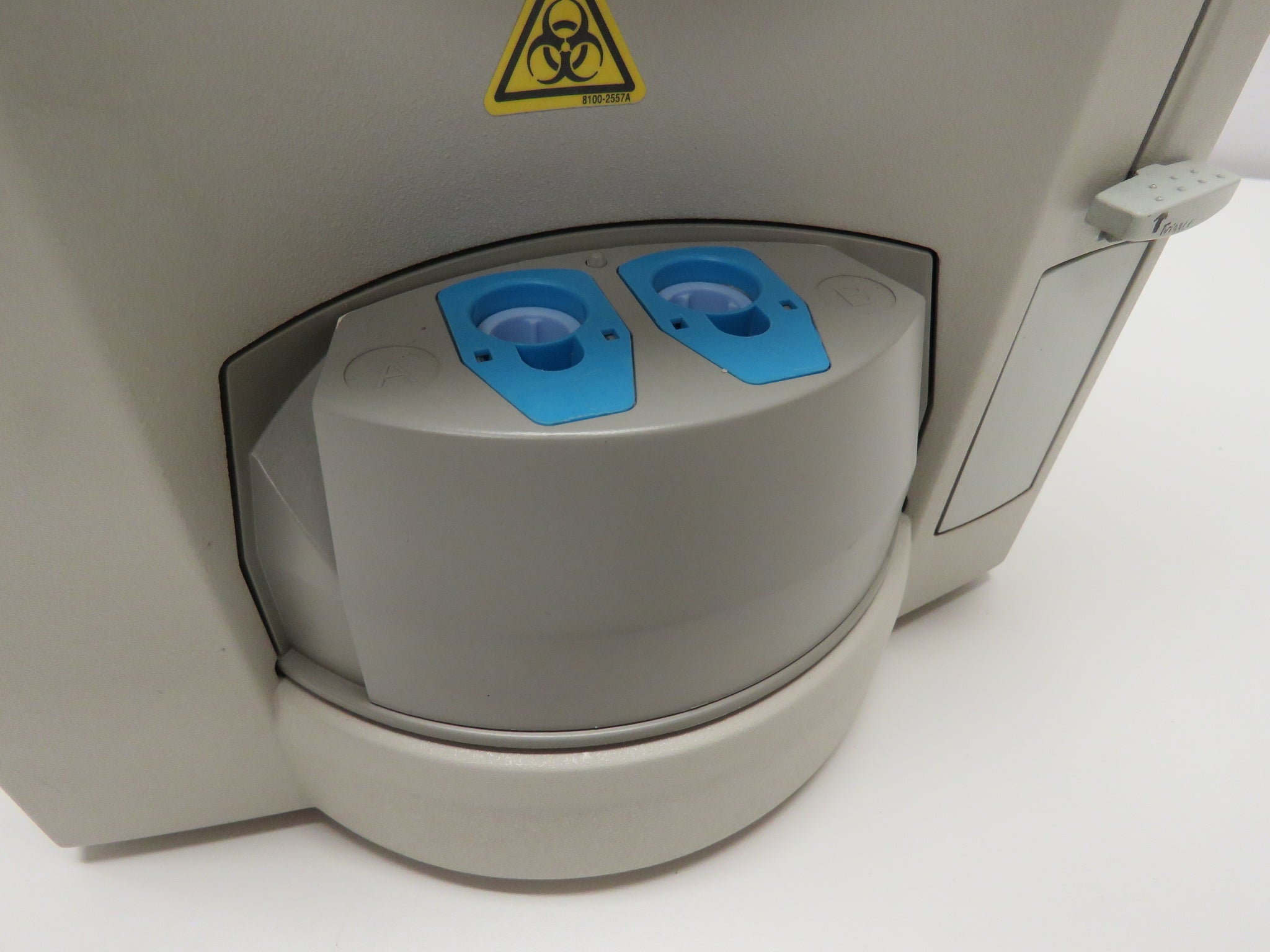

Incubation category

Two incubation wells




Incubation temperature

37.9 °C ± 1.0 °C

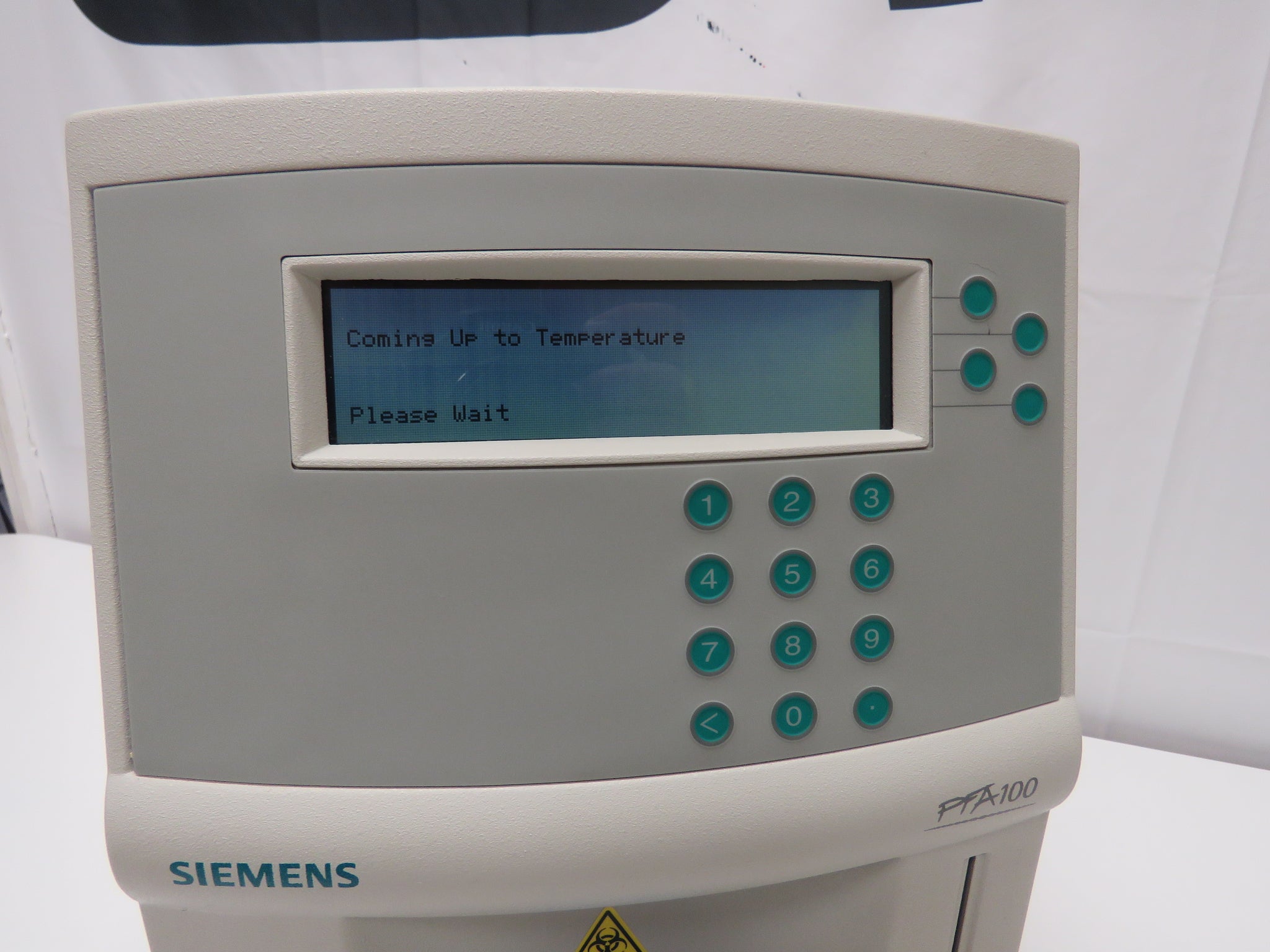

Incubation warm up-time

<15 minutes (room to operating temperature)









Sample Handling





Type of sample

Citrated whole blood




Sample mechanism

Manual pipette dispensing (800 μL)




Barcode identification

Optional external barcode reader for sample identification









Reagent Handling






Single disposable self-contained test cartridge




Reagent recognition

Positive optical coding reagent cartridge identification




Additional reagent

Trigger solution














Single test

Col/EPI or Col/ADP: 6 tests/hour




Duplicate test

Col/EPI or Col/ADP: 10 tests/hour

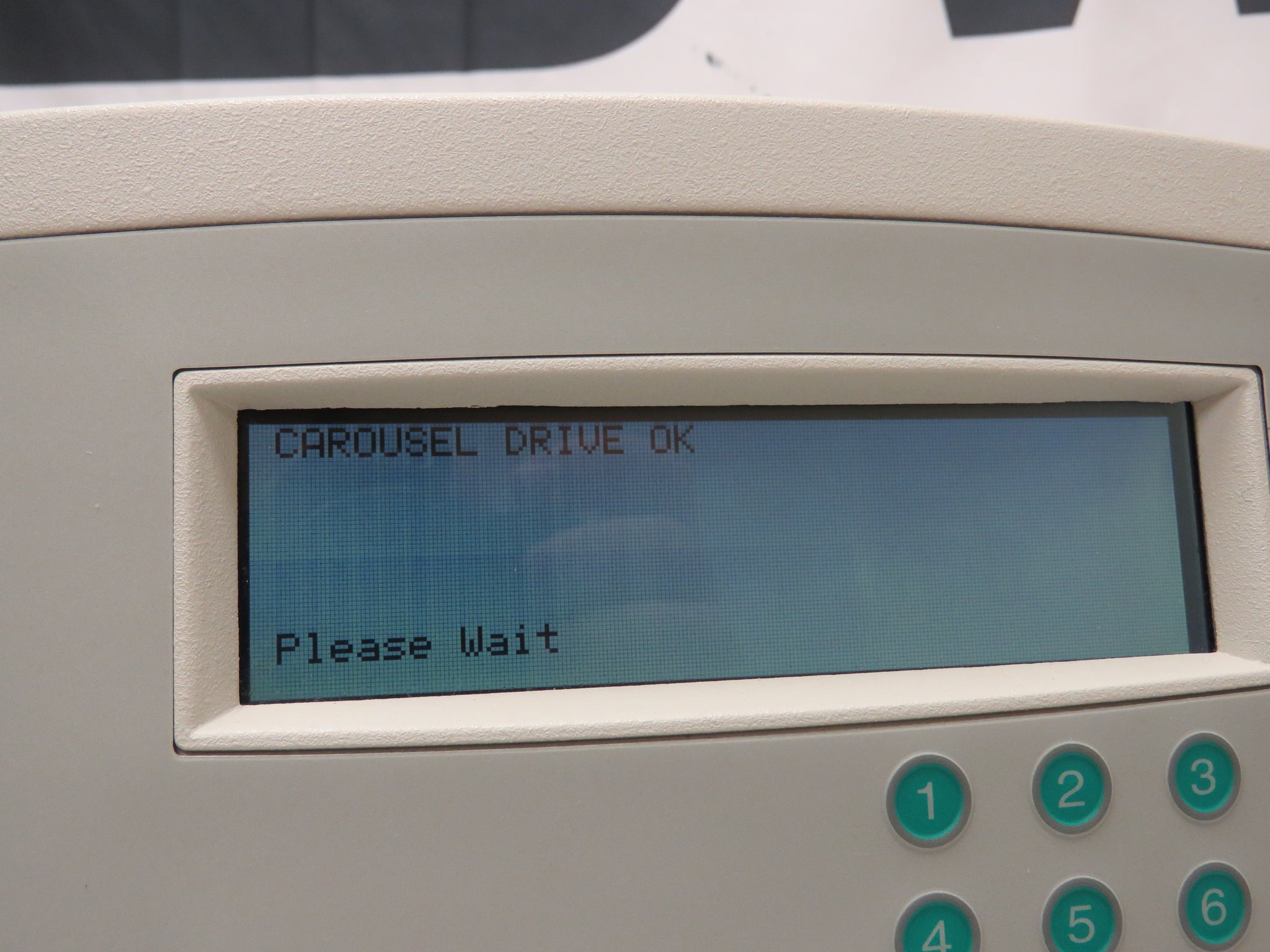

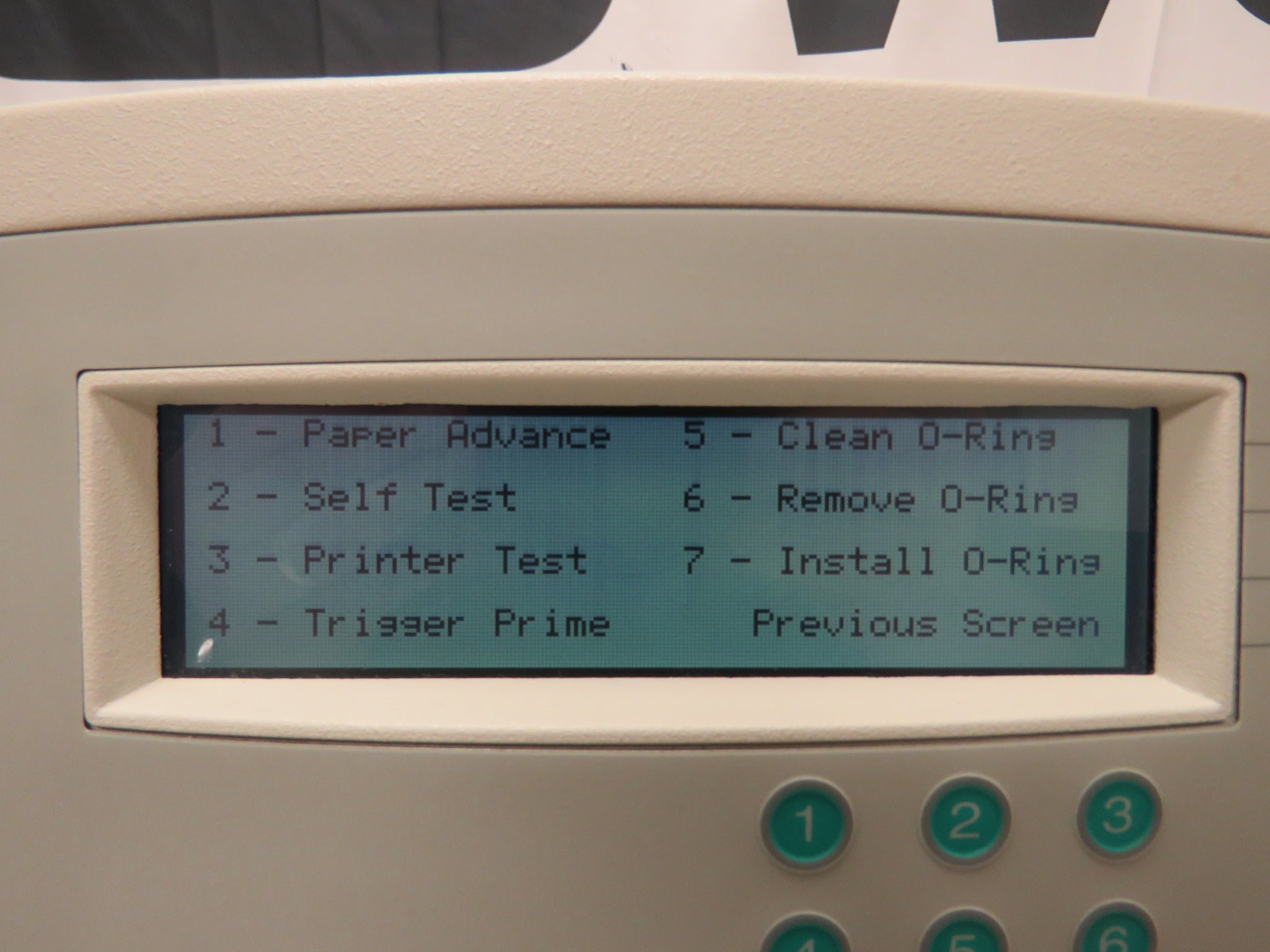

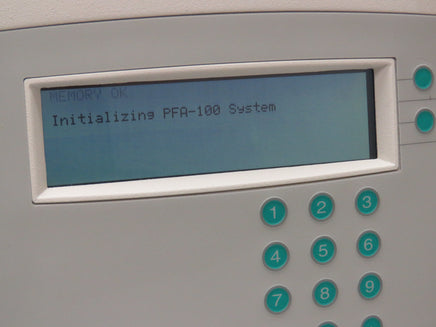

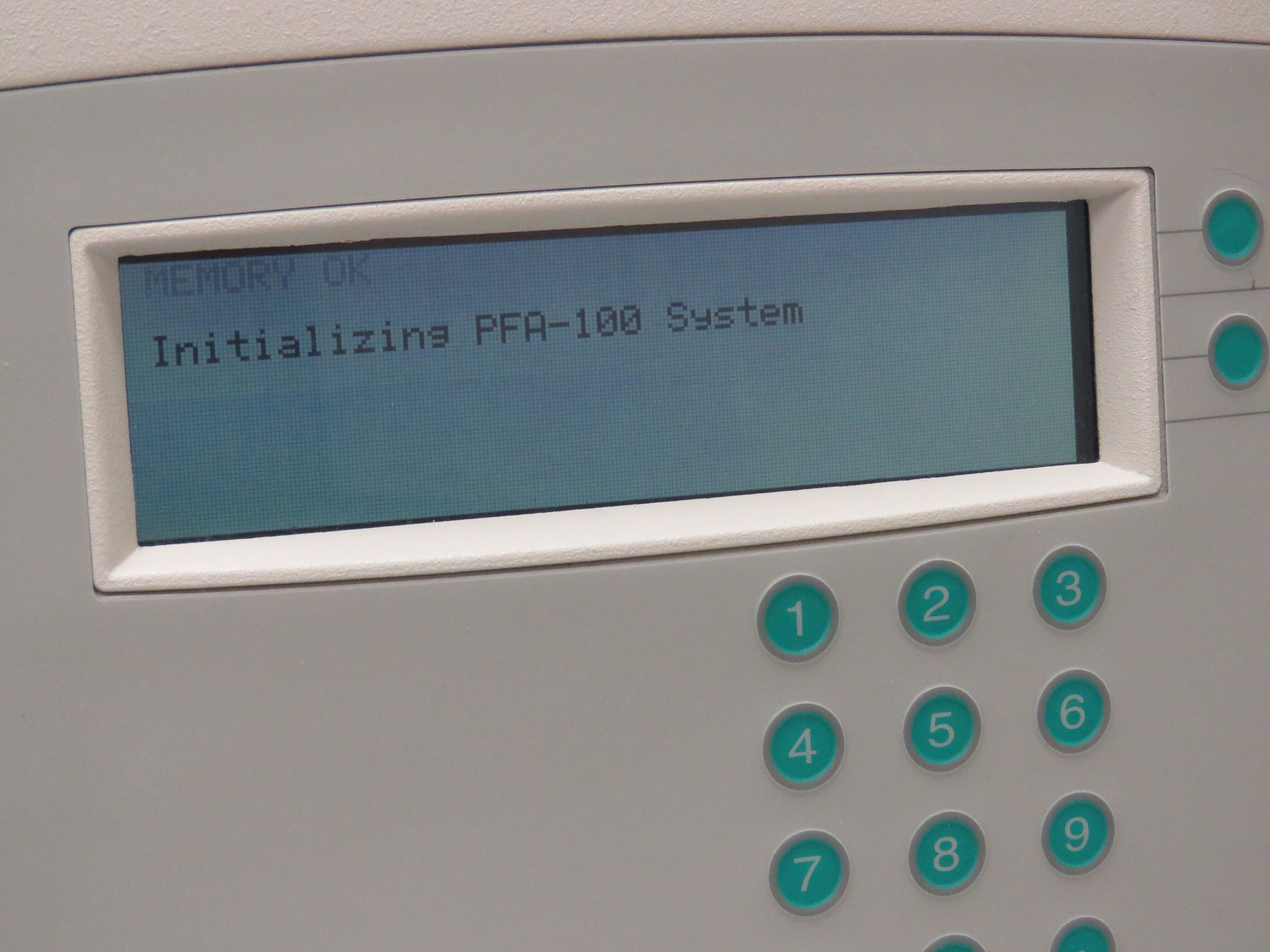

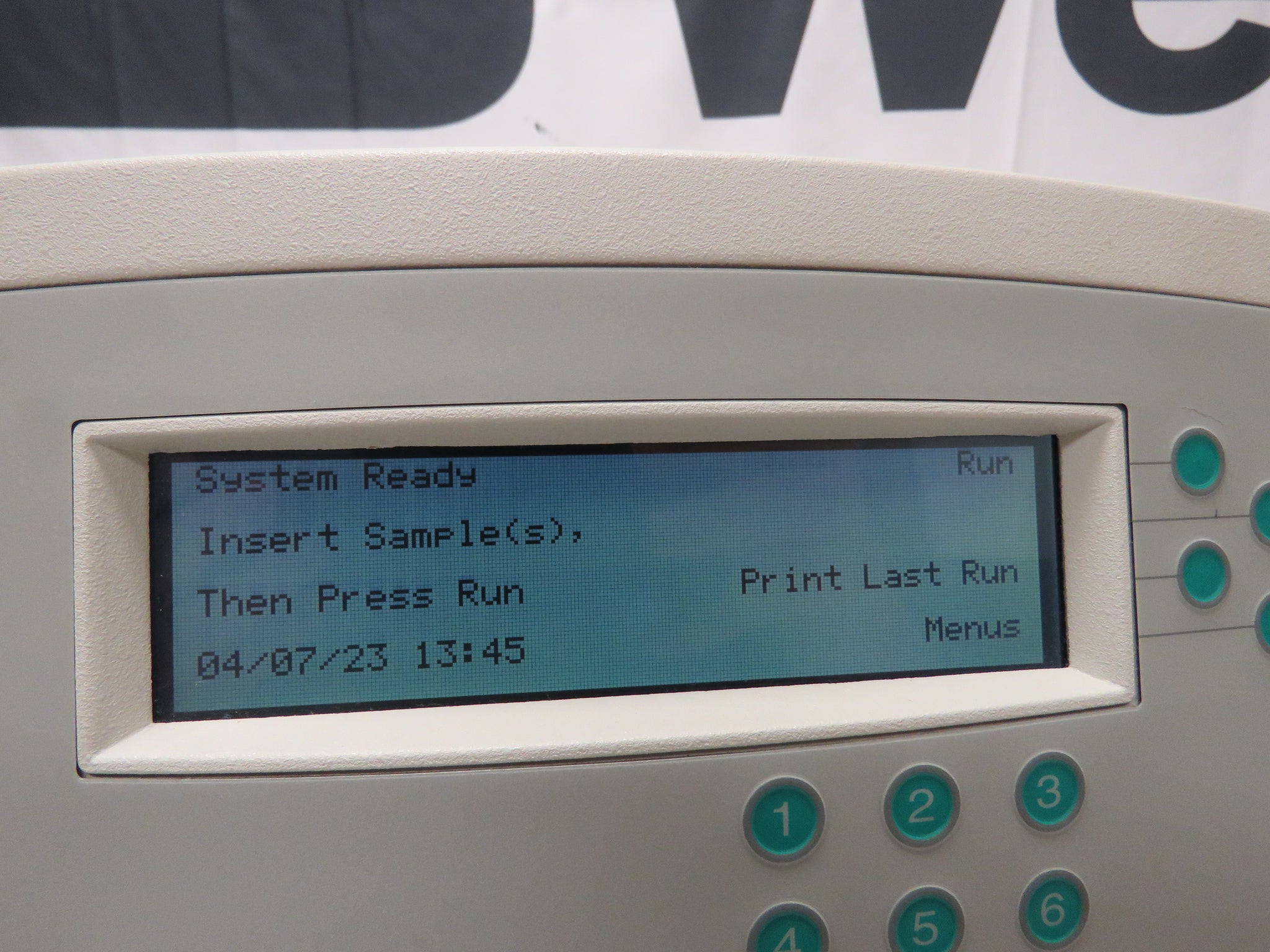

LCD display




Host connection

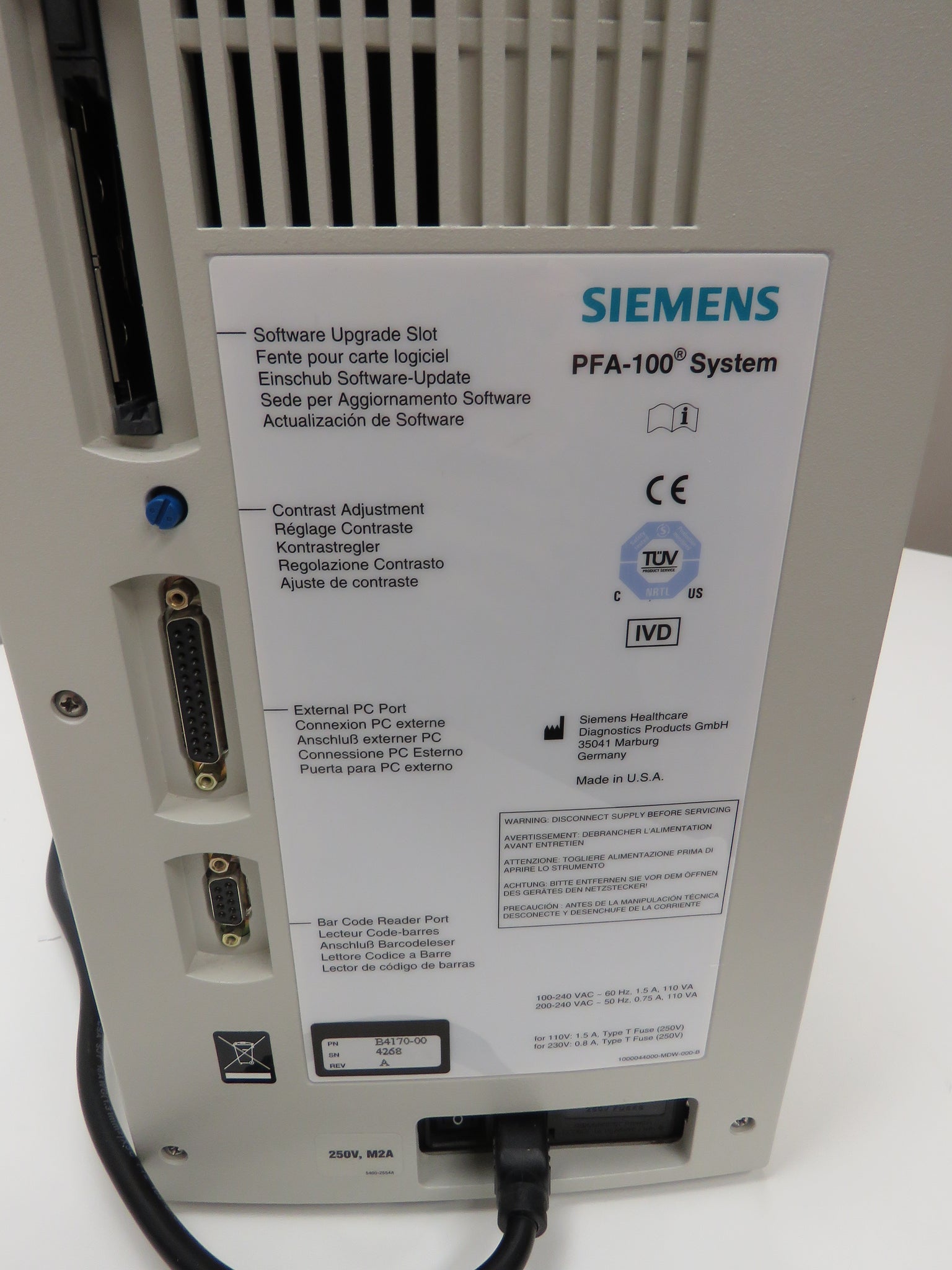

Unidirectional, external PC RS-232 25 pin D port




Patient ID

Maximum 12 numeric characters




Stored control results

Last 50 results




Stored patient results

Last 20 results




Software update
















Built-in dot matrix printer, sound level printing 77 dBA





Ribbon Epson #ERC-22 black or #ERC-09 purple




Printer paper

58 mm wide paper roll









Power Supply





Operating voltage

100 – 130 V / 60 Hz, 200 – 250 V / 50 Hz




Mains frequency

50 – 60 Hz




Current (maximum)

1.5 A @ 100 V, 0.75 A @ 200 V




Power consumption

110 W (maximum)





Sloblo, 250 V, 1.5 A





Main supply voltage should not exceed recommended ranges









Environmental Conditions





Operating temperature

 18 - 29 °C




Non-operating storage

 -29 - 50 °C




Relative humidity

 20 - 90 %




Altitude (maximum)

 2000 meters




Operating humidity

 20 - 90 % RH




Non-operating storage humidity

 0 - 95 % RH




Heat emission

 94 kcal/h (375 BTU/h)















384 mm x 229 mm x 360 mm (W x D x H)





10.9 kg














The PFA-100 System is available for sale in the US and complies to the IVD Directive 98/79/EC.


Excellent functional condition.  Just received from a working lab environment.

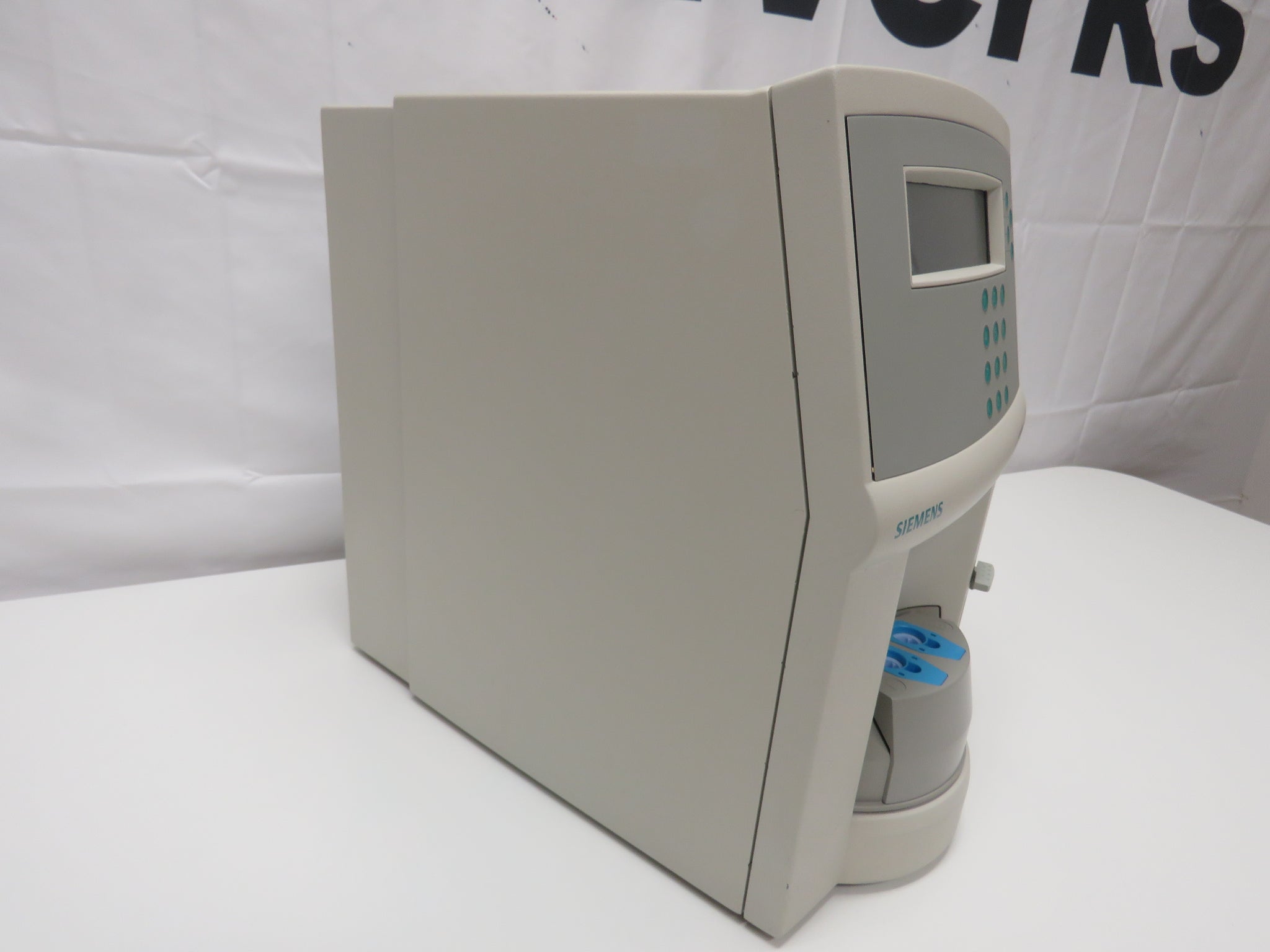

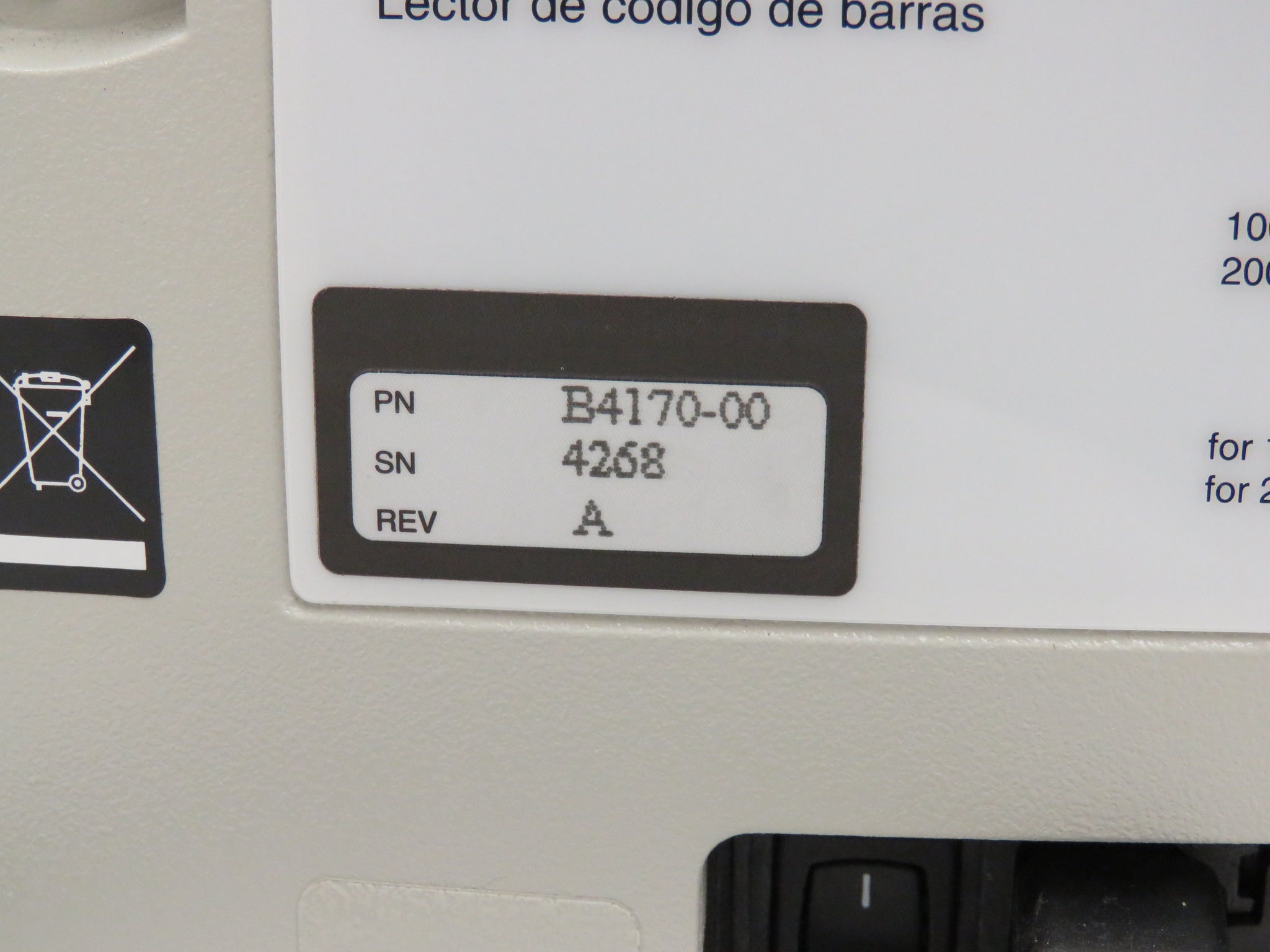

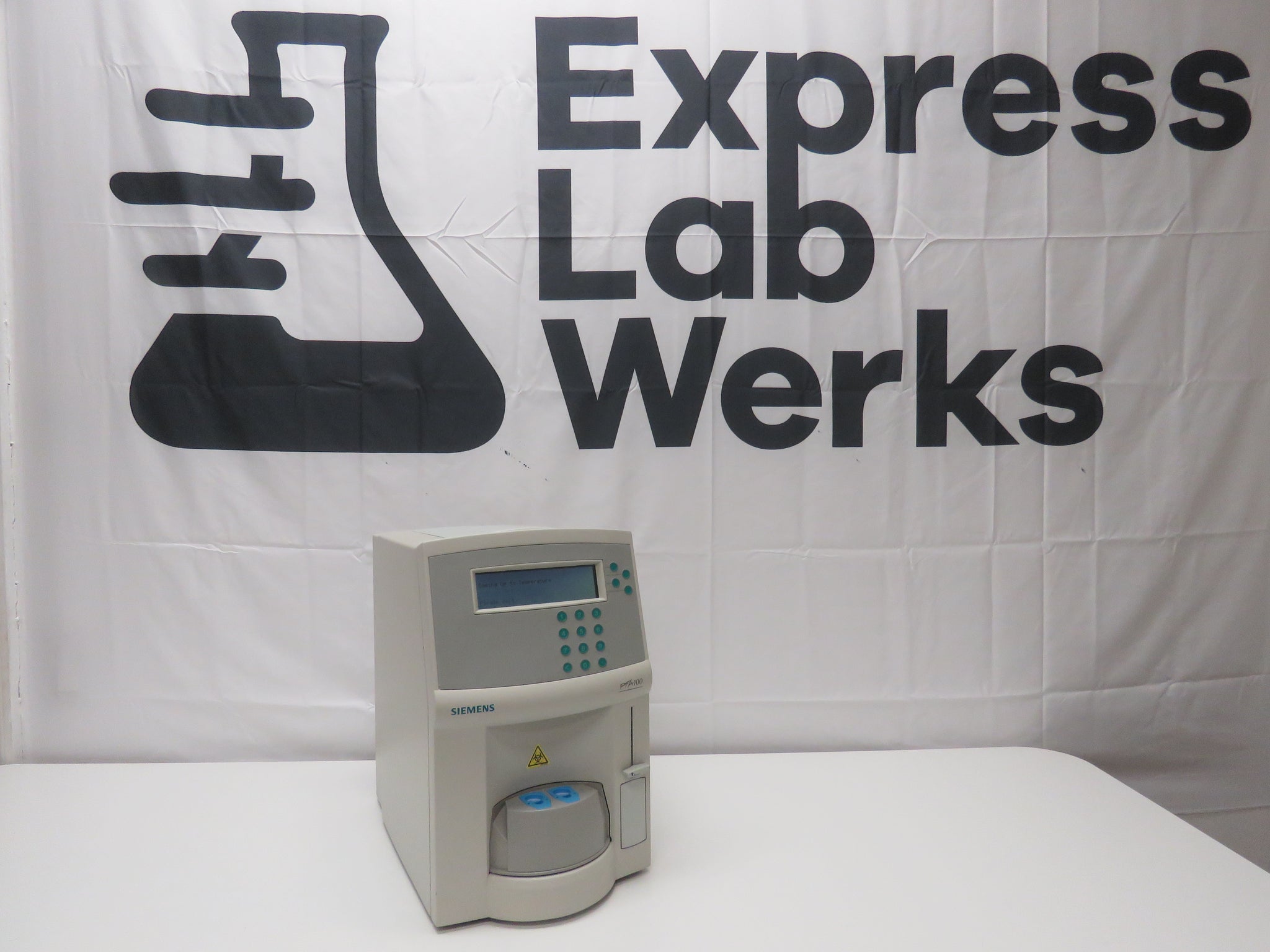

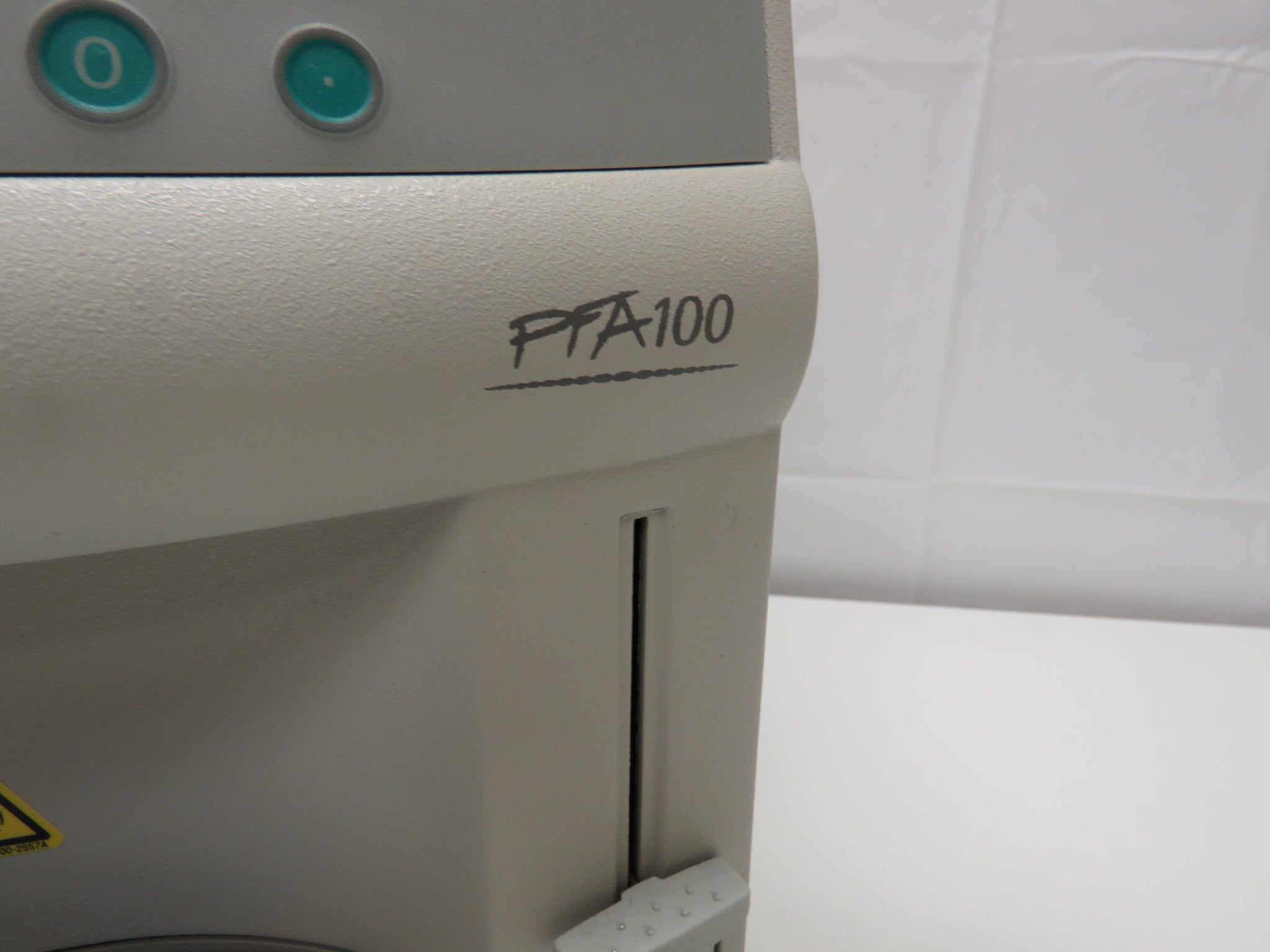

  • Siemens PFA 100 Platelet Function Analyzer p/n B4170-00
  • Power cord
