Thermo Scientific Sorvall Cell Washer CW2 Plus - with Accessories - Great Shape!
Web Information
The Thermo Scientific Sorvall CW2 Plus cell washing systems offer a time-saving wash cycle, easy-to-read digital displays, easy-to-use touchpad controls and standardized, reproducible procedures. Simply insert the sample tubes, select the test parameters and benefit from reliable results in minutes, time after time.
The SORVALL CW2 Plus cell washing system from Thermo Electron is designed to be used in accordance with The American Association of Blood Banks’ guidelines as defined in the most recent edition of the AABB Technical Manual.
This advanced, easy-to-use instrument simplifies work and saves time in washing blood cells for antiglobulin reagent tests such as ABO compatibility, Rh testing, cross matching and the Coombs procedure.
Compliance Assured
The CW2 Plus is the reliable choice for procedures outlined in the AABB Technical Manual, 14th edition. The cell washing system ensures that your protocols are fully compliant with the standards as outlined in “Performance Testing of Automatic Cell Washers”.
Fully Automated for Reproducible Results
The CW2 Plus is fully automated. Standardized,
consistent procedures eliminate the variations that
result from manual protocols, so reliable, reproducible
results are a matter of routine. Automatic alerts
indicate if the saline level is low, and when a run is
complete.
Easy, Reliable Operation
The CW2 Plus offers a time-saving wash cycle,
easy-to-read digital displays, easy-to-use touchpad
controls and standardized, reproducible procedures.
Simply insert the sample tubes, select the test
parameters, and benefit from reliable results in
minutes, time after time.
Compact and Durable
With its small footprint, the CW2 Plus fits neatly on any
laboratory bench. Its low-maintenance design ensures
years of trouble-free use: bearings have sealed-in

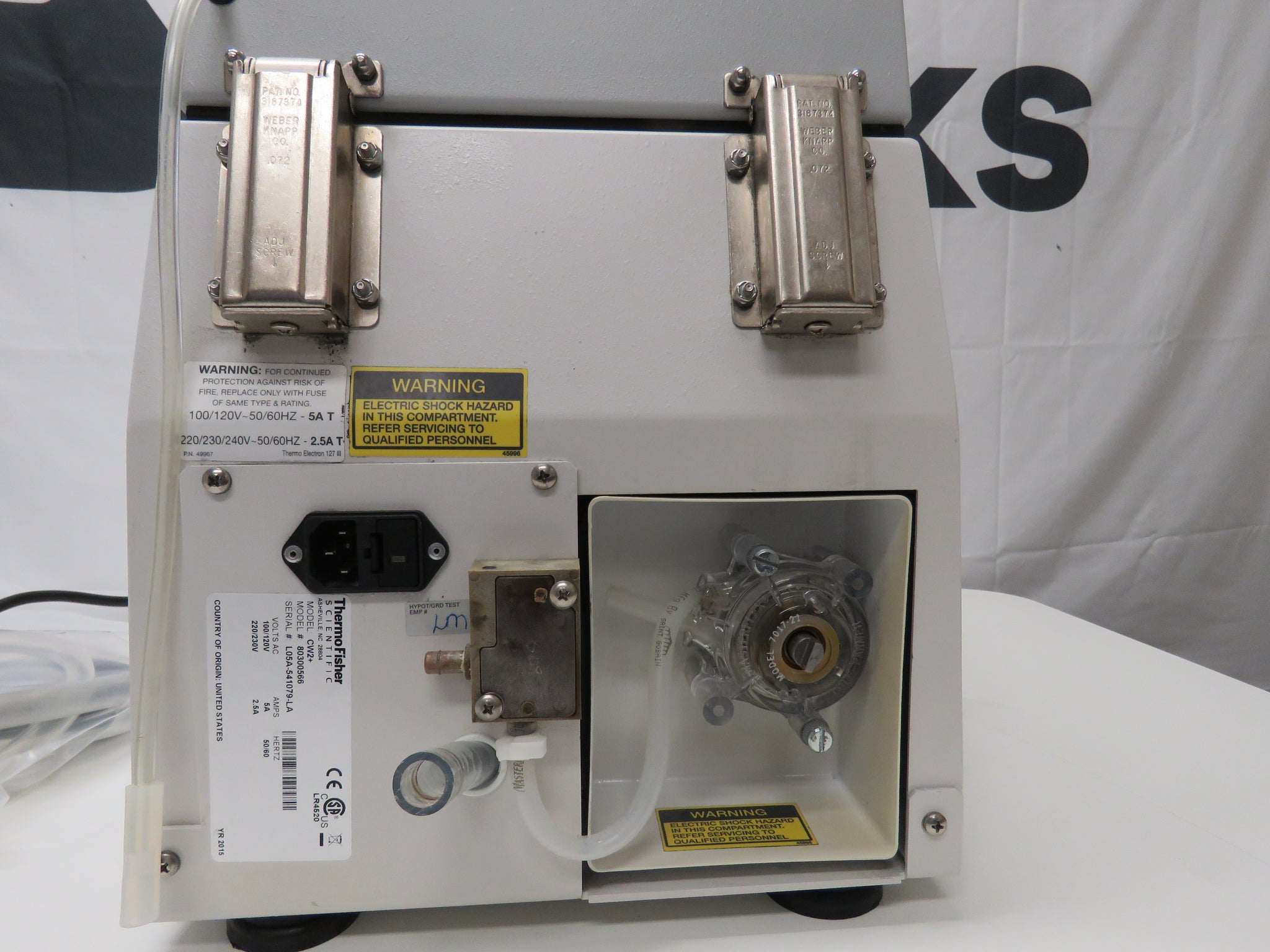

lubrication, the pump tubing is easily changed, the
motor is brushless, and the entire housing is made
from high-impact, corrosion-free plastic.
Key Features
• Automatic operation
• Single distributor for standard 10 mm x 75 mm
or 12 mm x 75 mm tubes
• Saline level detection/alarm system
• Microprocessor control and digital display of time
and wash cycles
• System steps easily verified
• Fast, automatic wash cycle
• Fast acceleration and deceleration
• Agitates automatically after each decant (cycle is
also manually operable)
• Flexible, single-speed manual mode for general
pelleting applications
• Rotor also functions as incubator rack
• Compact and lightweight
• Quiet, maintenance-free brushless drive
• Lifetime lubrication of all moving parts
• Easy-to-clean, high-impact, corrosion-
resistant housing
SORVALL CW2 Plus Blood Cell Washing System
Specifications

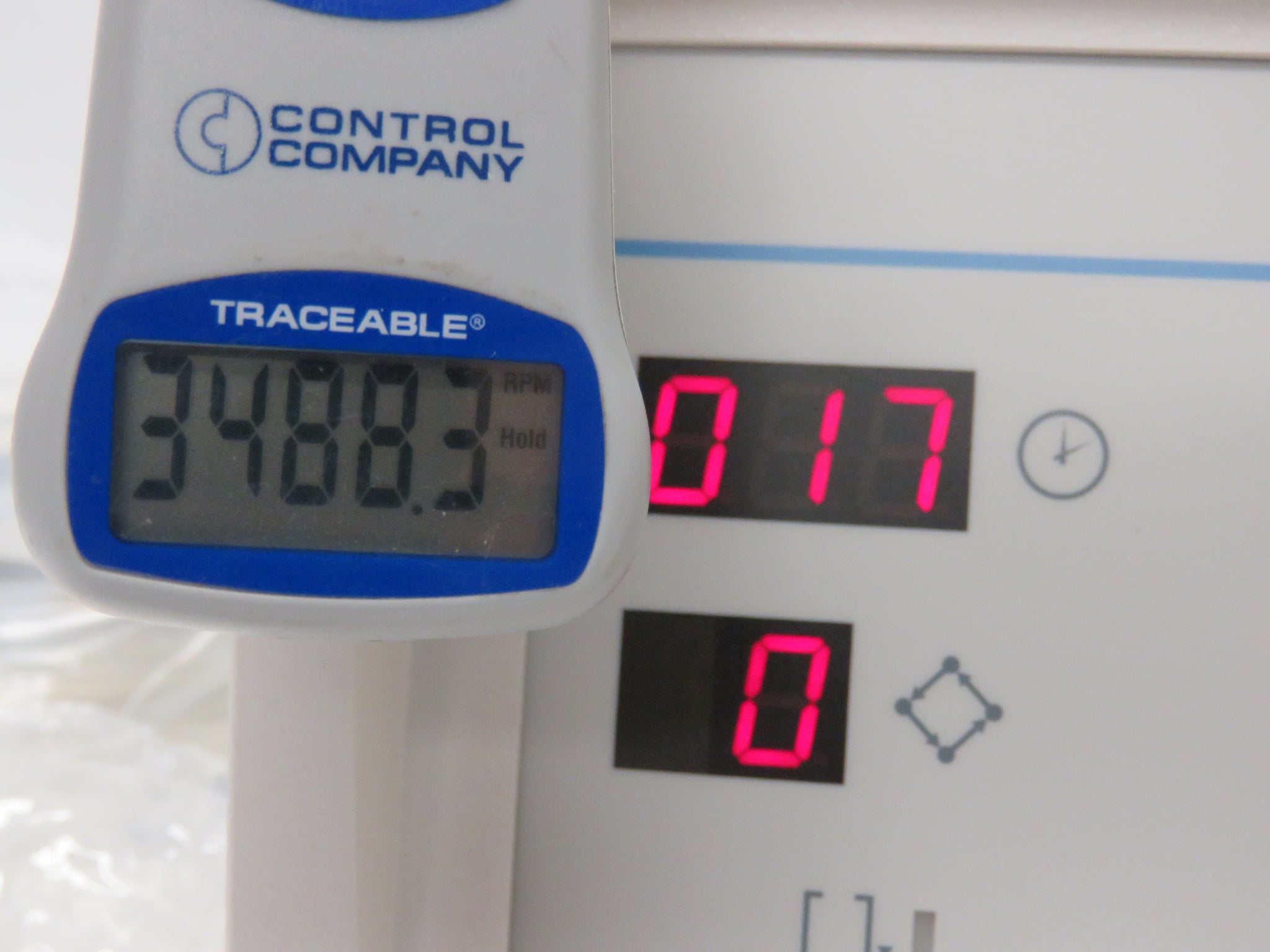

Maximum speed (rpm) 3,550 at 60 Hz
Fill/decant speed (rpm) 700 at 60 Hz (580 at 50 Hz)
Maximum RCF (x g) 1,200
Decant RCF (x g) 40
Maximum capacity (12) 12 mm x 75 mm or 10 mm x 75 mm tubes
Operating modes
Automatic 80 second wash cycle
Manual High speed for time selected
Check Stops at end of each step in cycle to enable procedure verification
Controls
Mode Select operating mode (auto or manual)
Cycle Select 1, 2, 3 or 4 wash cycles in automatic mode
Time Select centrifugation time in manual mode (999 seconds)
Command Select operating function: start, stop, check, manual, agitate, alarm on/off, low saline
Drive 2-speed brushless induction motor; dynamic braking in automatic mode
Construction

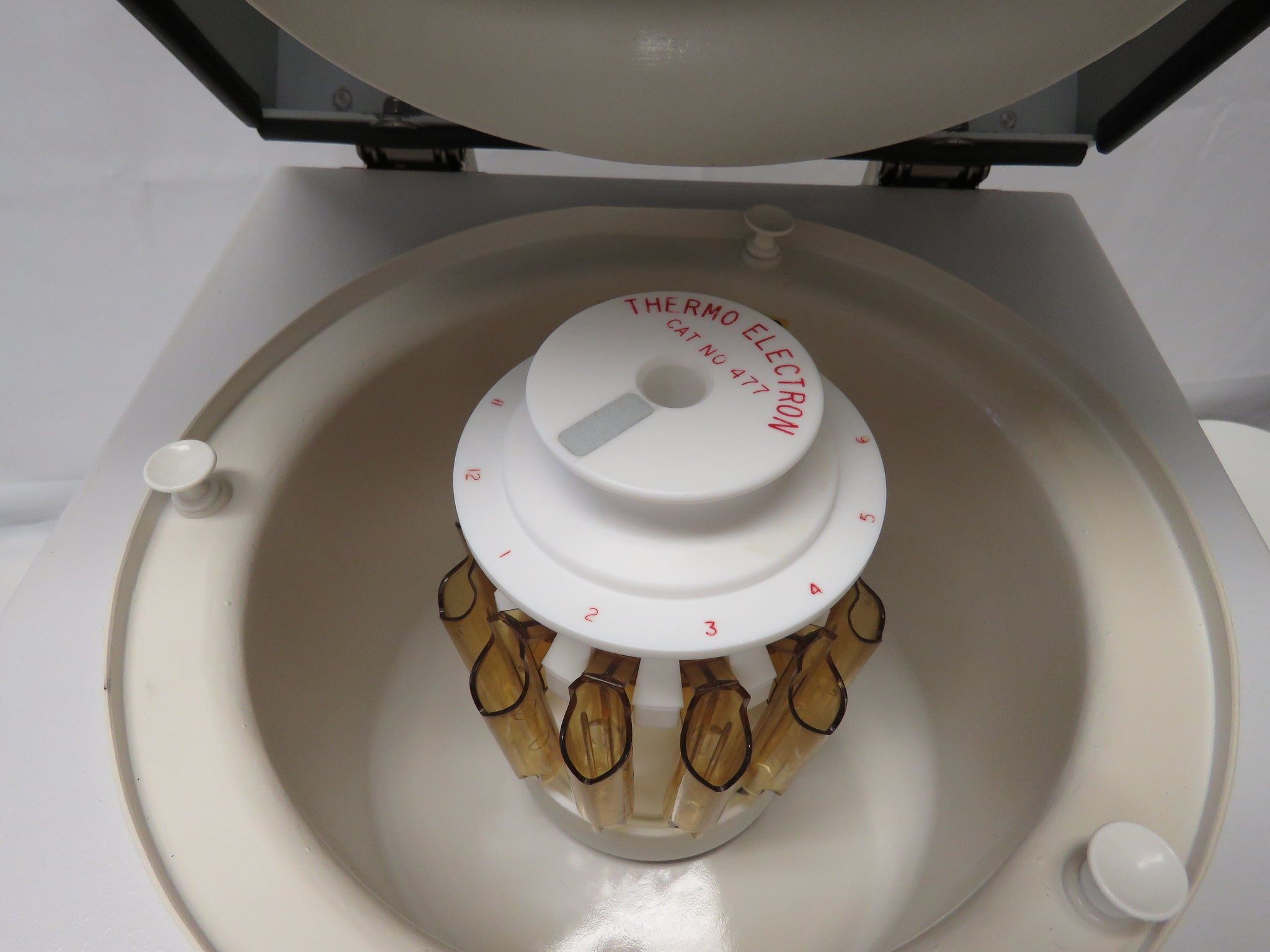

Rotor Polypropylene with replaceable tube holders

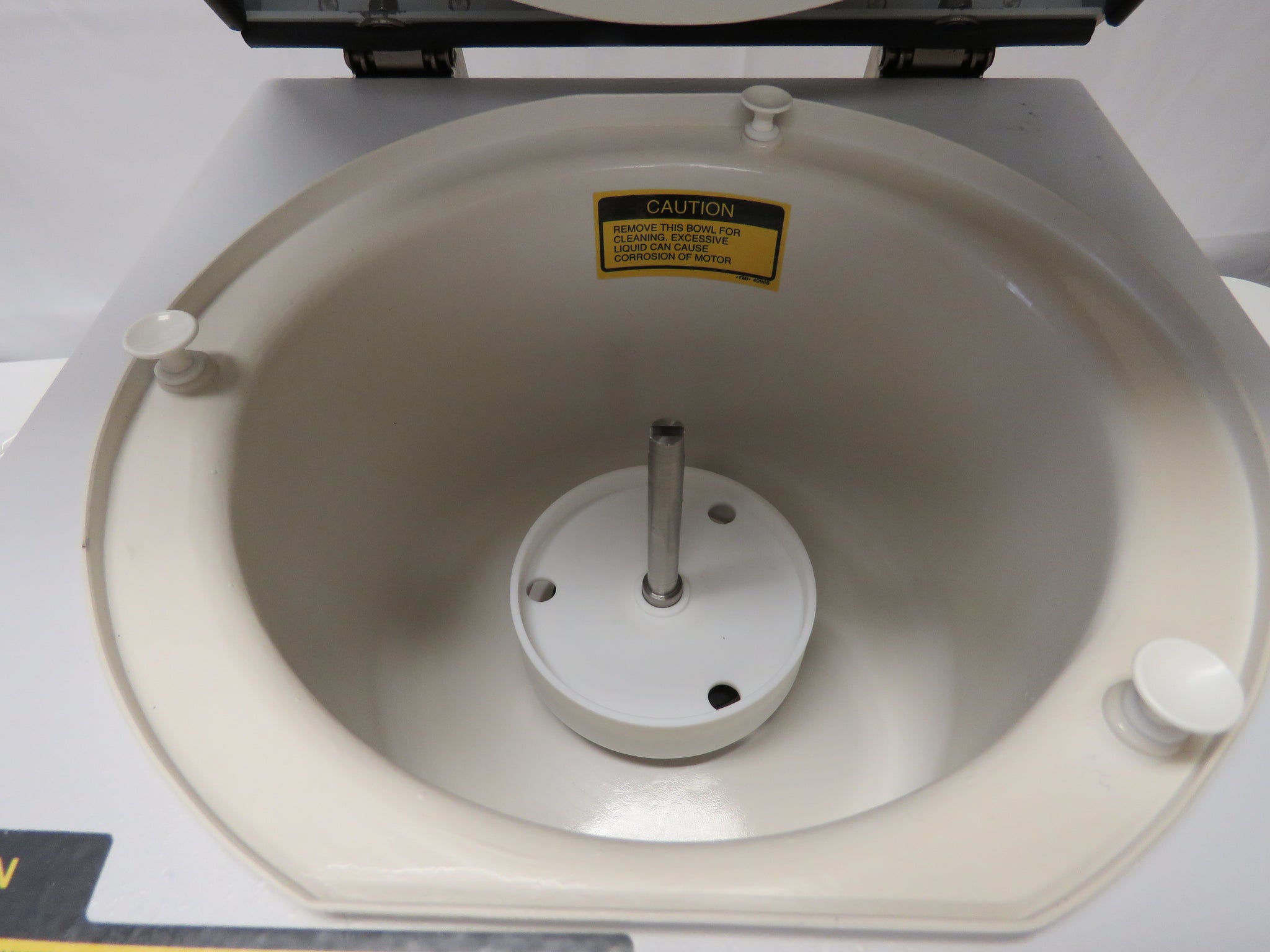

Collection bowl Polypropylene
Certification CSA NRTL, CSA and CE certified
Safety and effectiveness 510(k) number BK820020
Dimensions (H x D x W) mm (inches) 627 x 434 x 320 (24.7 x 17.1 x 12.6) lid open
386 x 434 x 320 (15.2 x 17.1 x 12.6) lid closed
Weight kg (lb) 17.8 (39.3) crated
15.4 (34) uncrated
Condition
Unit is in excellent functional condition.
Watch a short video below of this unit in operation:
ExpressLabWerks.com Thermo Scientific Sorvall CW2 Plus Cell Washer
Video will open in a new window
Using the eBay App? Paste link into a browser window:

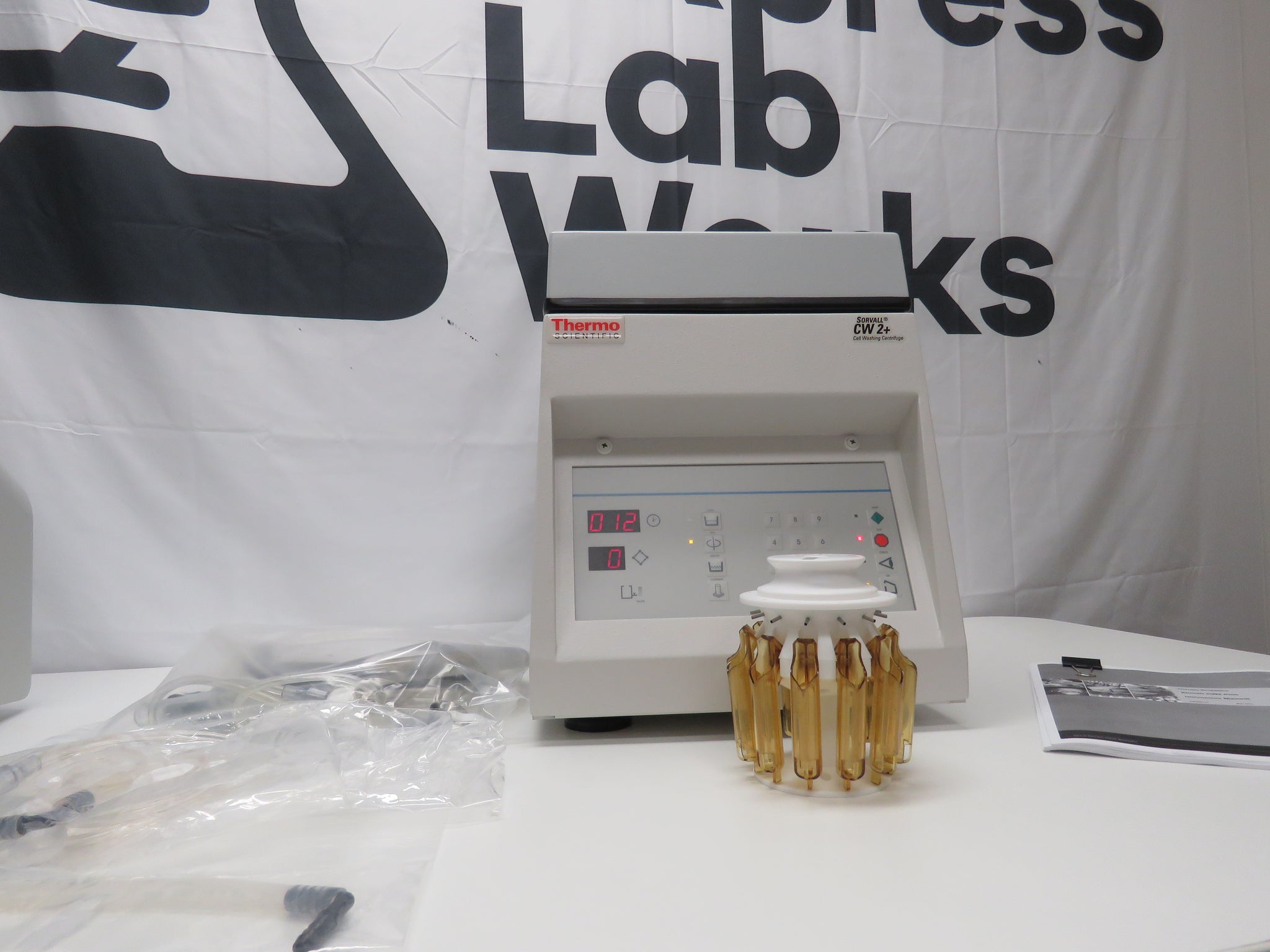

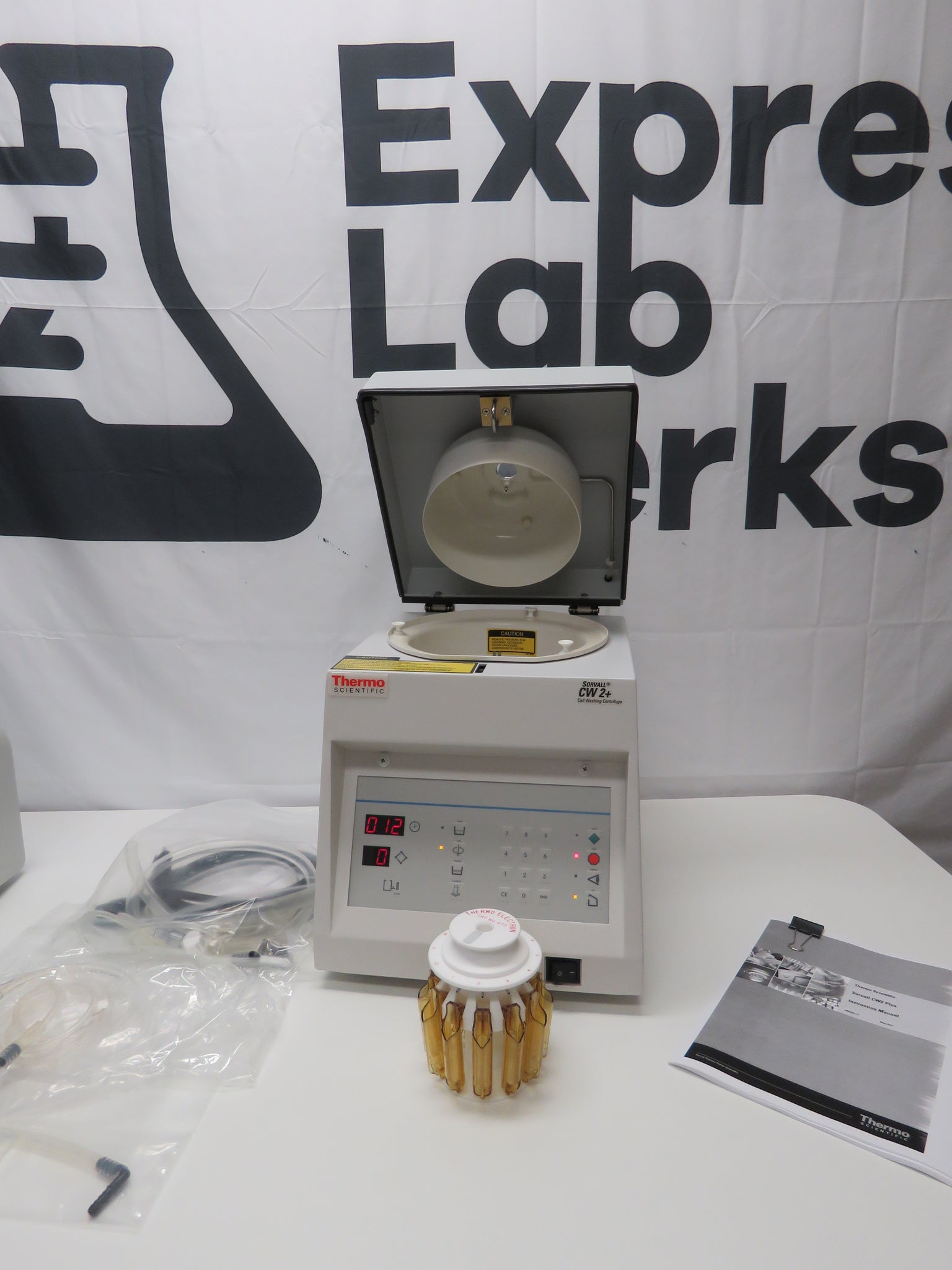

Includes

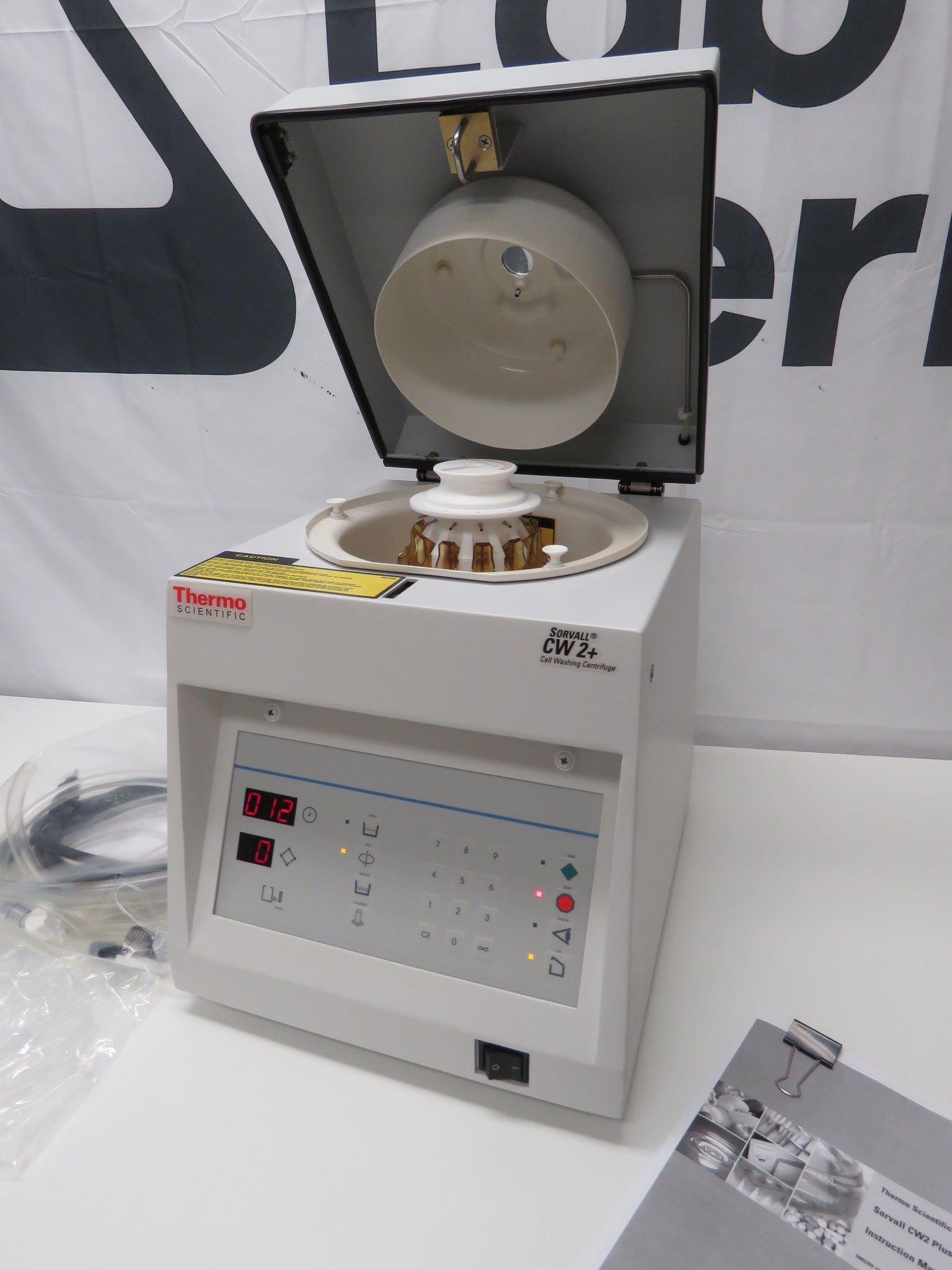

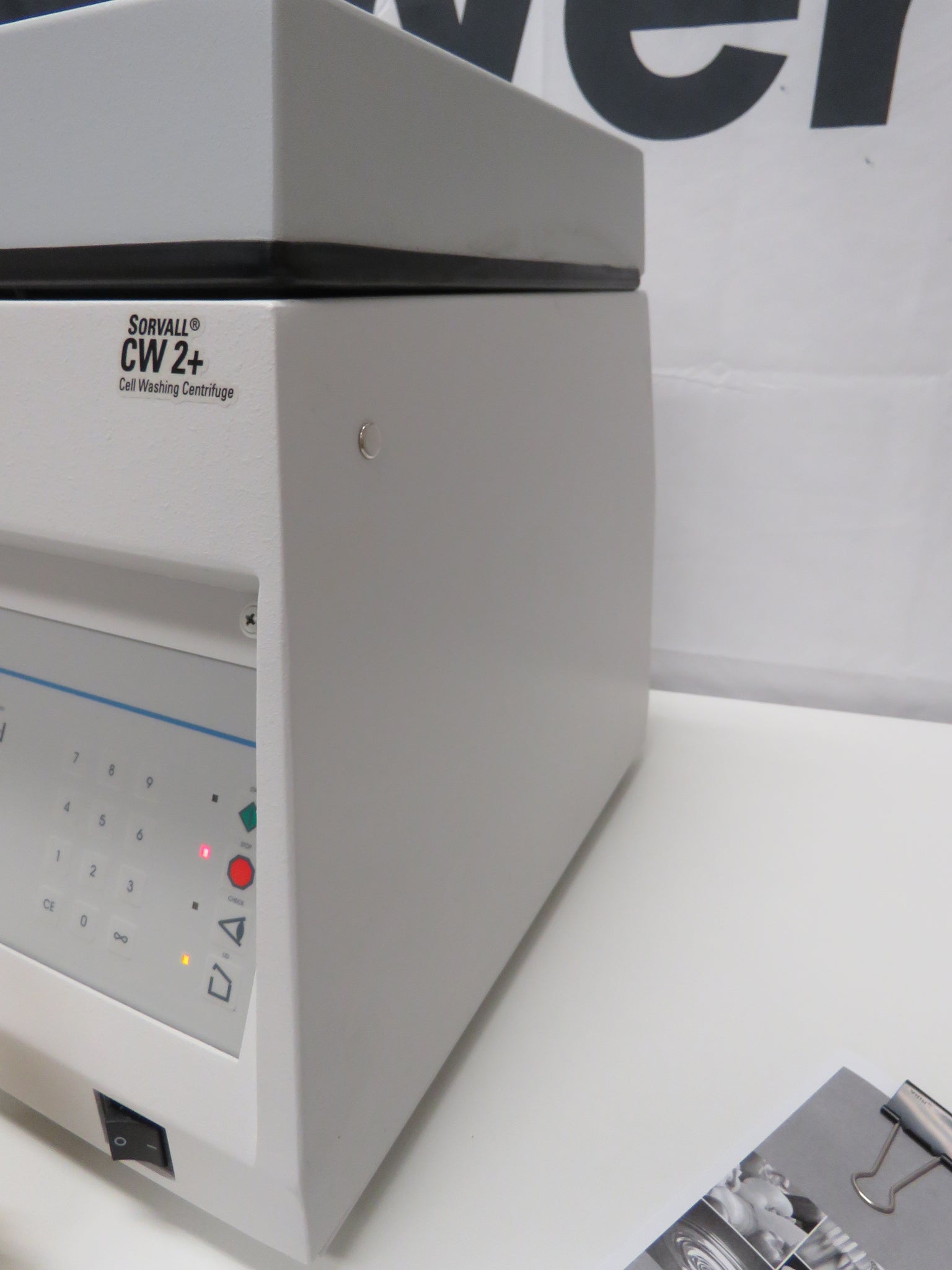

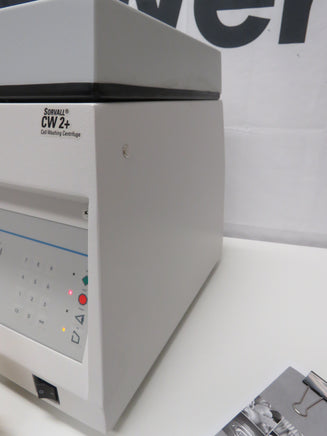

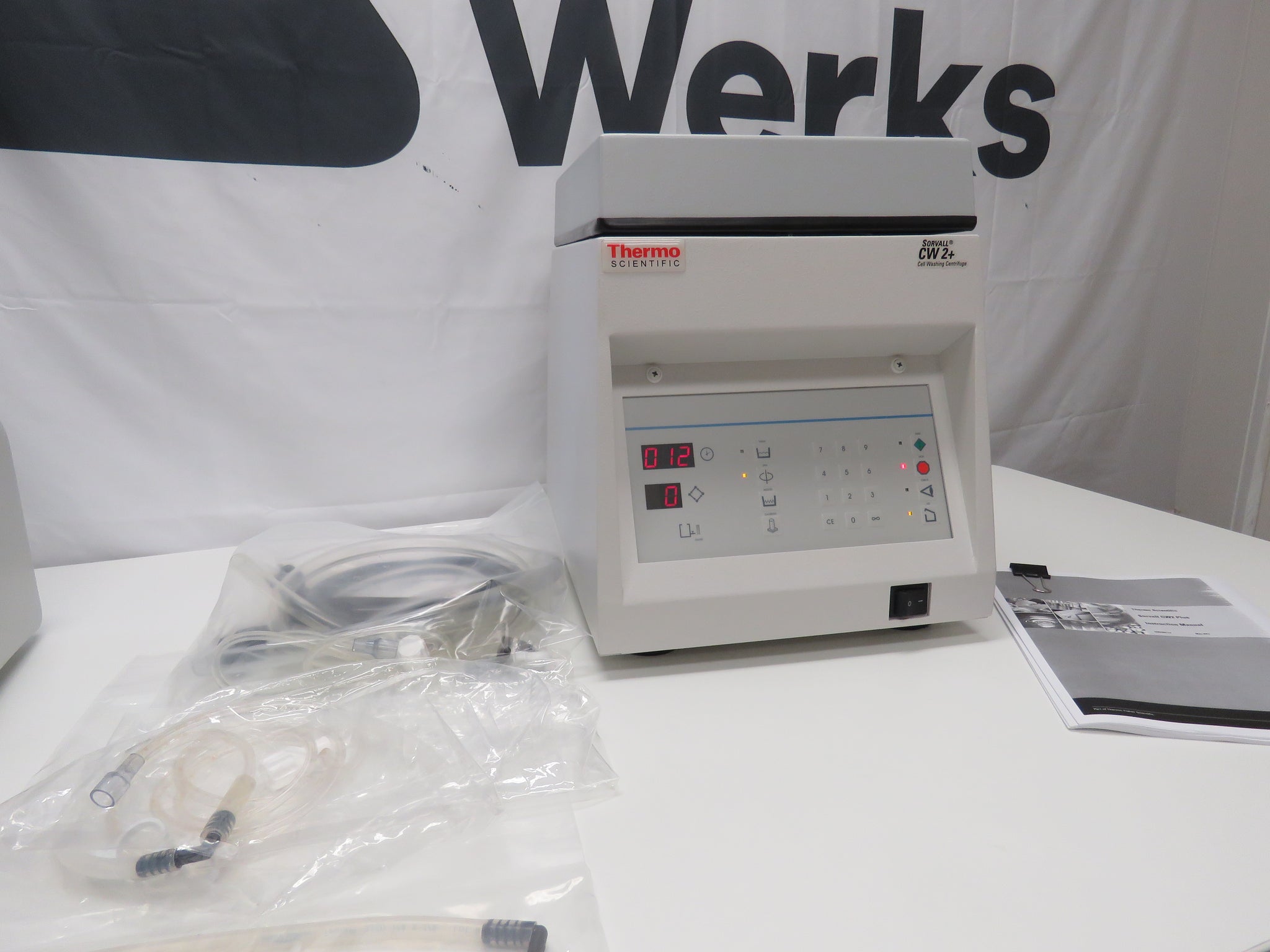

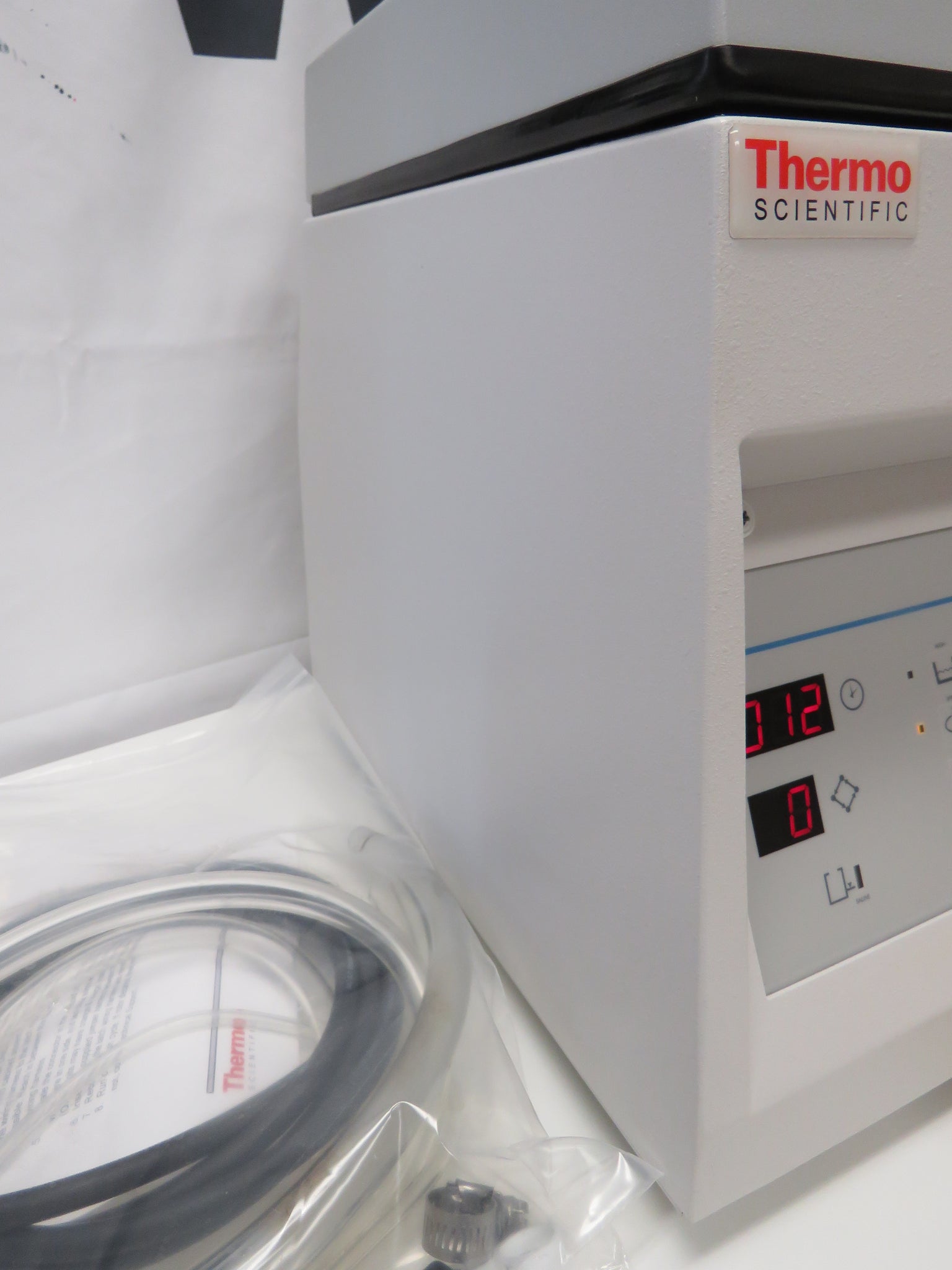

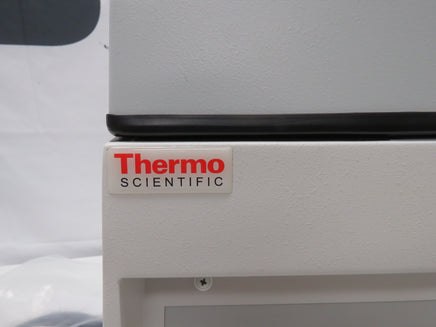

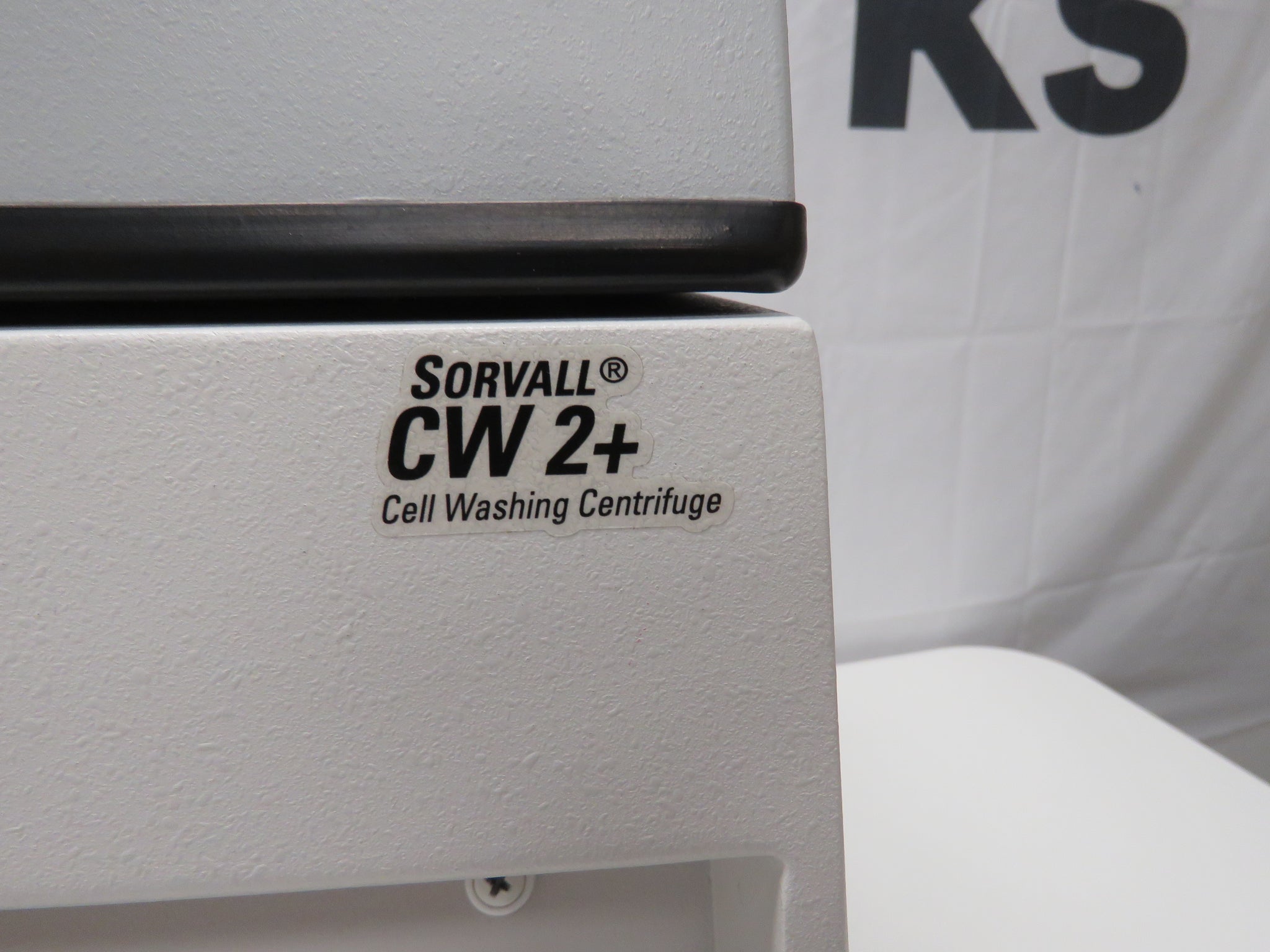

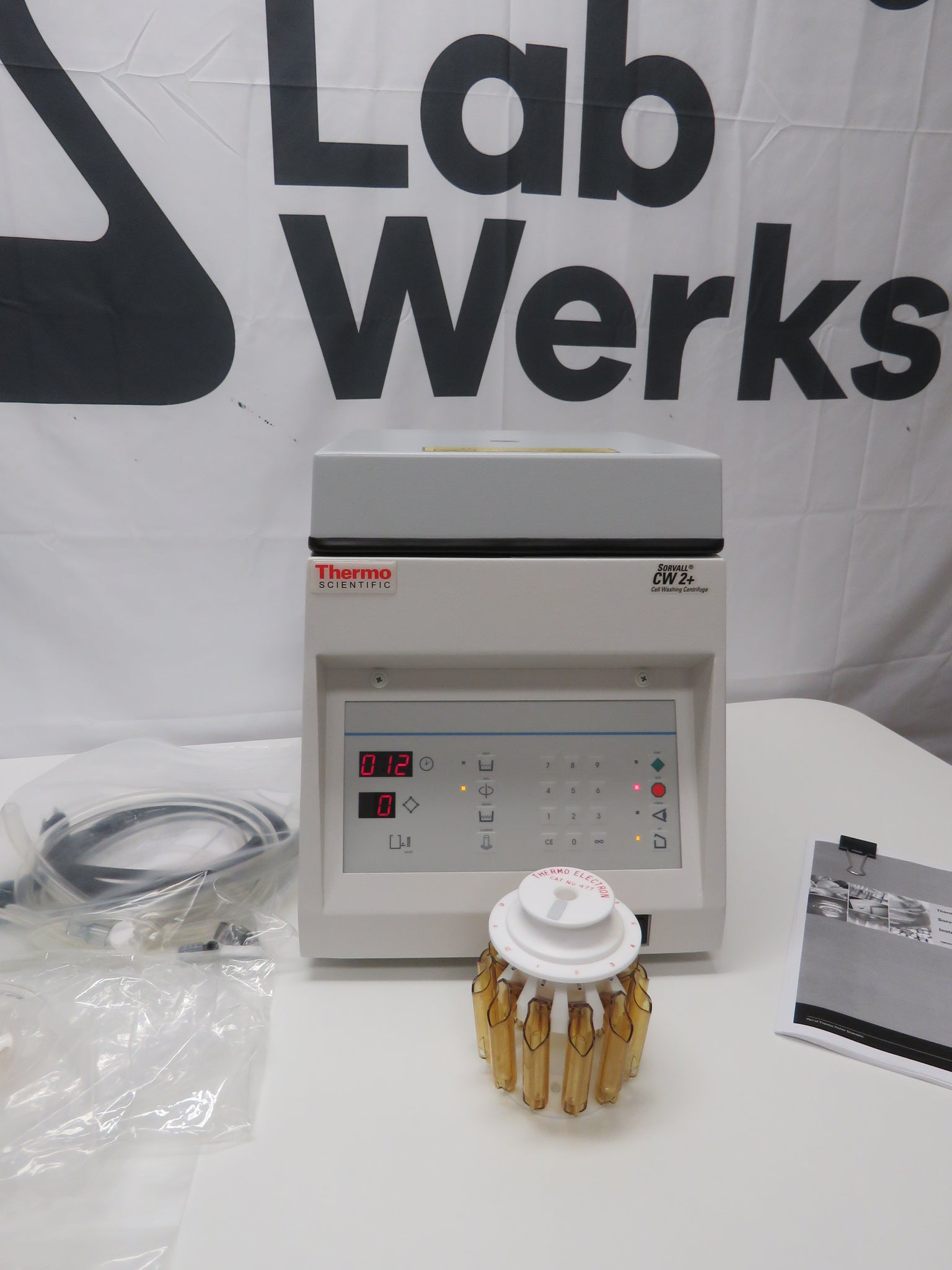

- Thermo Scientific Sorvall Cell Washer CW2 Plus

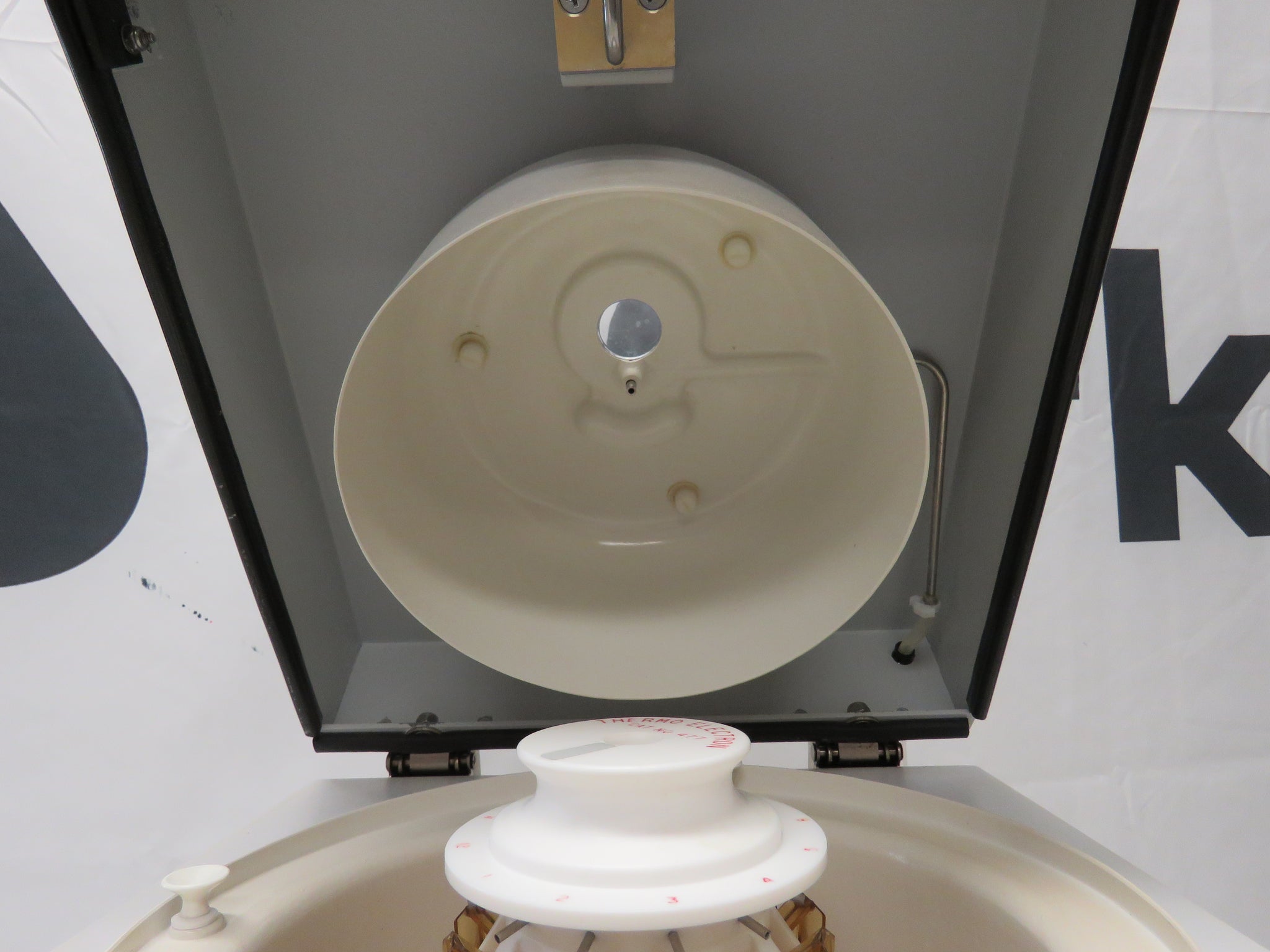

- Polypropylene Rotor and Collection bowl

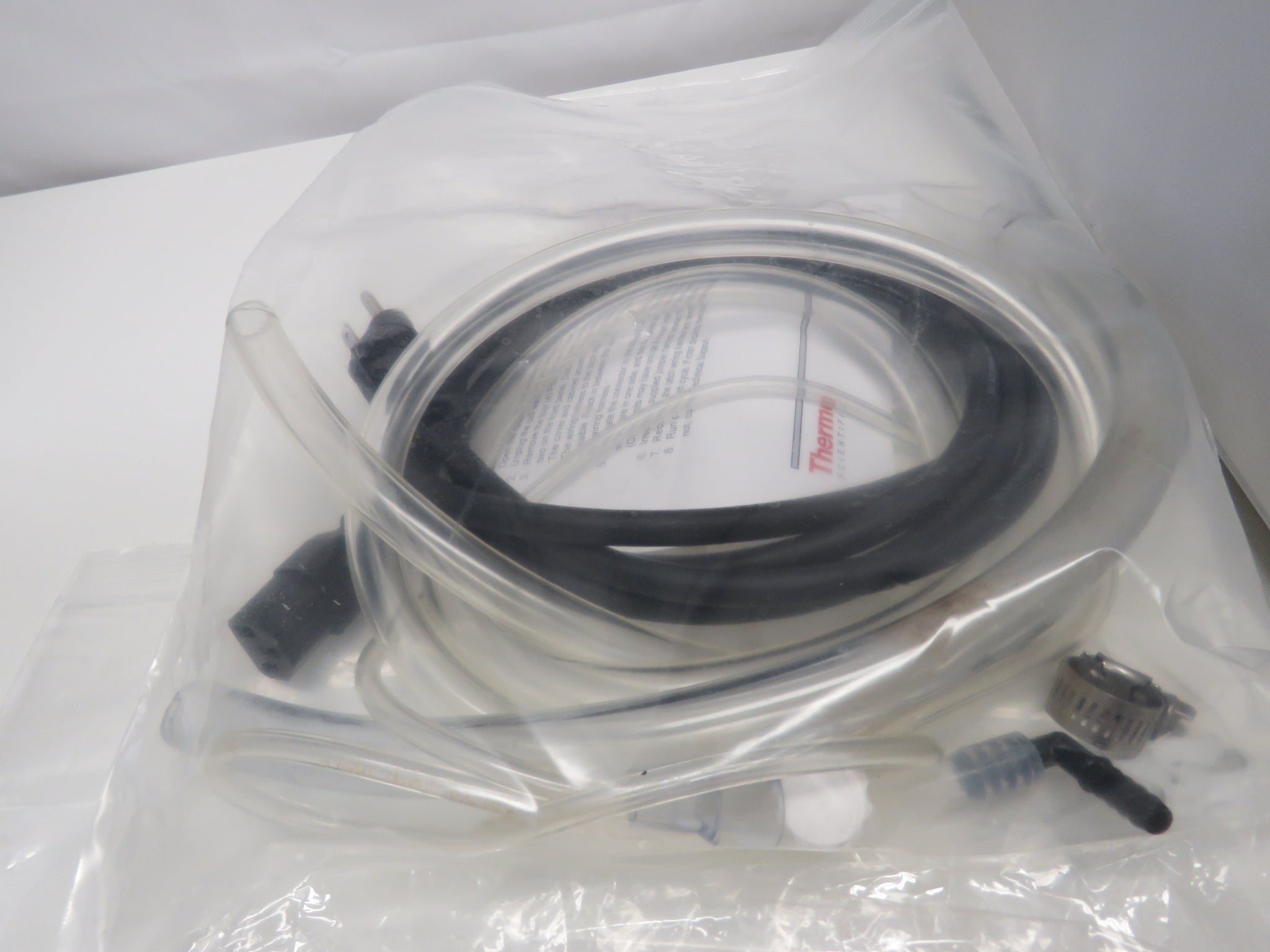

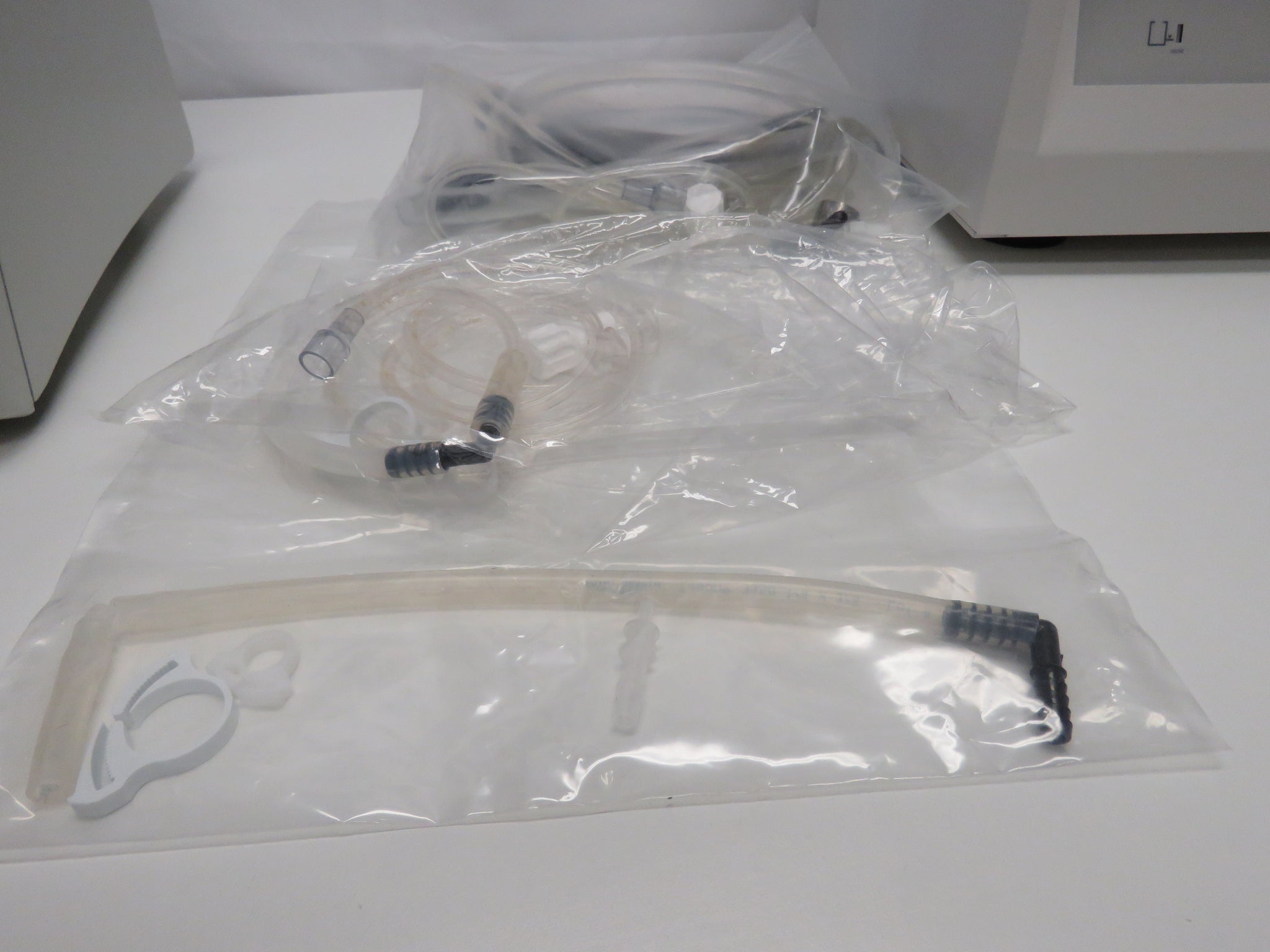

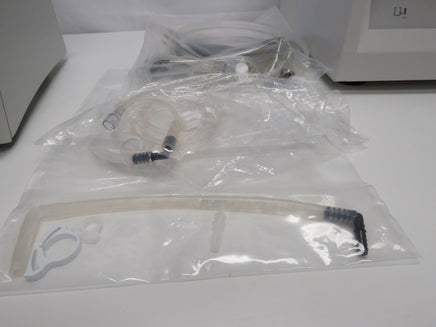

- Hose kit
- Operator manual
- Power cord
BBOR
Warranty
30 Day warranty. We pledge to offer the best service and warranty to all of our customers! We are extending a 30 Day warranty on this item. This is our way of saying thank you for allowing us to serve you.
Certification
This is a genuine product from this manufacturer.
Disclaimer
The sale of this item may be subject to regulation by the U.S. Food and Drug Administration and state and local regulatory agencies. the item is subject to FDA regulation, we will verify your status as an authorized purchaser of this item before shipping of the item."
Regardless of the origin of the equipment, documentation provided or identification appearing upon the equipment, the equipment described and offered here is in no way certified for, recommended for, or offered for any specific use. The purchaser agrees that the seller shall not be held responsible or liable for any injuries or damages, whether incidental or consequential, associated in any way with the equipment. The purchaser, by bidding on this equipment, indicates their acknowledgment of, and agreement to the terms of this disclaimer. it is the purchaser's responsibility to have the item inspected and certified by a qualified professional before use!
