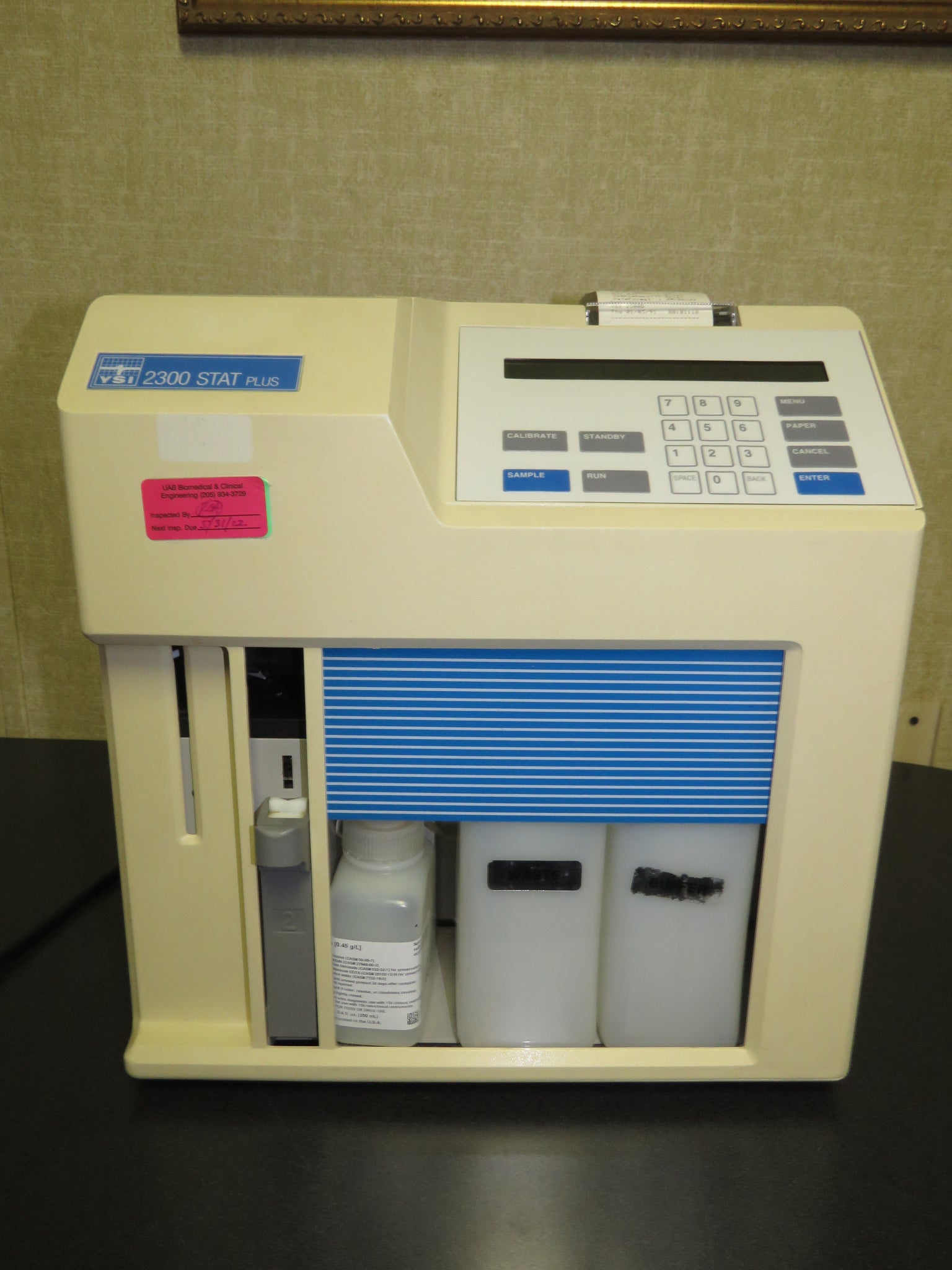

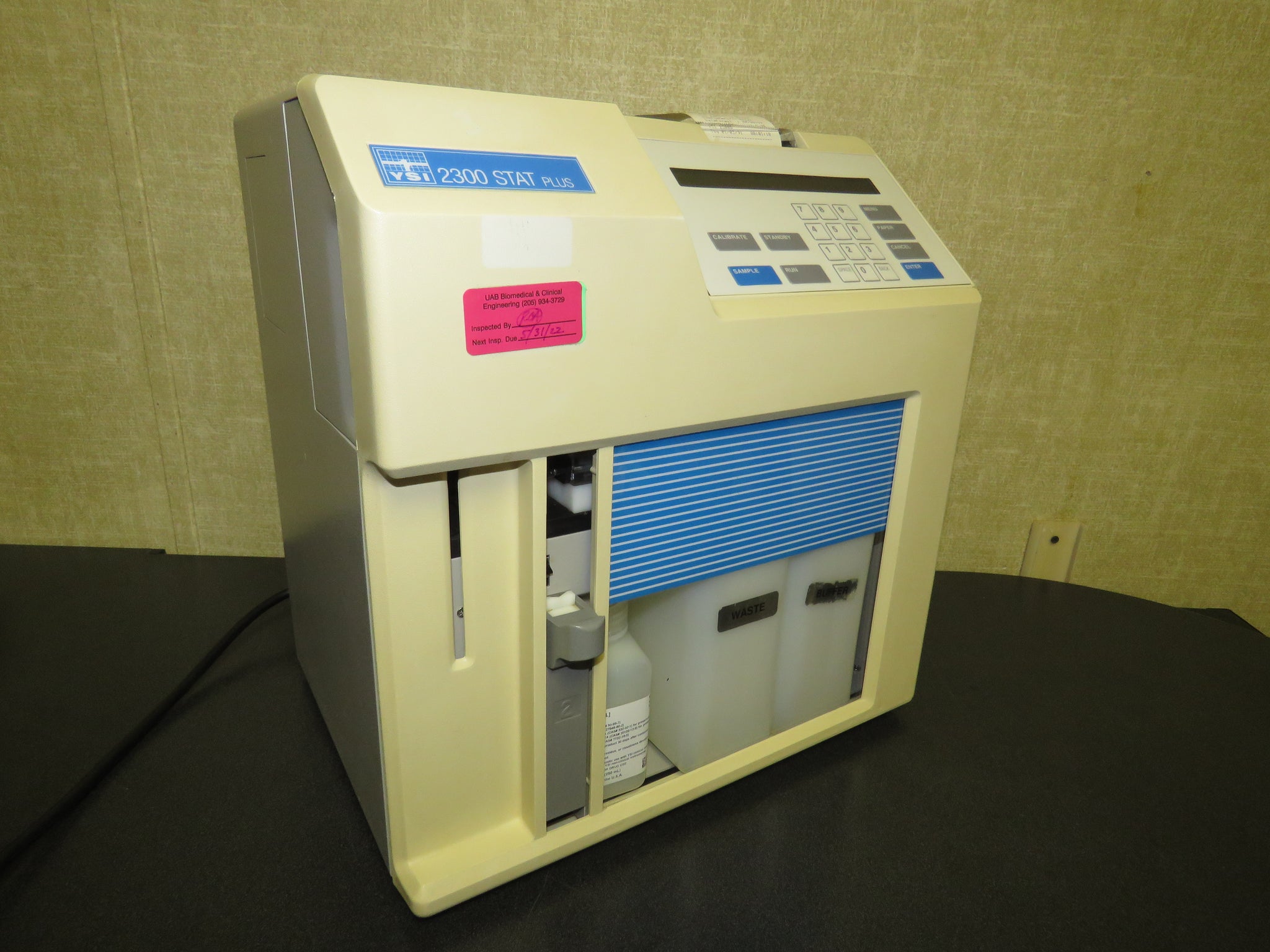

YSI 2300 Stat Plus D Glucose L-Lactate Chemistry Analyzer



Sorry, this item is out of stock

Web Information

YSI 2300 STAT Plus Glucose Lactate Analyzer

The YSI 2300 STAT Plus is the only dedicated dual-channel glucose and lactate analyzer on the market, providing exceptional speed, performance, and ease of use. This analyzer measures glucose in blood, plasma, and serum and lactate in blood, plasma, and cerebrospinal fluid. The YSI 2300 STAT Plus lowers cost per test with no need to renew enzymes, saves time through whole blood capability with no need to spin blood first, and allows batch runs up to 24 samples. This system also features interference rejection and a broad measurement range, which eliminates the need for sample dilution.

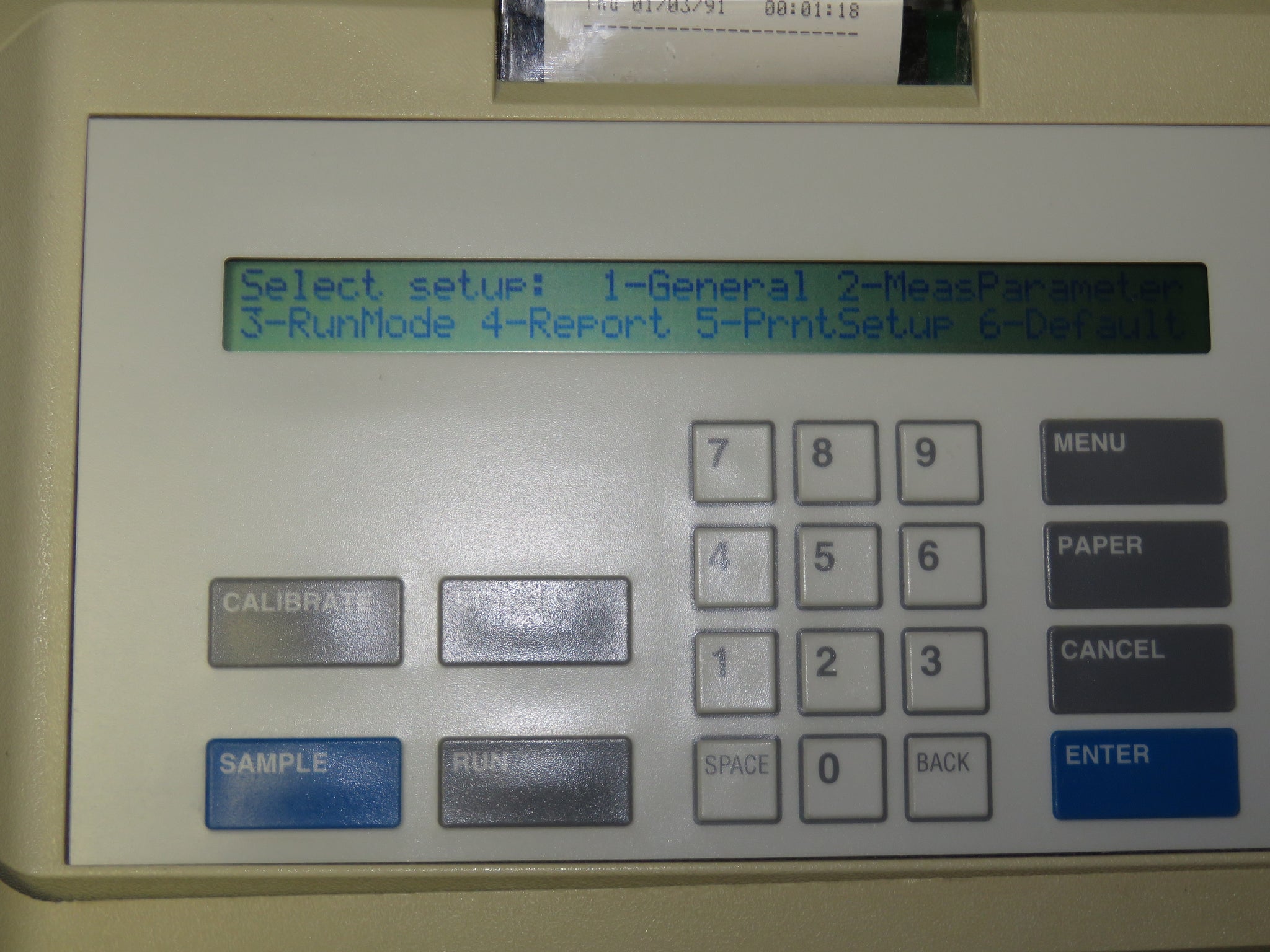

Standard features include: microprocessor control; menu-driven setup with battery backed memory; alpha-numeric liquid crystal display; built-in data print; RS-232 serial port installed; turntable interface port installed; complete diagnostic software; automatic calibration; programmable calibration protocol; selectable performance modes; selectable concentration units of mmol/L, mg/dL, mg/L; direct measurement of glucose in whole blood, plasma, and serum; direct measurement of lactate in whole blood, plasma, and CSF; sample aspiration of only 25 microliters; sample tube holder for "hands off" sampling; manual sampling station for aspirating small volumes; and conversion of whole blood to plasma glucose values (user enters hematocrit value at keypad).

The YSI 2300 STAT Plus is ideal for use in the following: STAT labs; diabetes, human performance, and exercise and athlete evaluation; diabetes and endocrinology, general metabolic, and veterinary medicine research; handheld monitor development; cardiac and pulmonary rehabilitation; neonatology and pediatrics; and pharmaceutical quality assurance.

YSI 2300 STAT Plus Glucose Lactate Analyzer Specifications

Sample Size

25 uL (aspirated volume)

Response Time

Normal Mode: Display and print results in 65 seconds. Sample to sample interval is 100 Seconds

Screen Mode: Display and print results in 45 seconds. Sample to sample interval is 70 seconds

Measurement Range

Normal Mode:

Glucose: to 900 mg/dL (9000 mg/L, 50.0 mmol/L)

Lactate: to 30.0 mmol/L (267 mg/dL, 2670 mg/L)

Screen Mode:

Glucose: to 500 mg/dL (5000 mg/L, 27.8 mmol/L)

Lactate: to 15.0 mmol/L (134 mg/dL, 1335 mg/L)


Glucose: ±2% of reading or 2.5 mg/dL

Lactate: ±2% of reading or 0.1 mmol/L


Glucose: 1 mg/dL (1 mg/L, 0.1 mmol/L)

Lactate: 0.1 mmol/L (1 mg/L, 1 mg/dL)

Membrane Working Life (typical)

Glucose: 21 days

Lactate: 14 days

Operating Temperature

15 to 35 ° Celcius


10-90% non-condensing


110-120 VAC or 220-240 VAC, 50-60 Hz

Dimensions/ Weight

25.4 x 35.6 x 35.6 cm/ 11.4 kg

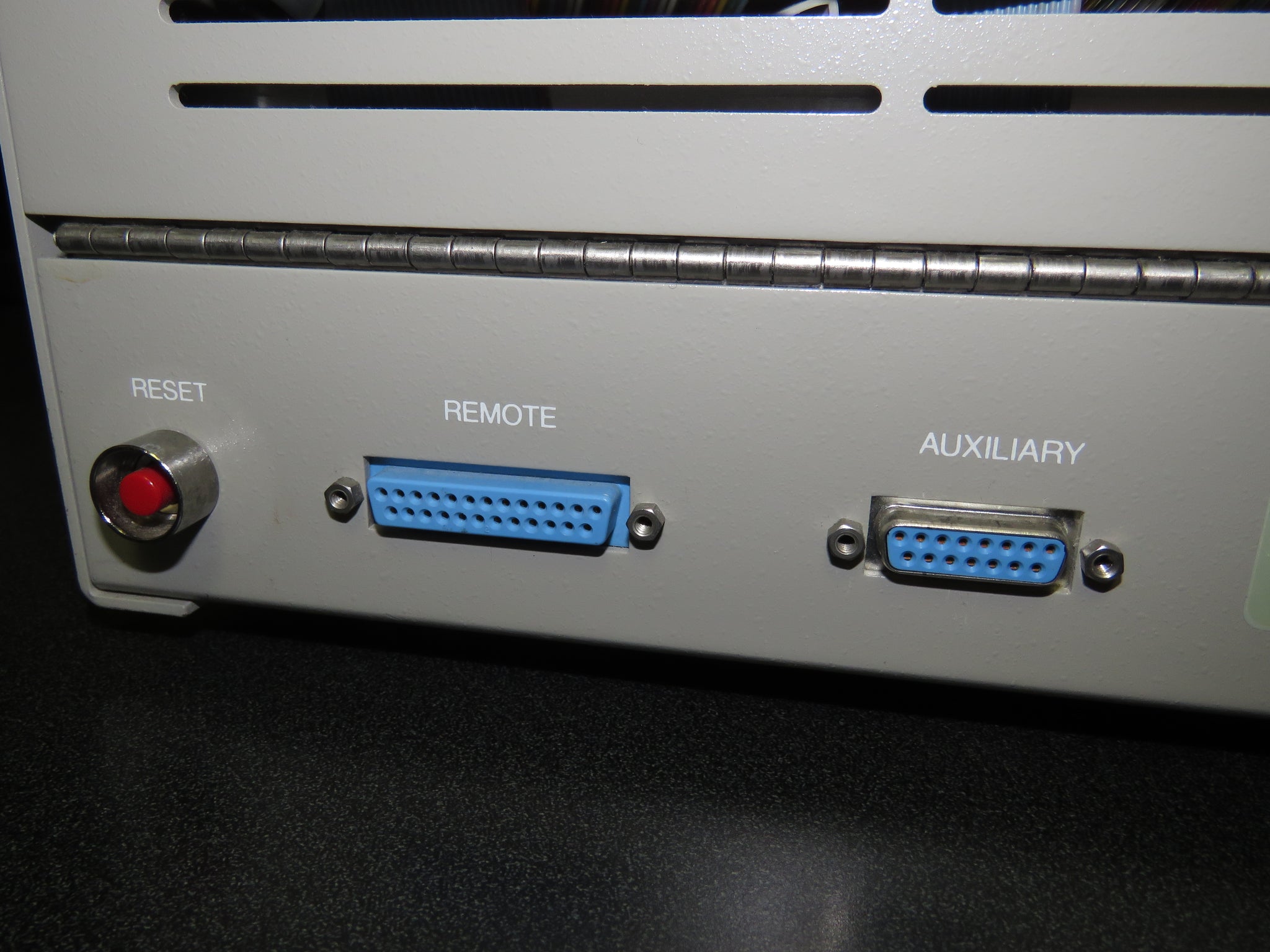

Serial port for RS 232C

Optional bar code reader

Regulatory Compliance

CE, FDA Registered Class II, CSA


Received from a working laboratory environment.  Sold with warranty.

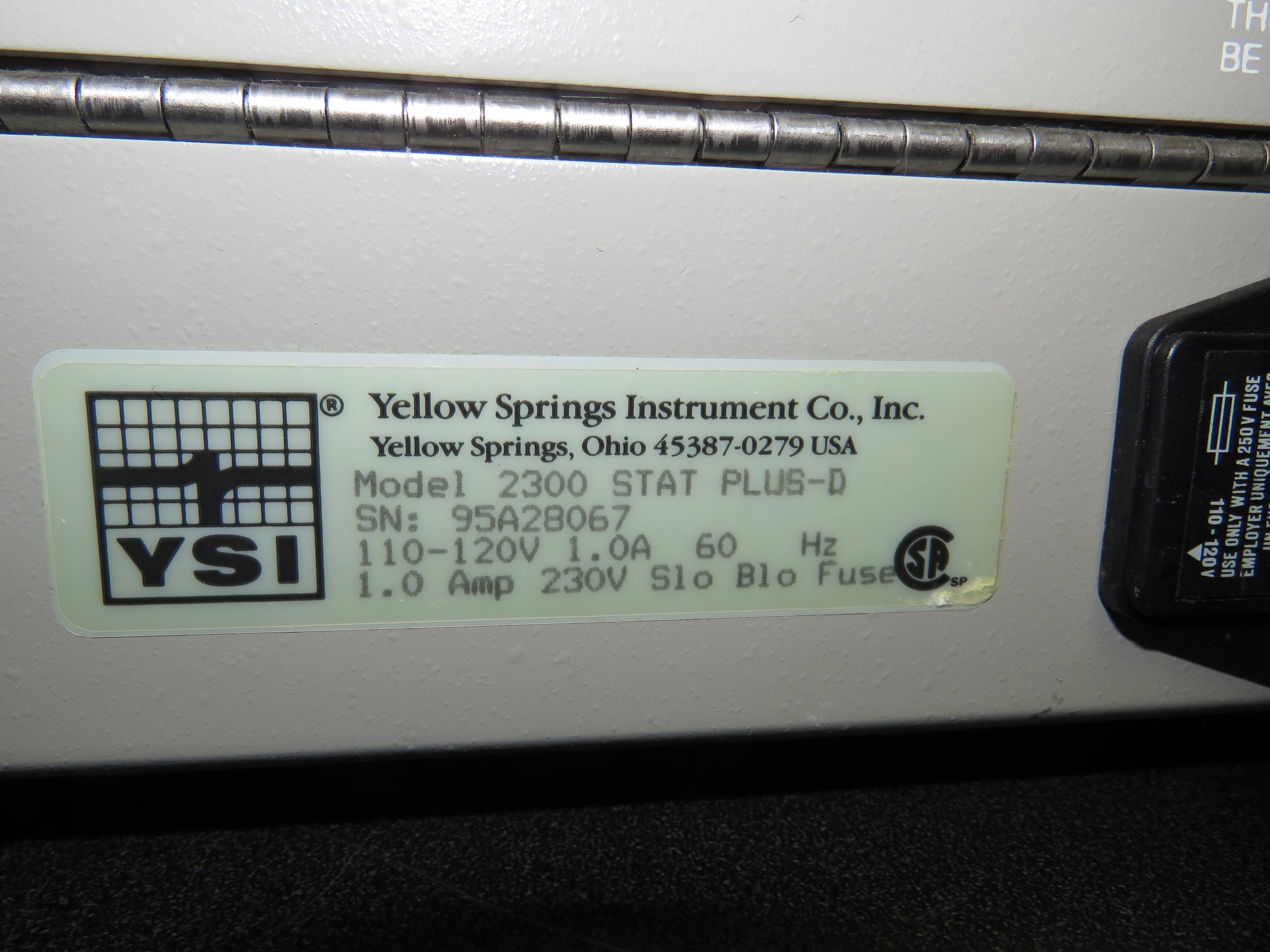

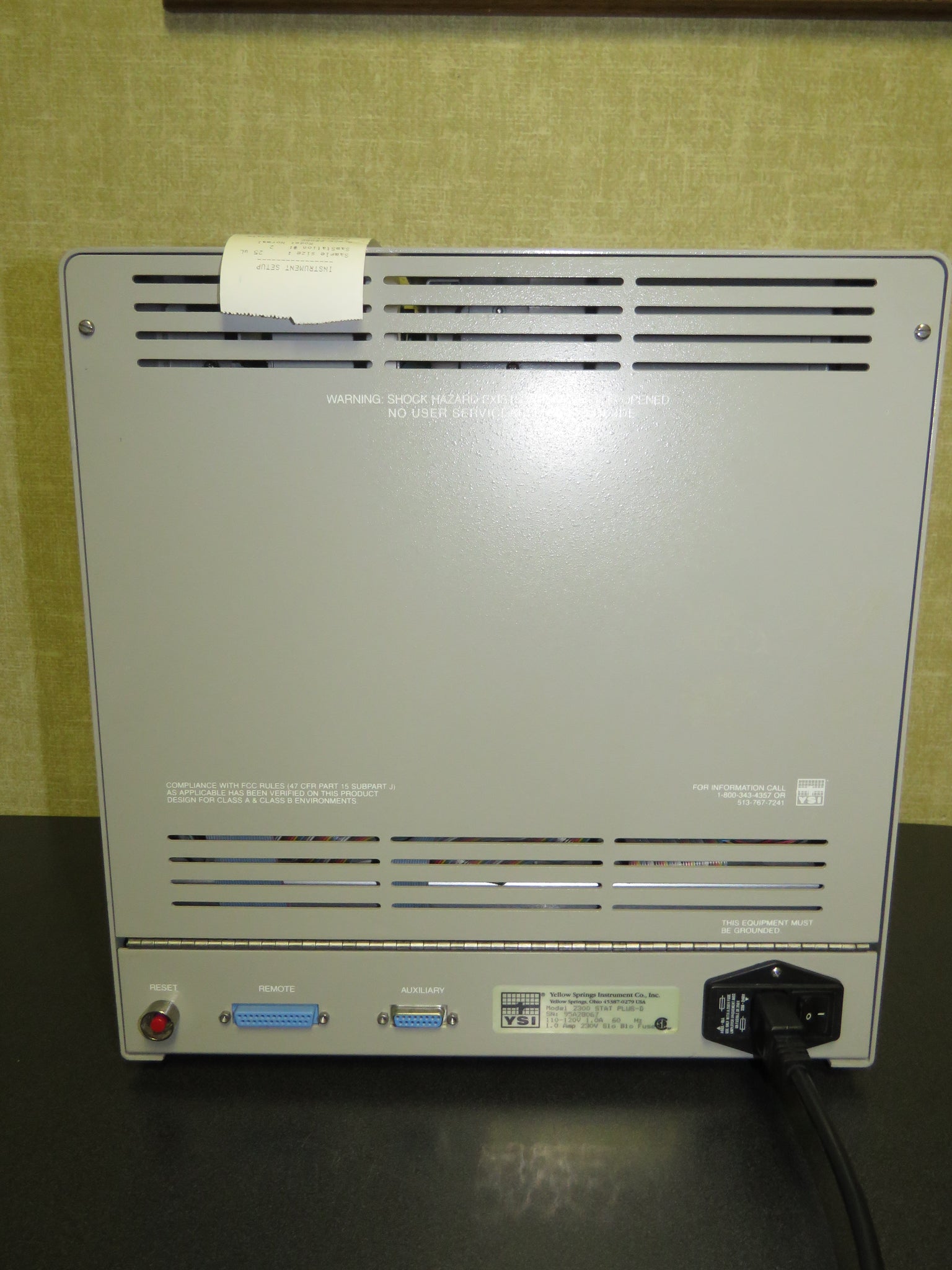

  • (1) YSI 2300 Stat Plus D Glucose L-Lactate Chemistry Analyzer
  • Power cord



30 Day warranty. We pledge to offer the best service and warranty to all of our customers!  We are extending a 30 Day warranty on this item. This is our way of saying thank you for allowing us to serve you.


This is a genuine product from this manufacturer.


The sale of this item may be subject to regulation by the U.S. Food and Drug Administration and state and local regulatory agencies. the item is subject to FDA regulation, we will verify your status as an authorized purchaser of this item before shipping of the item."

Regardless of the origin of the equipment, documentation provided or identification appearing upon the equipment, the equipment described and offered here is in no way certified for, recommended for, or offered for any specific use. The purchaser agrees that the seller shall not be held responsible or liable for any injuries or damages, whether incidental or consequential, associated in any way with the equipment. The purchaser, by bidding on this equipment, indicates their acknowledgment of, and agreement to the terms of this disclaimer. it is the purchaser's responsibility to have the item inspected and certified by a qualified professional before use!
