2012 Air Techniques A/T 2000XR Dental X-Ray Film Processor Developer AT200XR

Air Techniques


Sorry, this item is out of stock

Web Information

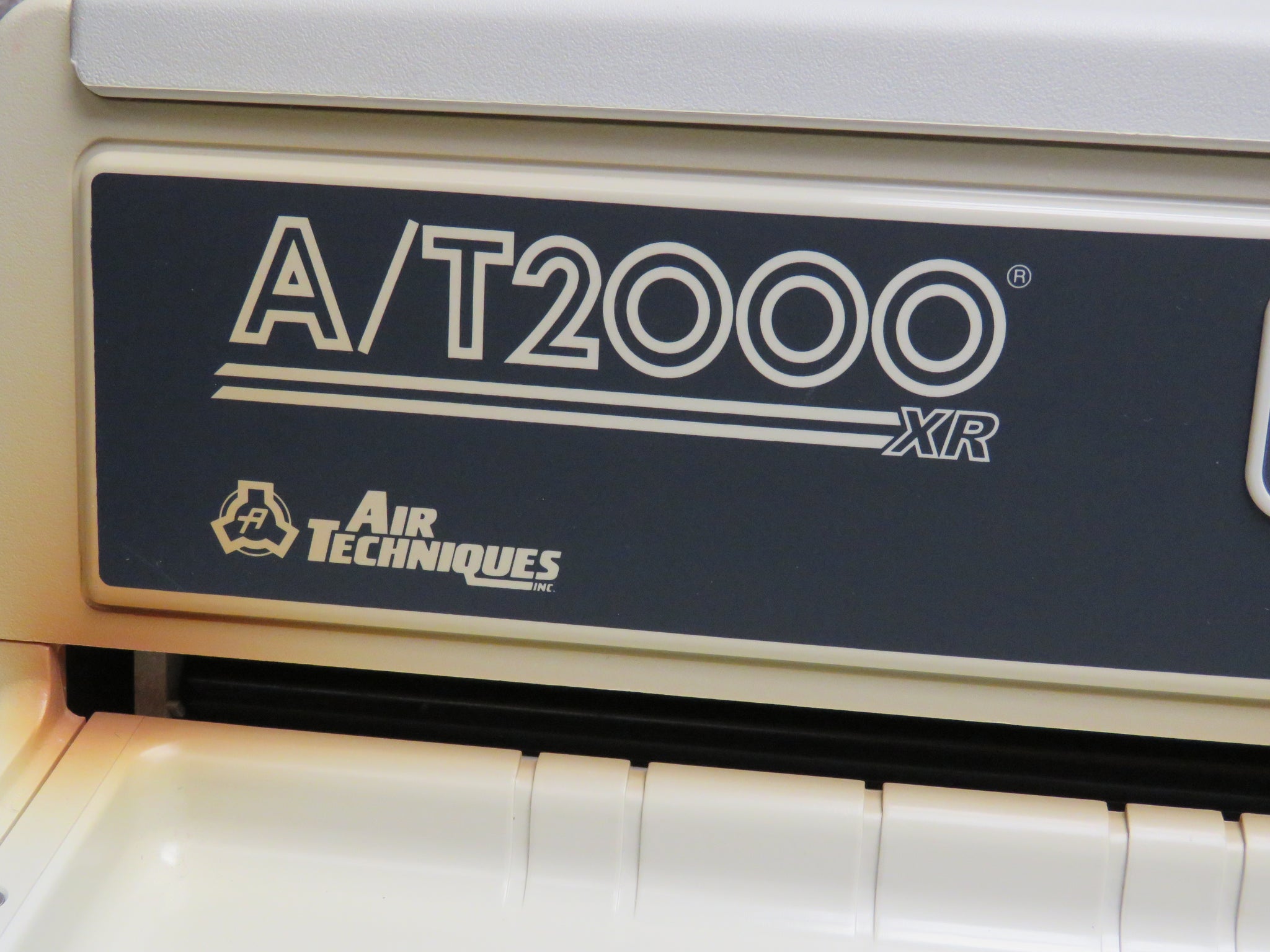

    A/T 2000 XR
    The A/T 2000 XR Film Processor provides high quality radiographs in any size.
    If your practice works with larger size film, A/T 2000XR is the right fit. A/T 2000XR is automatically controlled and highly efficient to keep your practice running smoothly.

    • Processes every dental film size: Panoramic, Cephalometric, TMJ, Occlusal and all Intraorals

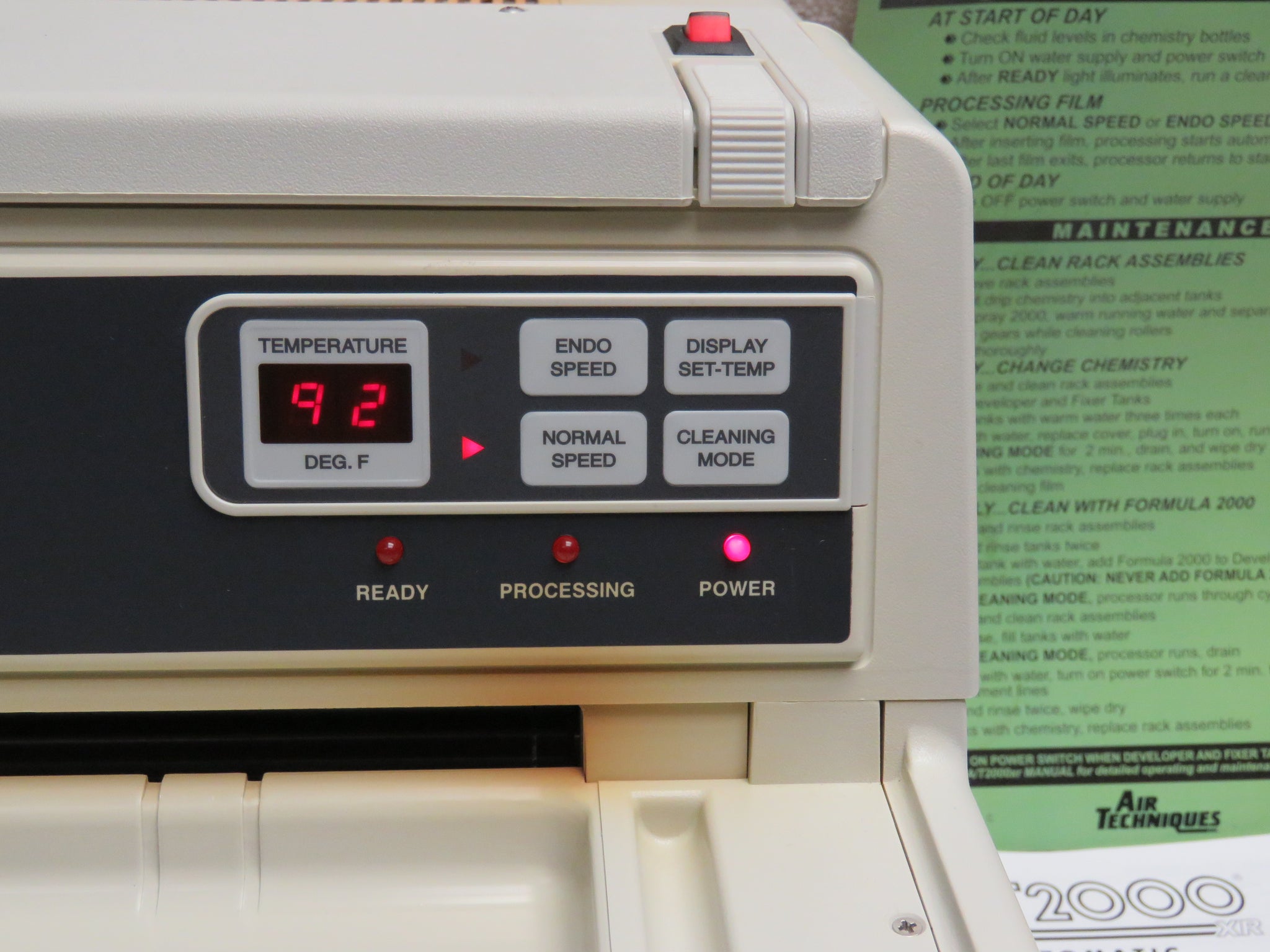

    • Automatic chemistry replenishment and temperature maintenance
    • Built in microcomputer automatically signals the internal replenishment pumps to meter the proper amount of developer and fixer to maintain chemistry strength
    • After films exit the processor, the A/T 2000 XR will automatically return to stand-by mode
    • Electricity use, water consumption and system wear are reduced
    • The optional Panoramic Daylight Loader and a Quick Loader Covered Feed Chute eliminate the need for a dark room
    • Each film is fully developed and fixed
    • Compliance with local codes – Built-in water recirculation system

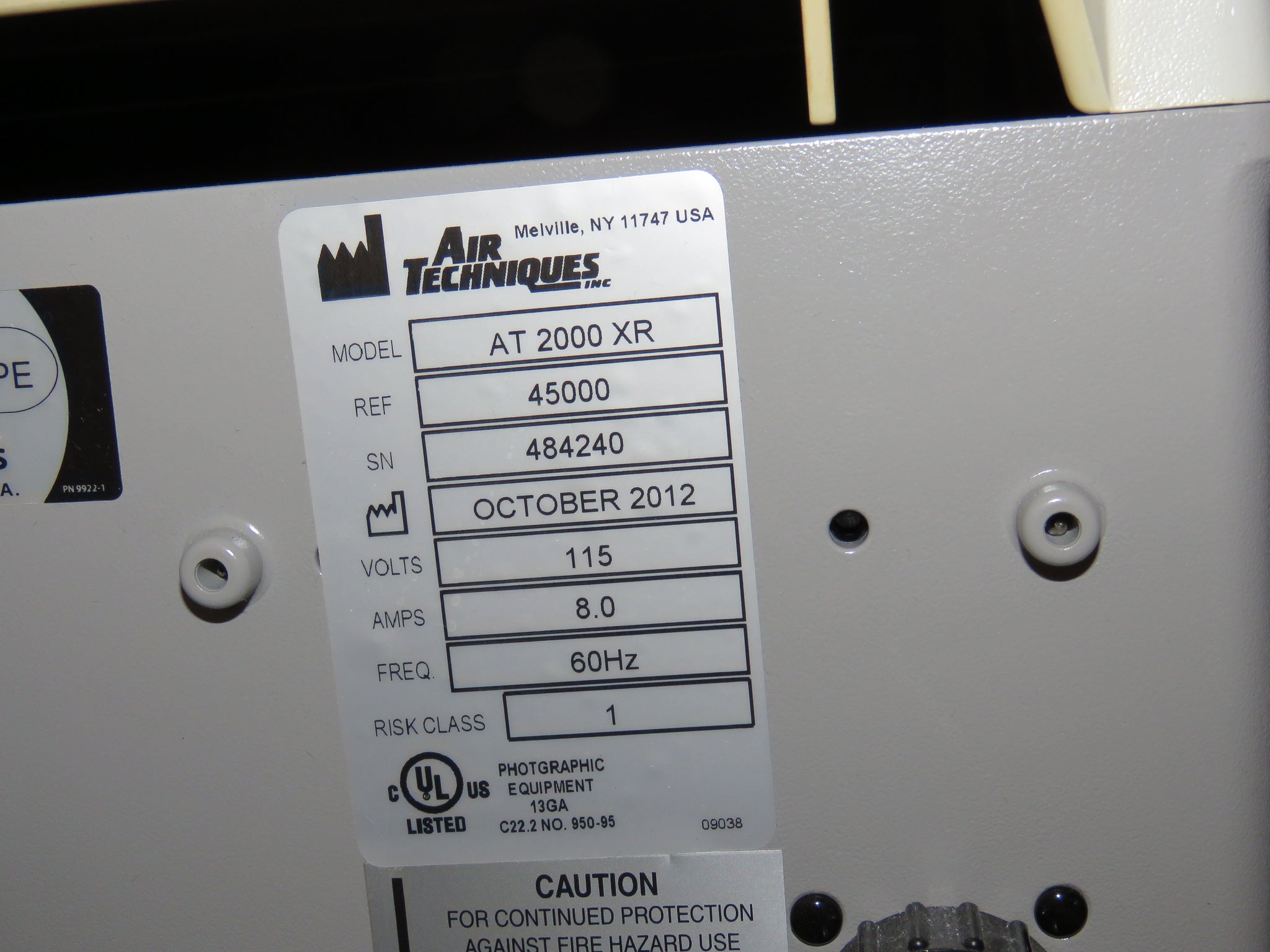

    Part Number 45000
    Process Time Archival, 5 1/2 minutes. "Quick-look" Endo periapical films, 2 1/2minutes
    Chemistry Replenishment At initial Power On, 4 1/4oz. in 90 seconds. Every 12 3/4" linear film, 1 2/3 oz. in 35 seconds
    Water Flow 1/2 gallon per minute (while processing film). Do not use water softeners
    Water Pressure 80 psi max. / 30 psi min.
    Water Connection 1/2" female NP and 3/4" male garden hose adapters provided. A 6' long water supply hose is provided to connect to the rear of the processor
    Water Backflow Prevention Vacuum breaker not required. Processor has a 1" air gap between water supply inlet and top of highest water level in processor
    Water Temperature Mixing valve not required if water temperature is between 55 degree F (13 degrees C) to 80 degrees F (27 degrees C)
    Dimensions (HxWxD) 18"x15"x25" with leveling base. With Daylight loader, 18"x16.25"x39"; Daylight Loader extends additional 10.25" below counter top

    90lbs with water and chemistry, 75lbs empty


    Used, fully functional.  Came directly from a lab that upgraded to digital.

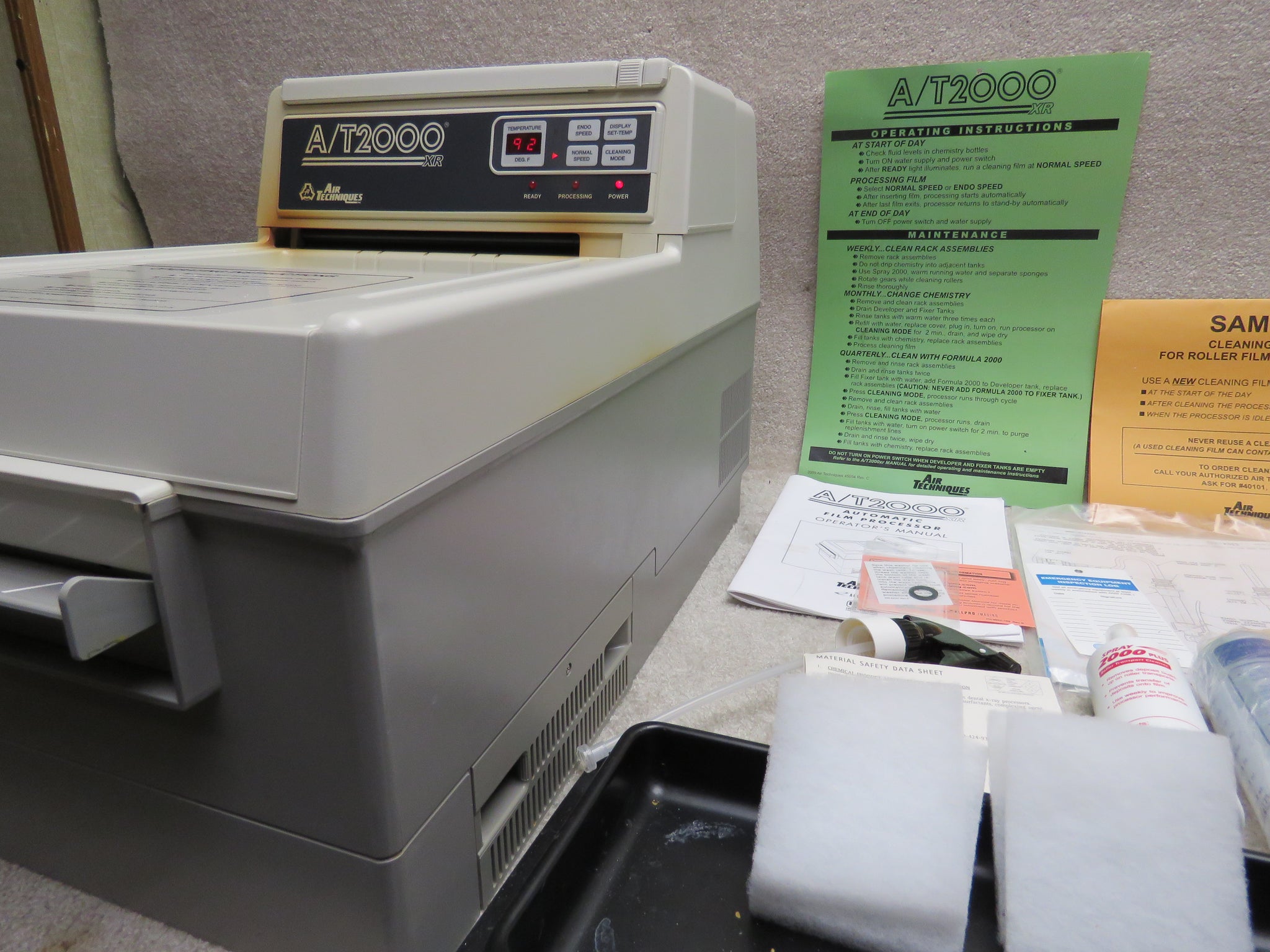

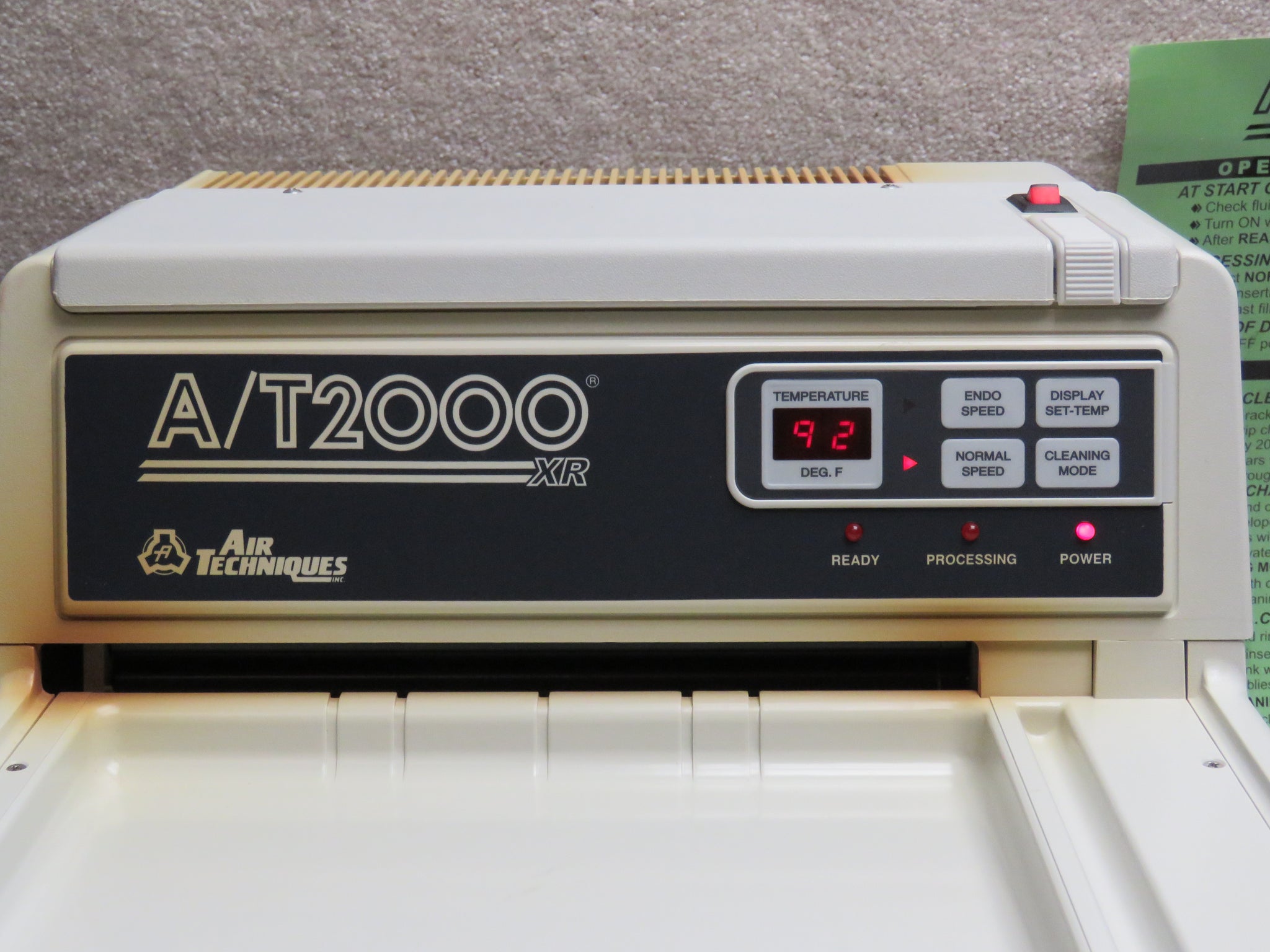

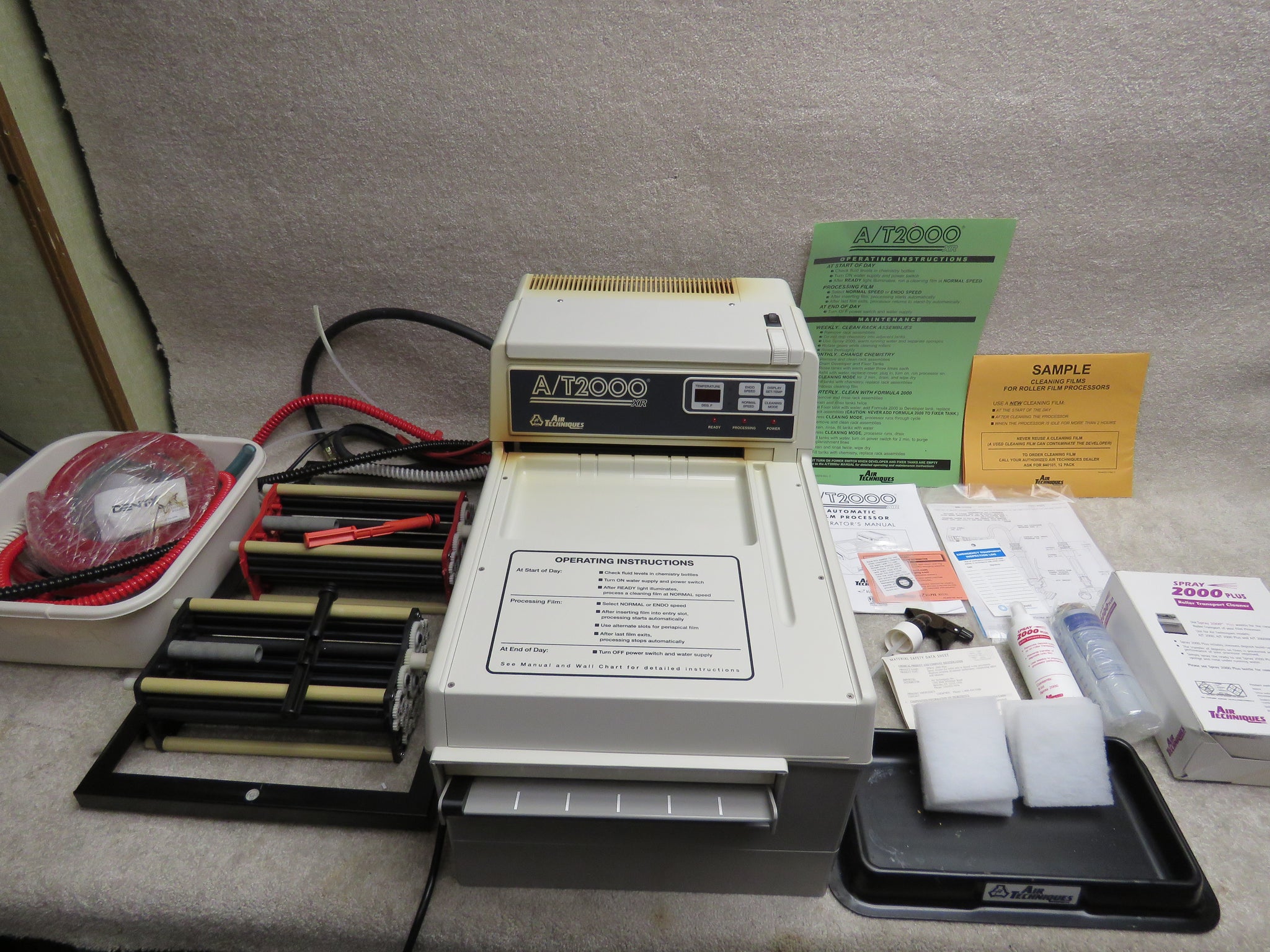

    • Air Techniques A/T 2000 XR Dental X-Ray Film Processor (2012 Model year)

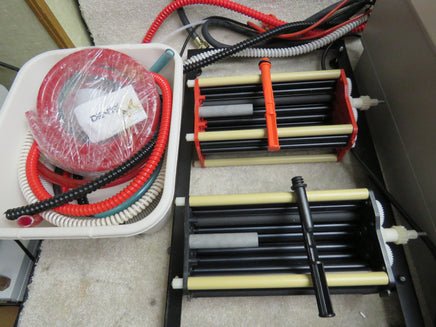

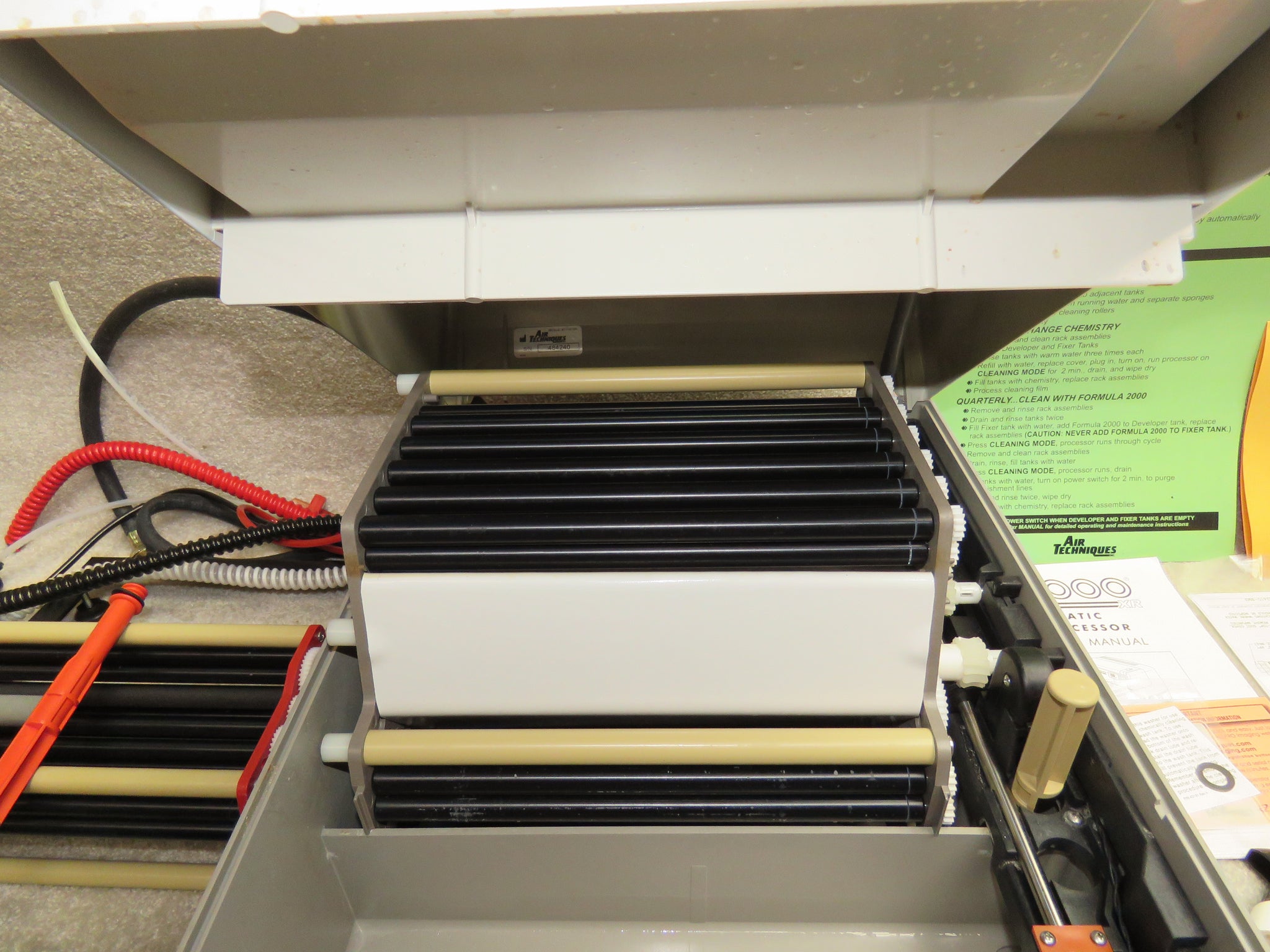

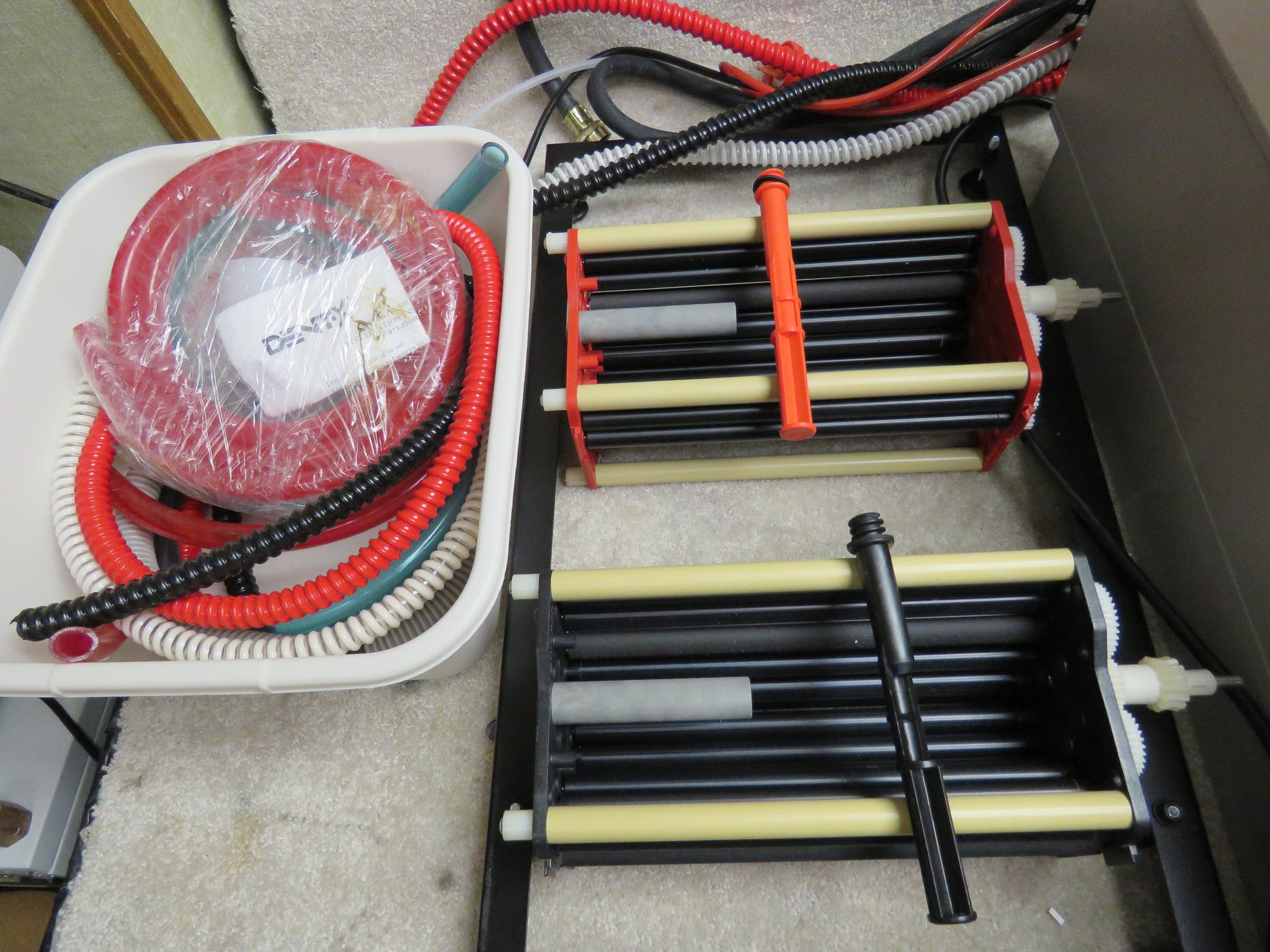

    • Developer Rack
    • Fixer Rack
    • Wash/Dry Rack
    • Leveling Base

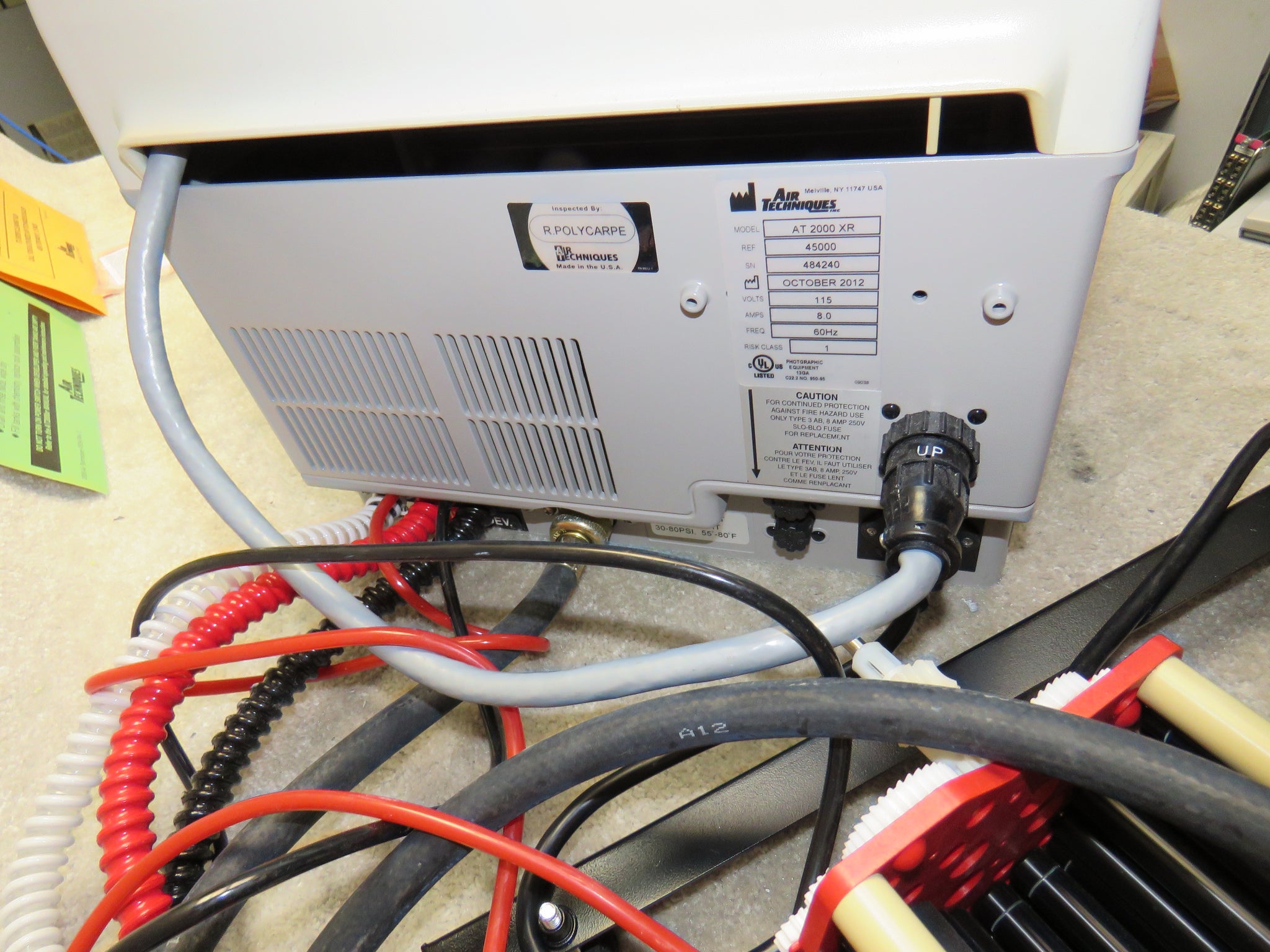

    • Hoses

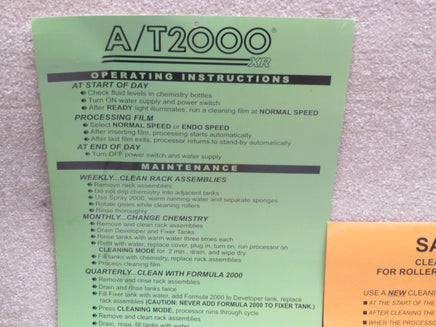

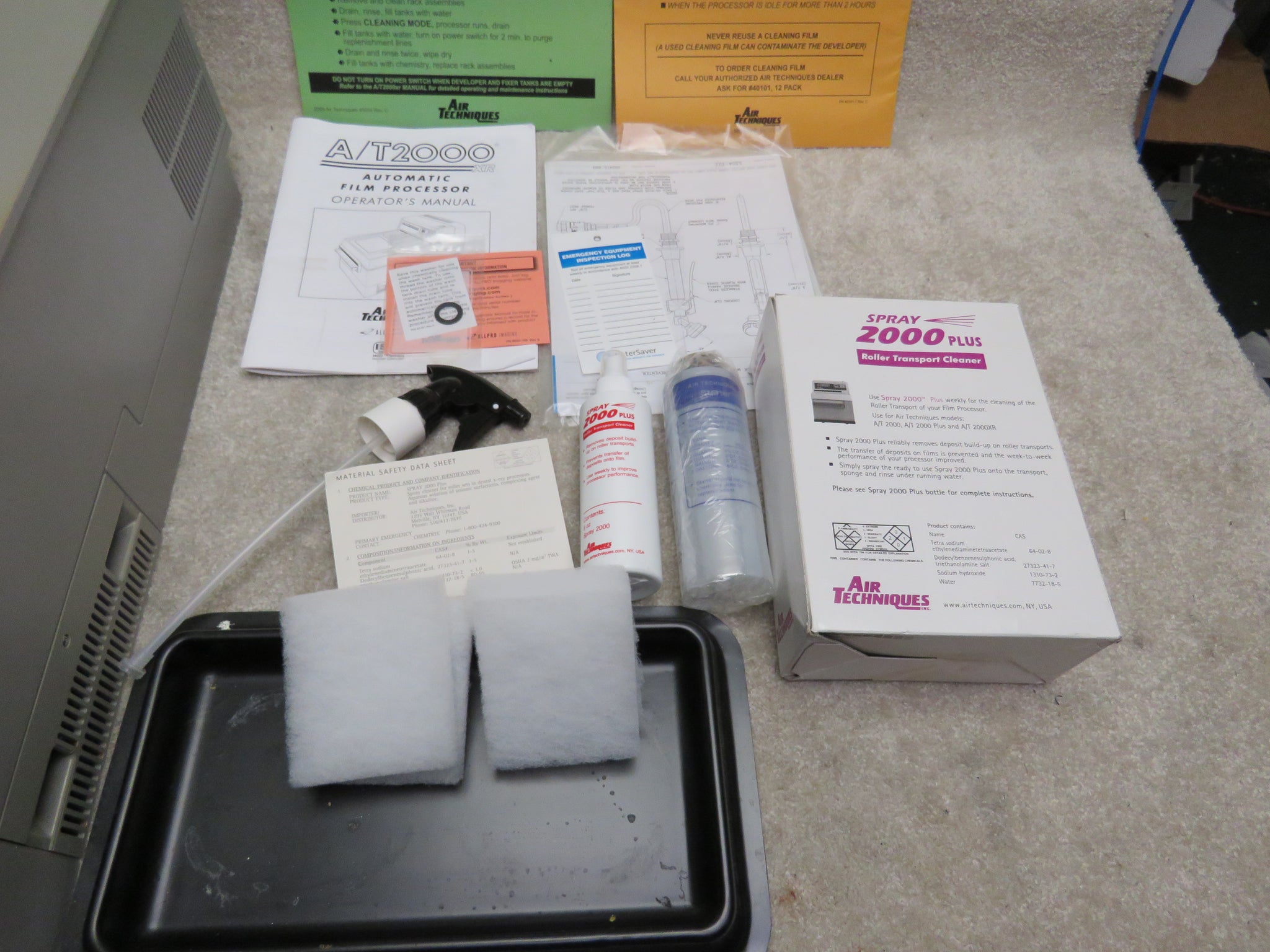

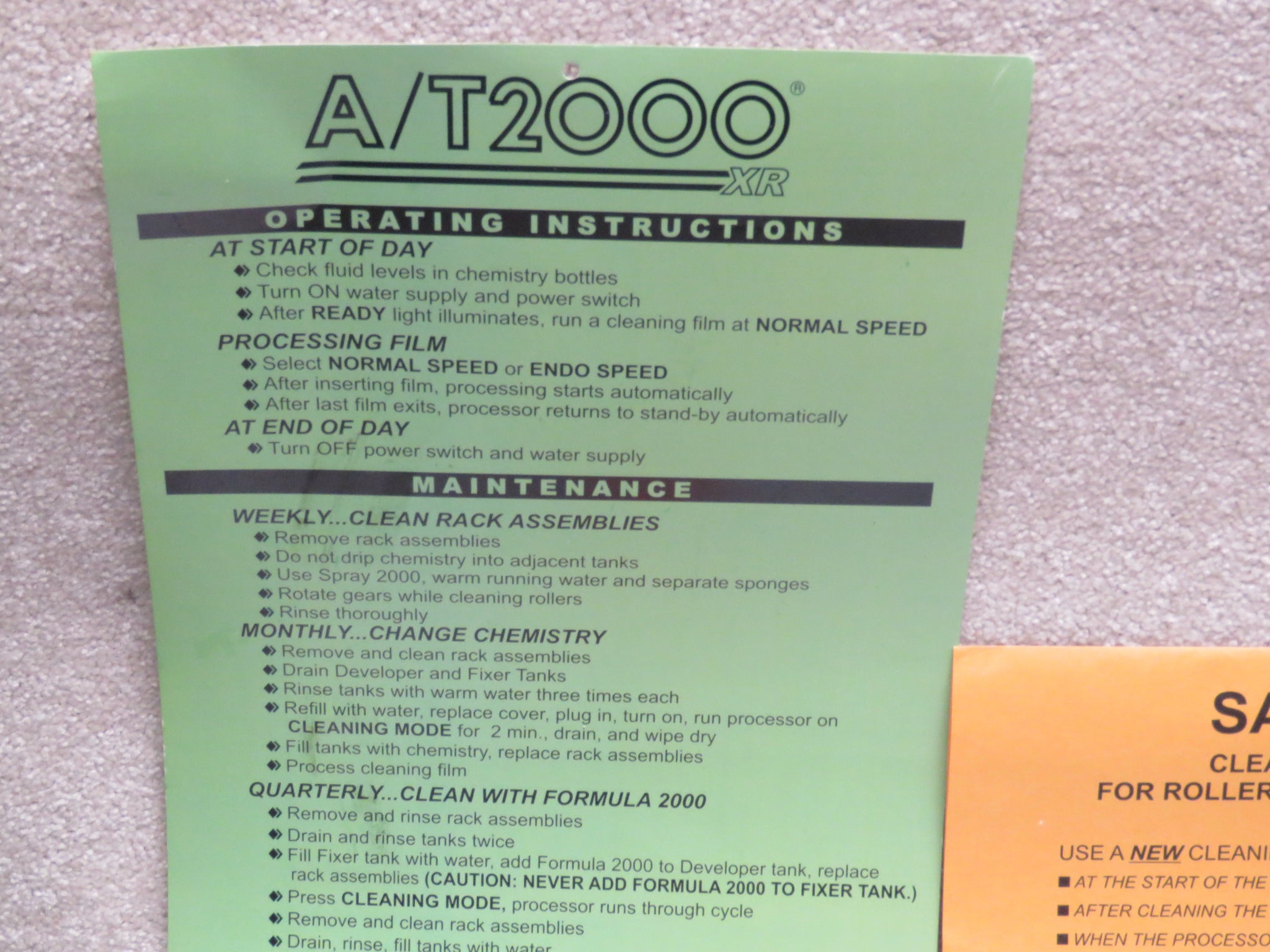

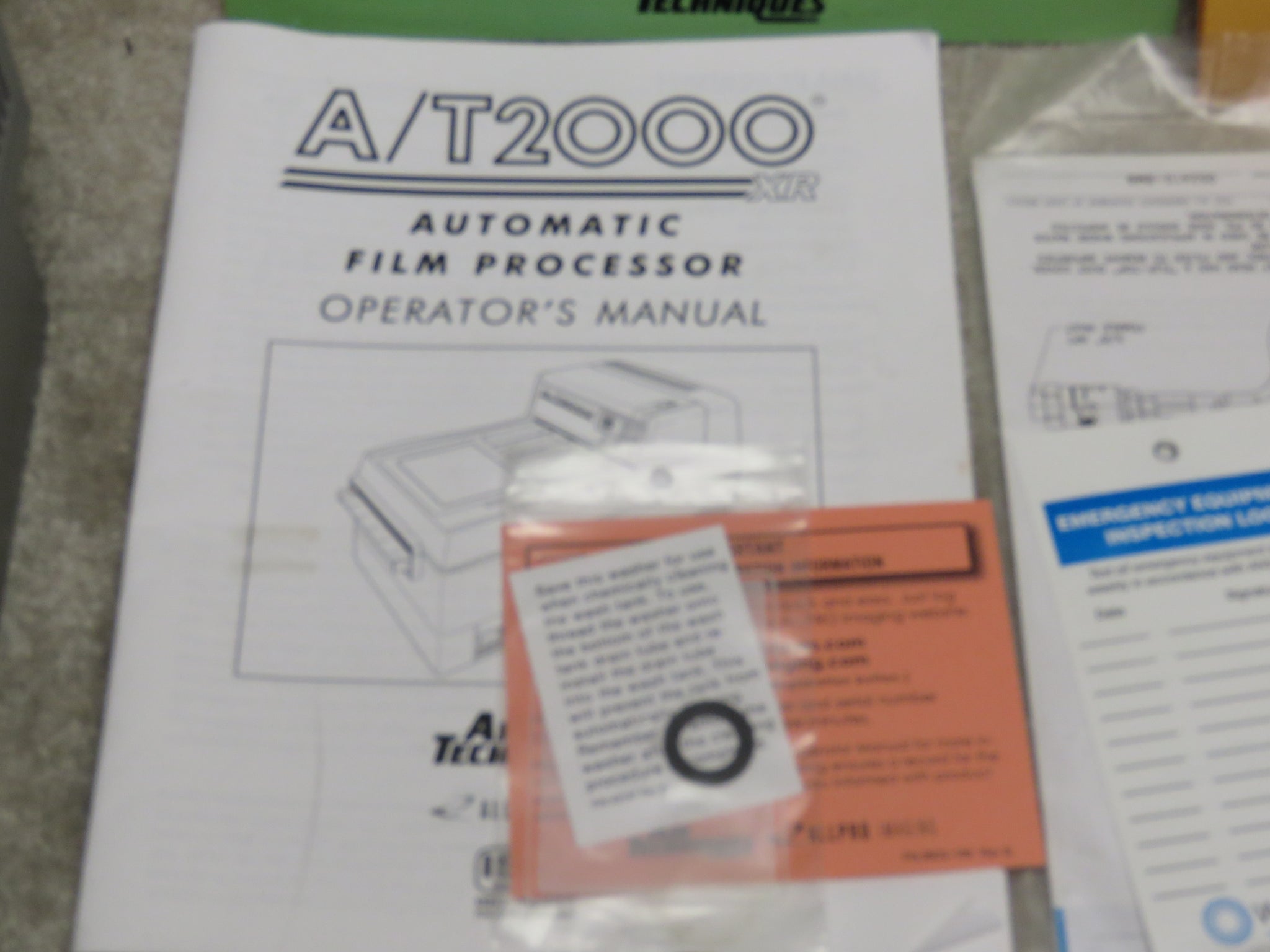

    • Manuals

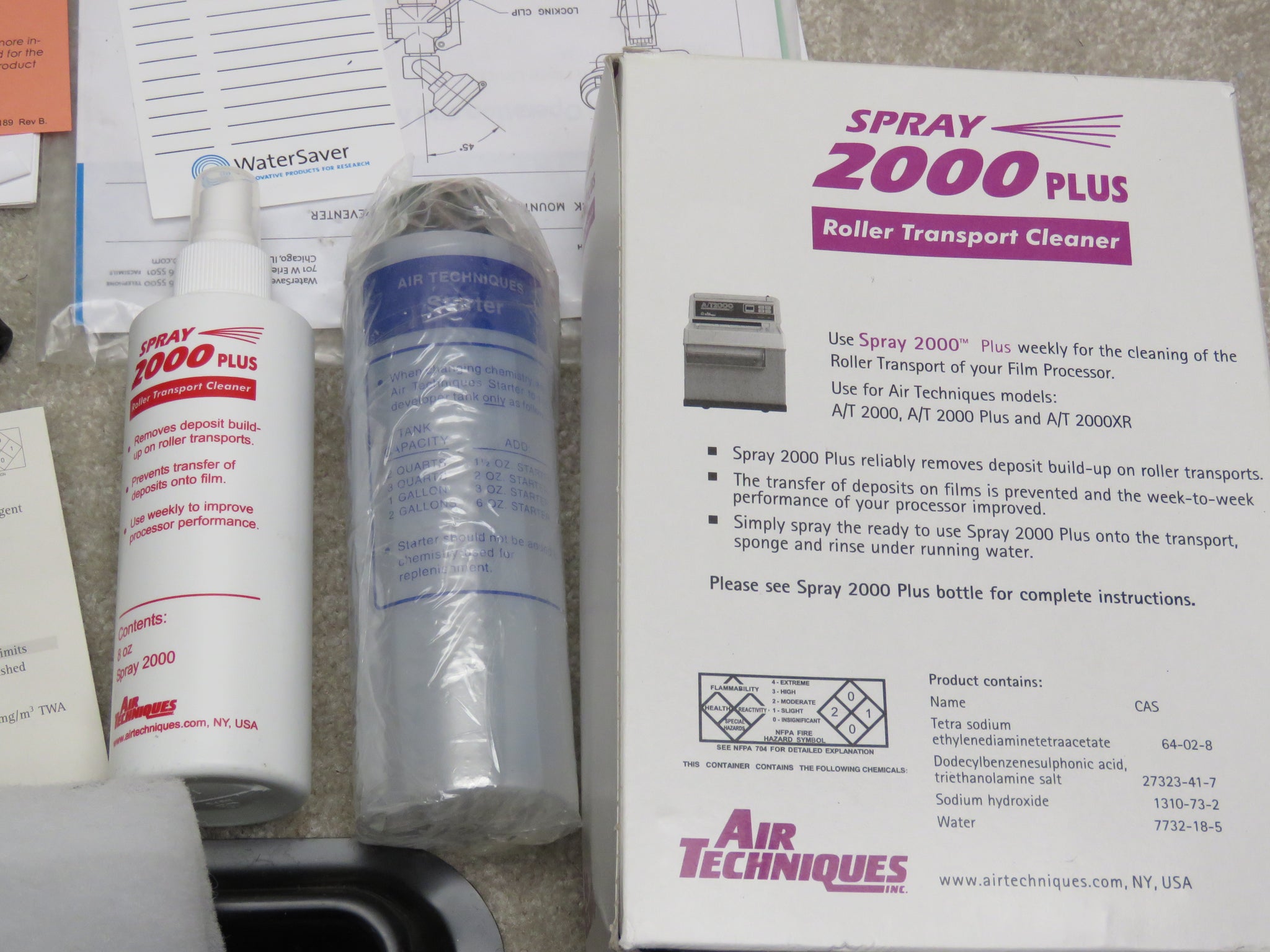

    • Roller Spray kit
    • Bottle of starter


        30 Day warranty. We pledge to offer the best service and warranty to all of our customers!  We are extending a 30 Day warranty on this item. This is our way of saying thank you for allowing us to serve you.
