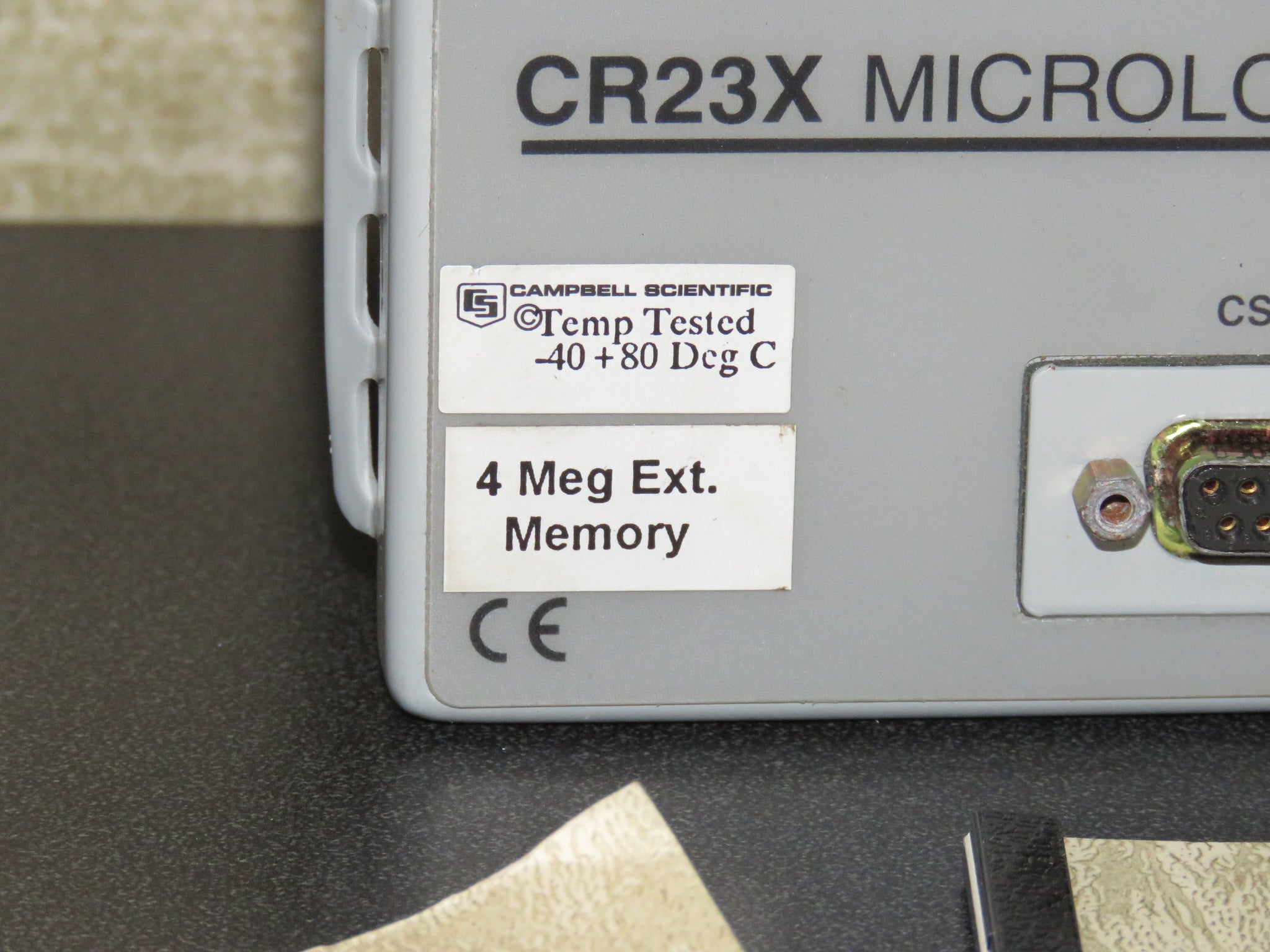

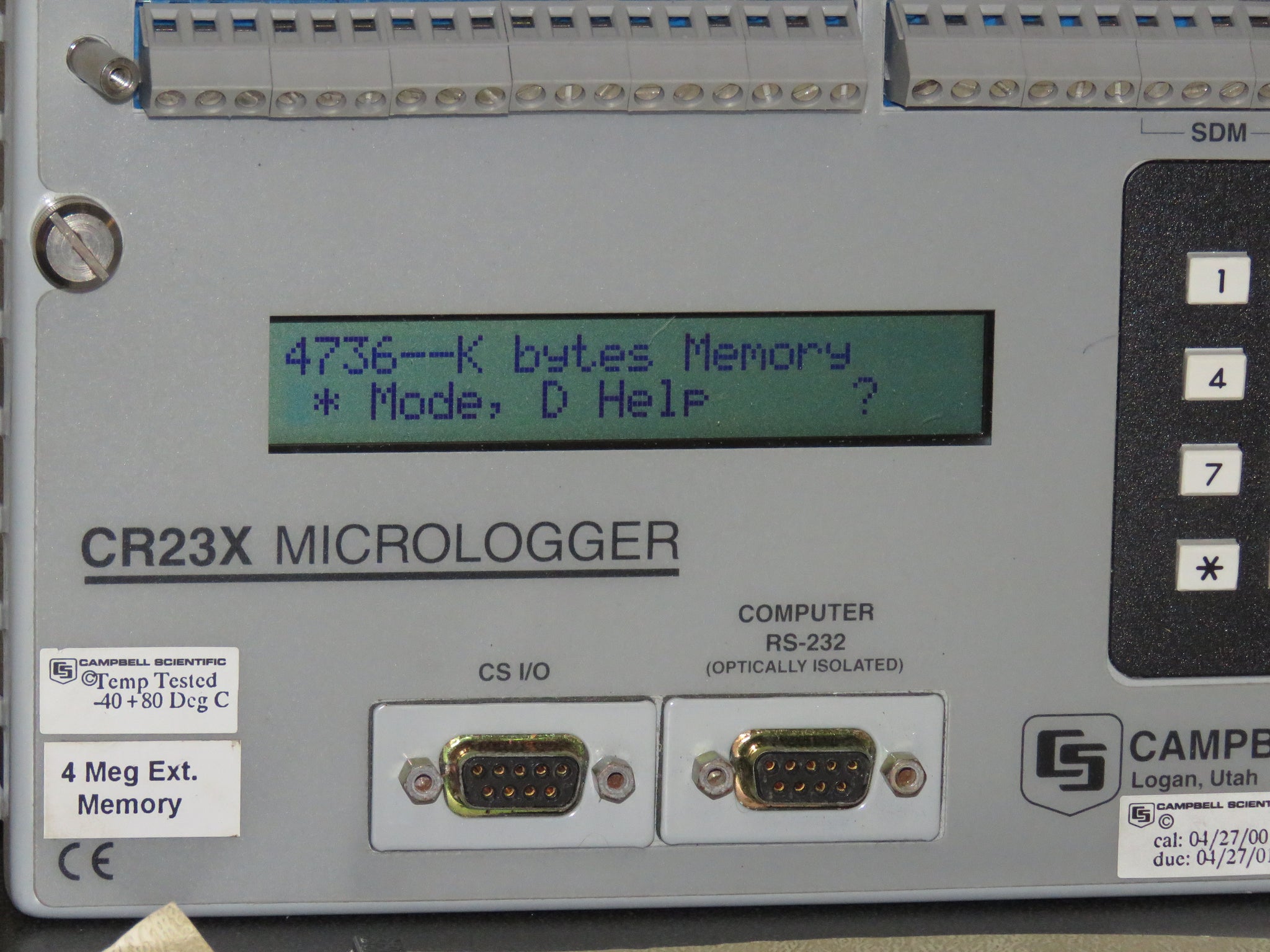

Campbell Scientific CR23X Micrologger 4MB Extended Mem w/4 101 Thermistor Probes

Campbell Scientific

SKU: campbellcr23x

Sorry, this item is out of stock

Web Information

Detailed Description

The CR23X is a self-contained, rugged data logger that can measure most sensor types directly, communicate via modems, reduce data, control external devices, and store both data and programs in either non-volatile Flash memory or battery-backed SRAM.

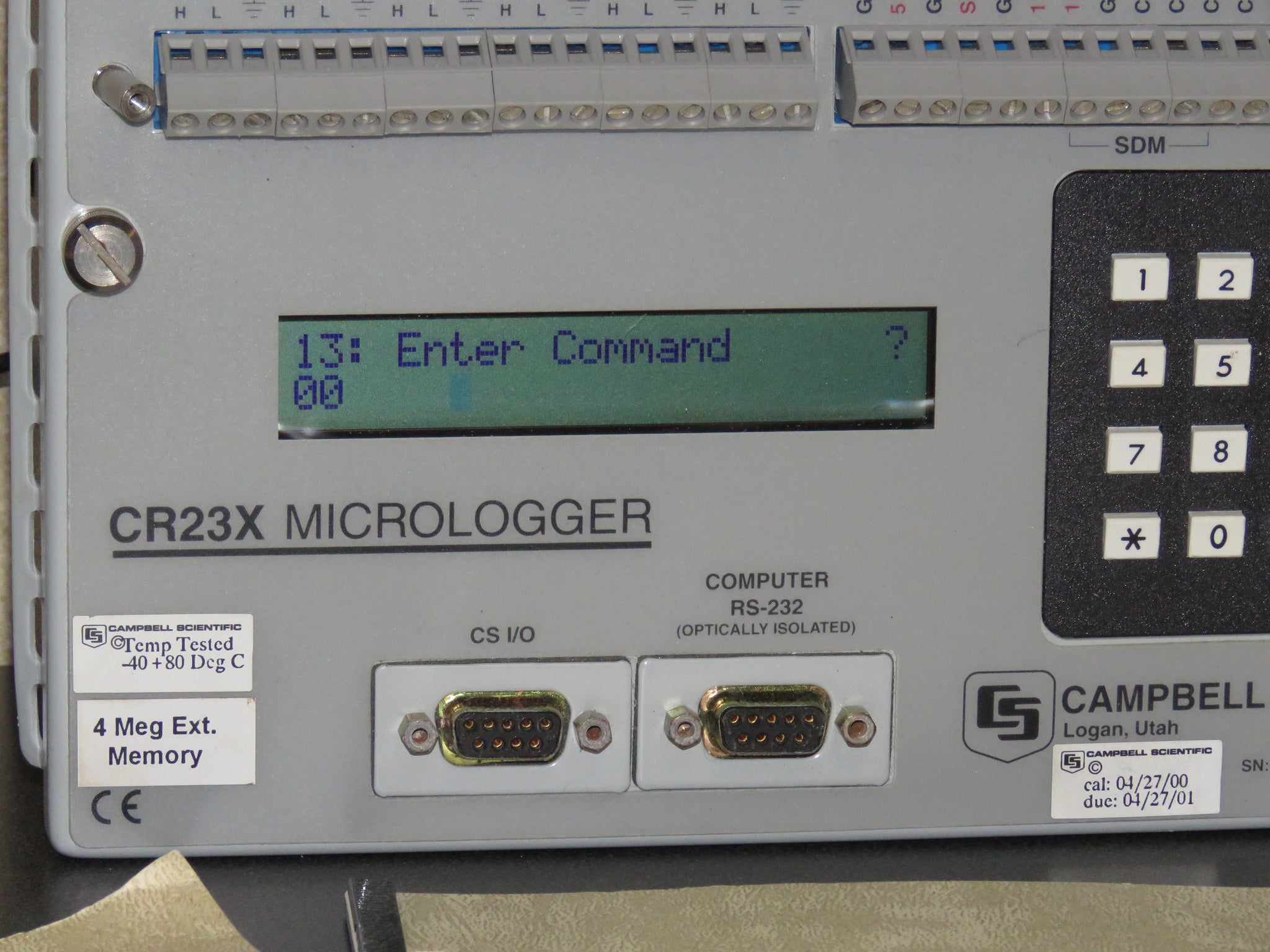

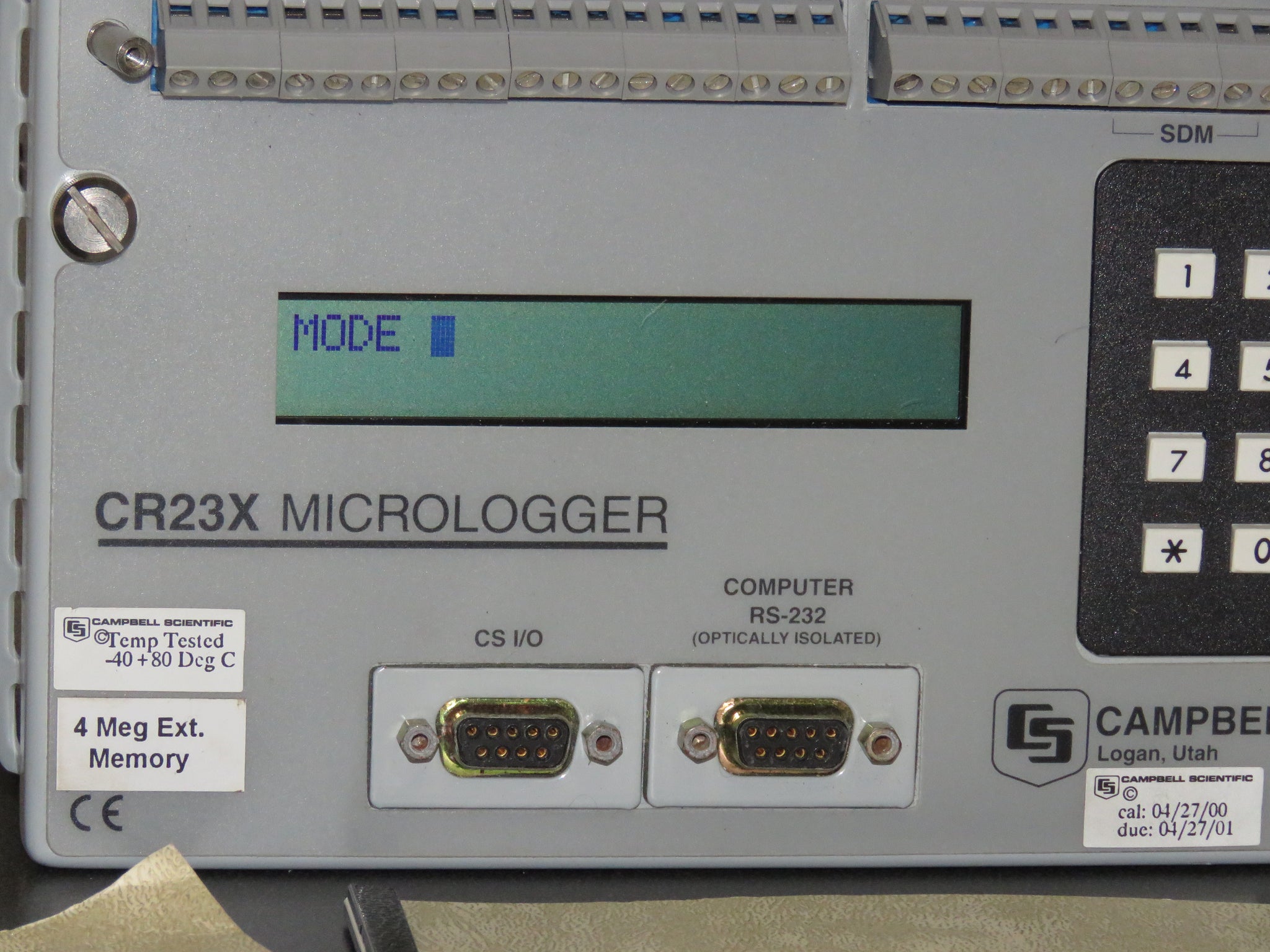

The CR23X has an integral, 2-line, alphanumeric display and power supply. A battery-backed, real-time clock and 2M of nonvolatile data storage is included. The CR23Xs are available with a sealed rechargeable battery base, an alkaline base, or in a low-profile version without batteries.

Analog Inputs 24 single-ended or 12 differential, individually configured
Pulse Counters 4
Switched Voltage Excitations 4
Control/Digital I/O Ports 8
Continuous Analog Outputs 2
Serial I/O Port (CS I/O) 1
RS-232 Port 1
Scan Rate 100 Hz
Burst Mode 1500 Hz
Analog Voltage Resolution To 0.33 uV
A/D Bits 15
Programming Edlog
Data Storage Mixed Array, Table
Telecommunications Standard, Modbus, Alert
Standard Operating Temperature Range -25° to +50°C
Extended Operating Temperature Range -40° to +80°C
Corrected Display Temperature -20° to +40°C
Survival Display Temperature -40° to +85°C



Used, excellent shape -- with warranty (except for batteries)

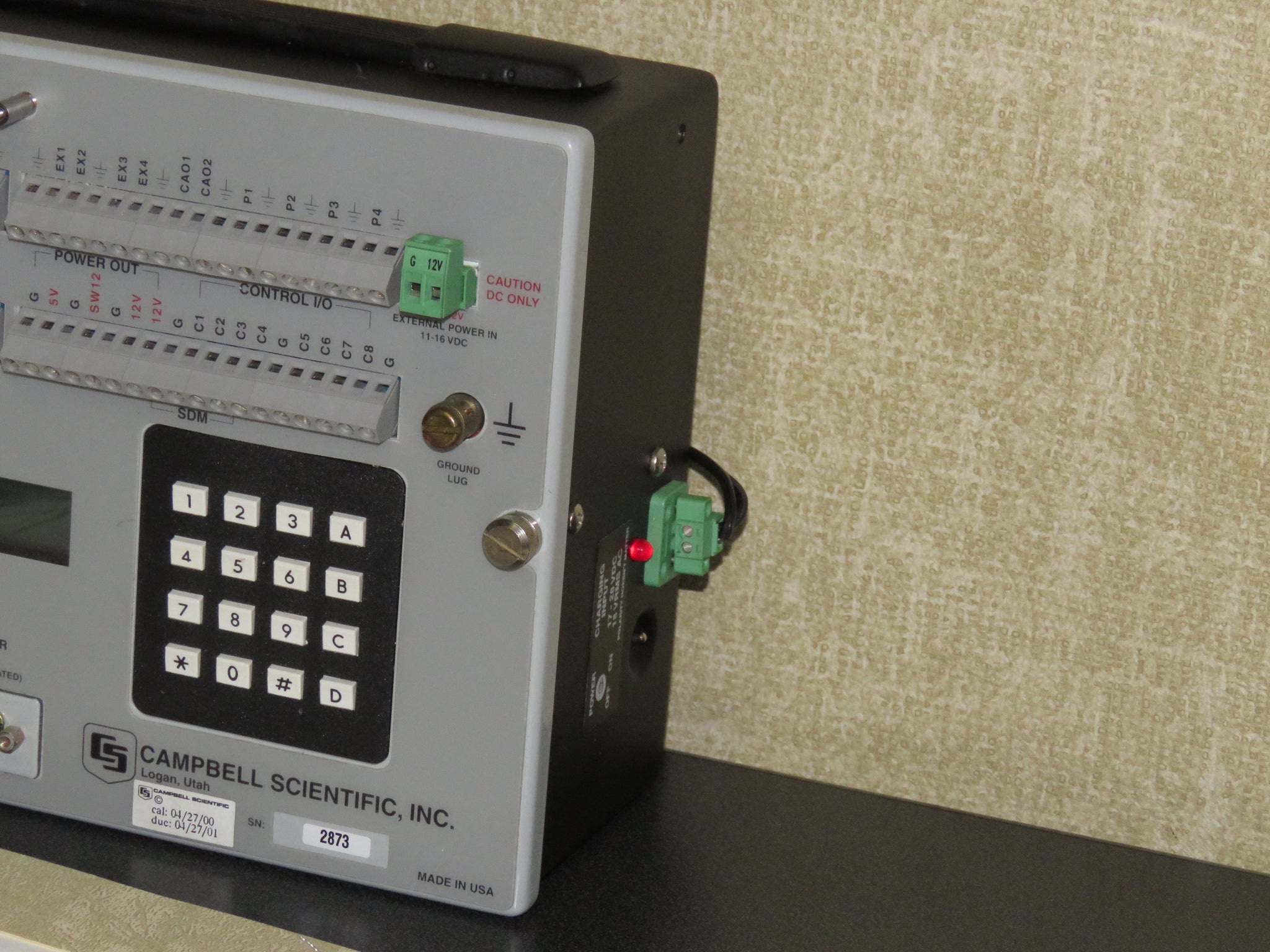

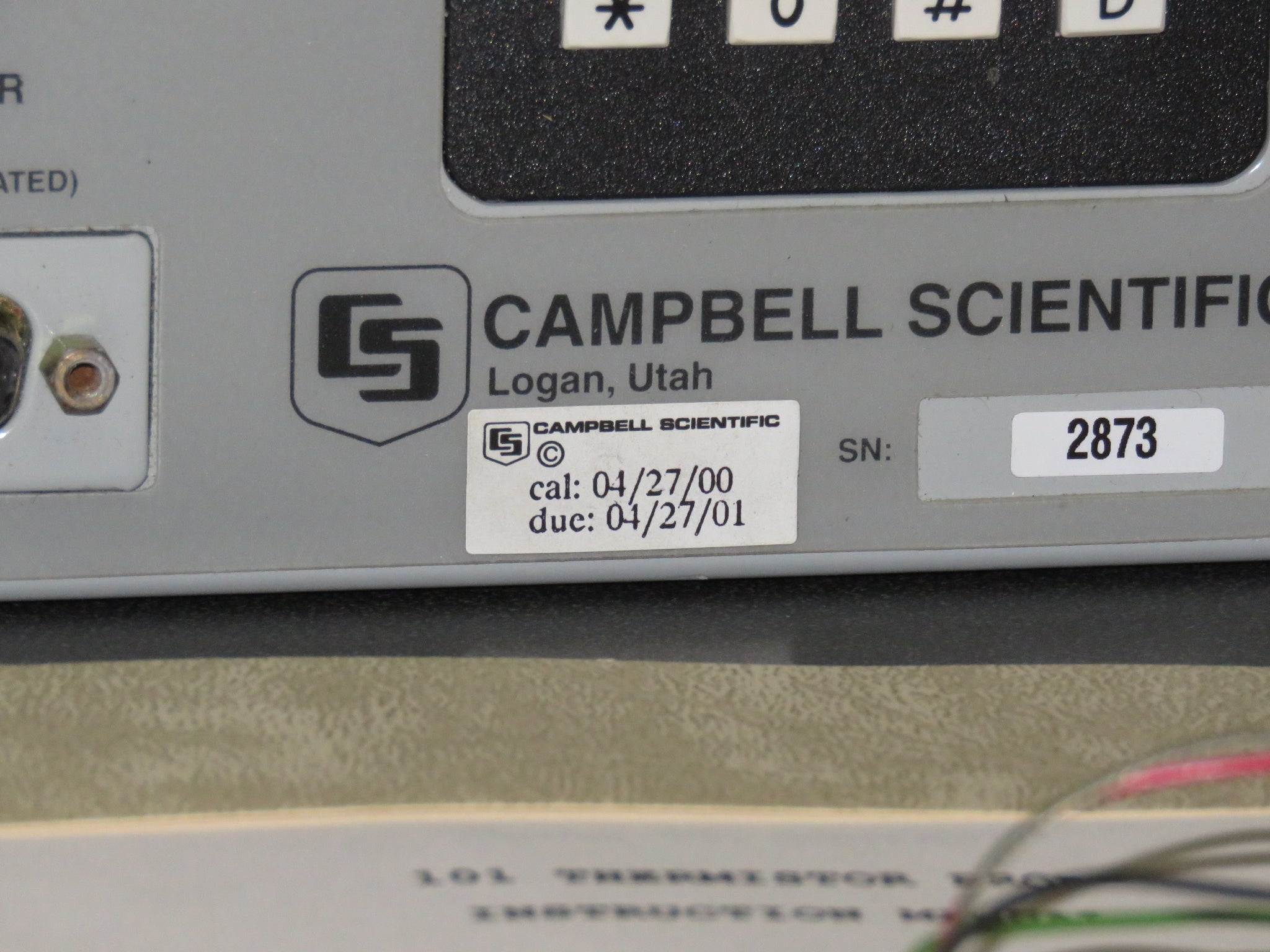

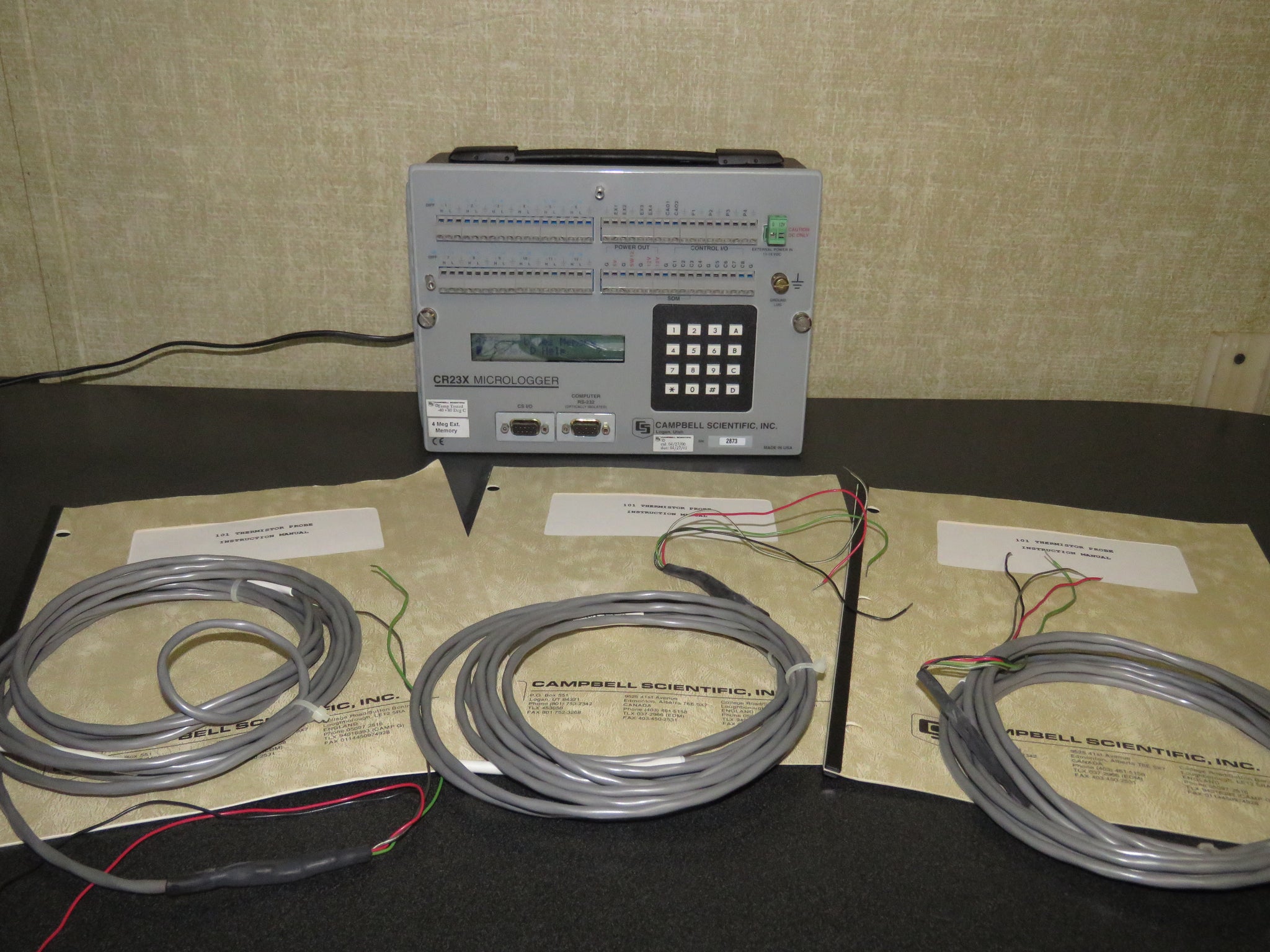

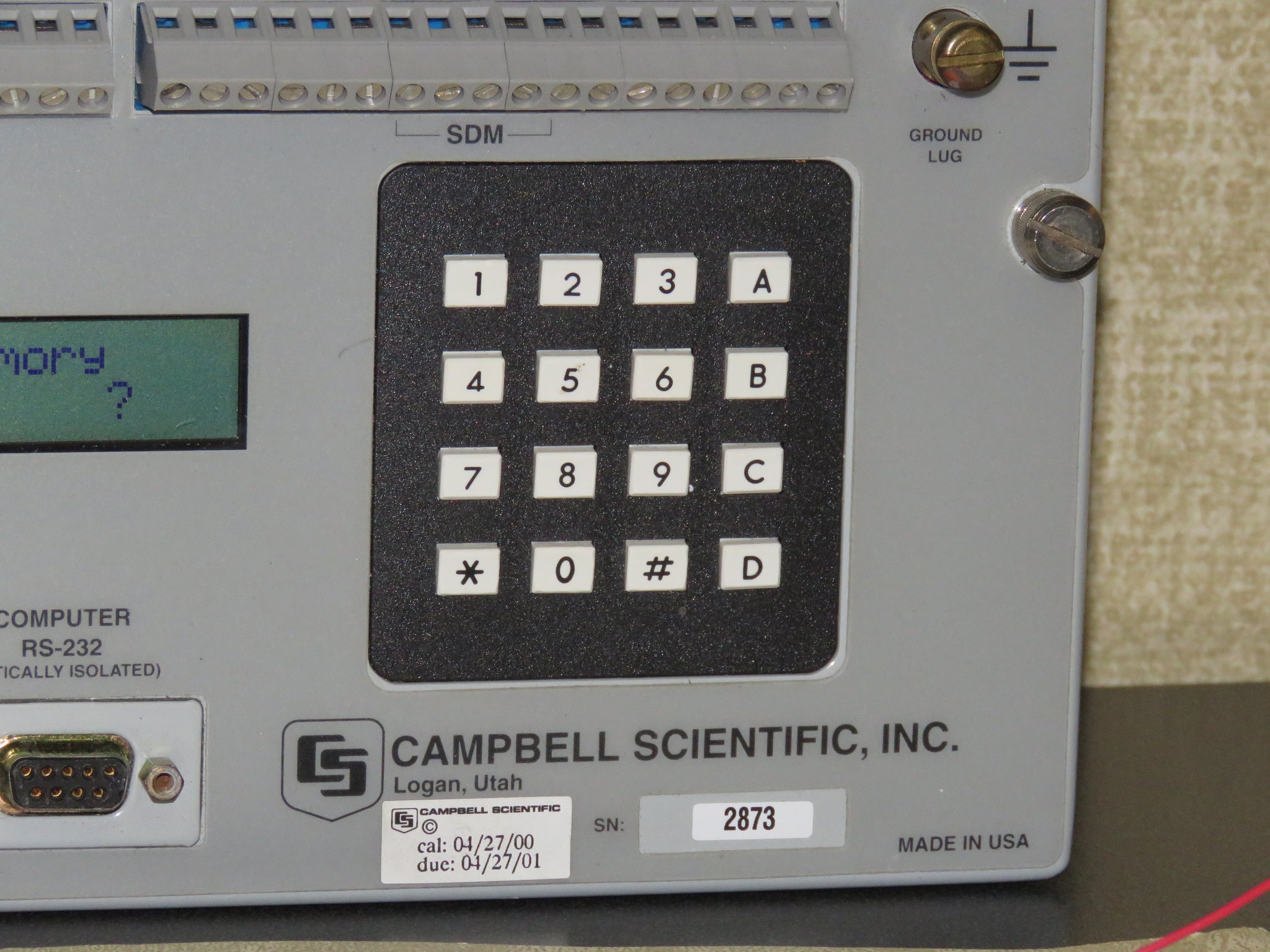

    (1) Campbell Scientific CR23X Micrologger

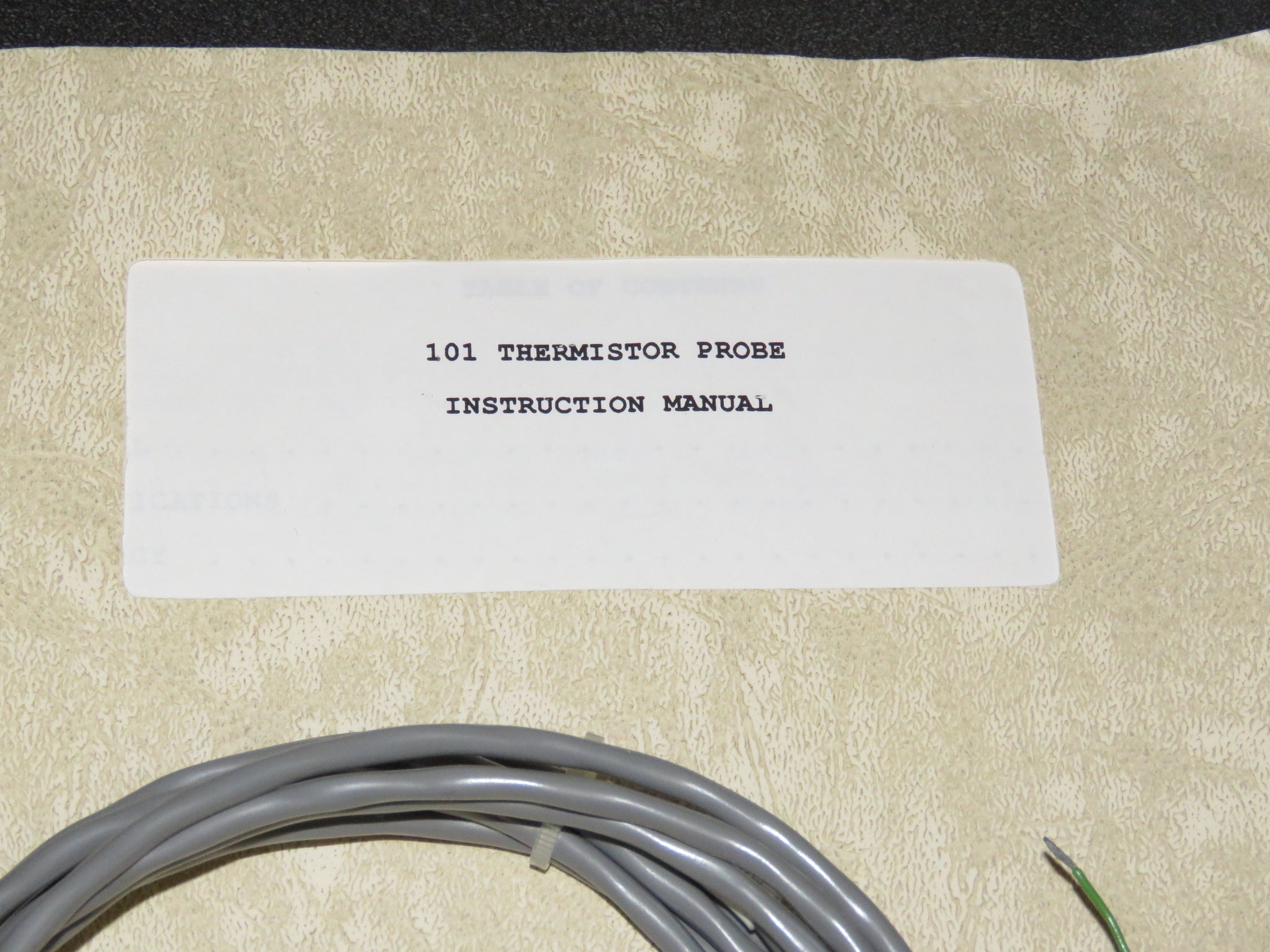

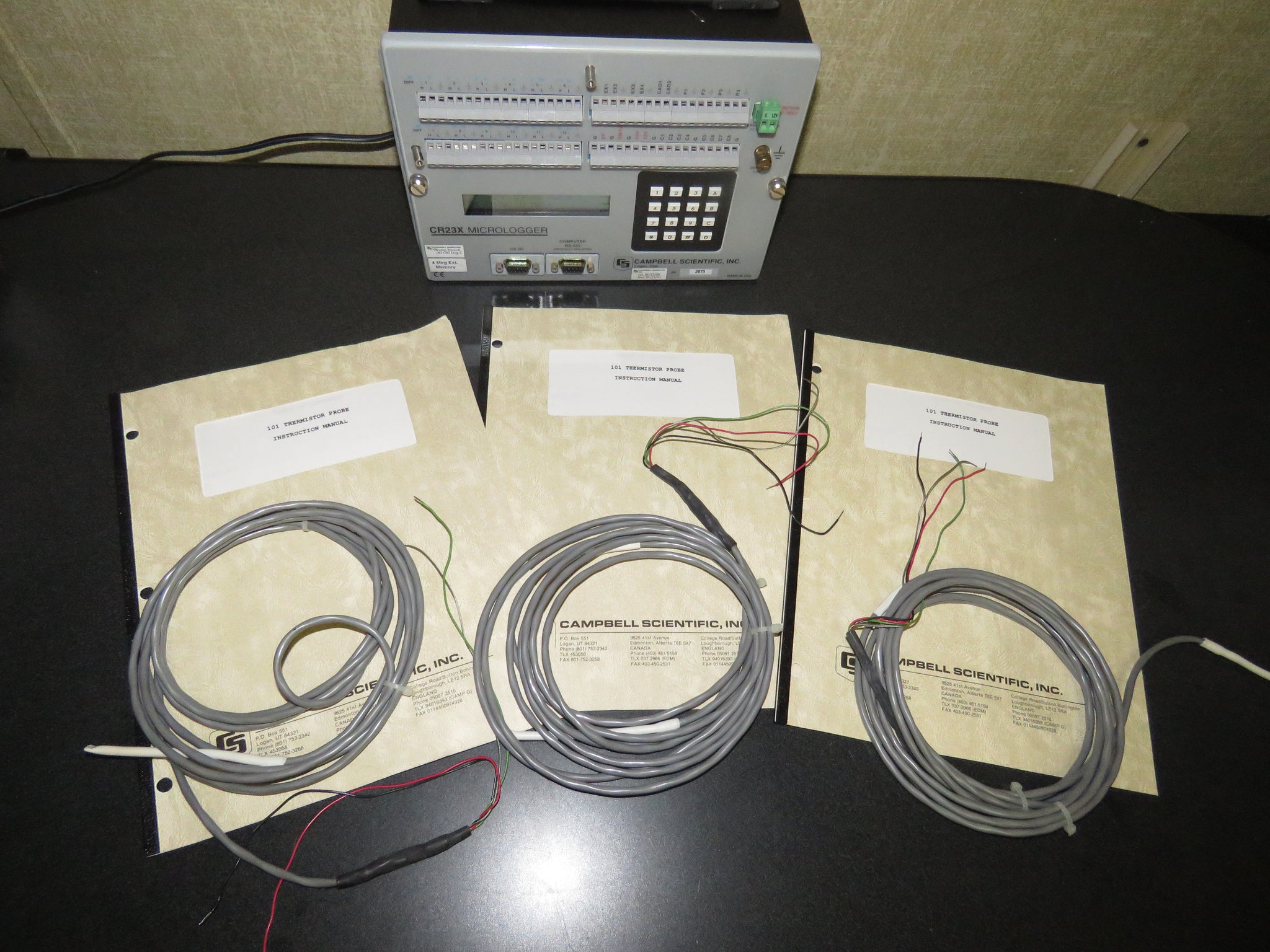

    (4) 101 Thermistor Probes with manuals


      30 Day warranty. We pledge to offer the best service and warranty to all of our customers!  We are extending a 30 Day warranty on this item. This is our way of saying thank you for allowing us to serve you.


      This is a genuine product from this manufacturer.
