Molecular Devices Spectramax M5 Multi-Mode Reader w/Laptop & Softmax 4.8 License

Molecular Devices


Sorry, this item is out of stock

Web Information

The SpectraMax® M5 Multi-Mode Microplate Reader delivers single mode reader performance and can be equipped to read volumes as low as 2uL in one multimode reader package. The dual monochromator optics allow the widest range of applications to be utilized for bioresearch and drug discovery applications, all without the need to change filters. The SpectraMax® M5 Microplate Reader possesses the five modes preferred by the majority of our users providing the benefit of multiple detection modes in one platform: UV-Visible Absorbance (Abs), Fluorescence Intensity (FI), Time-Resolved Fluorescence (TRF), Fluorescence Polarization (FP), Luminescence (Lumi).

For fluorescence intensity, time resolved fluorescence, and fluorescence polarization assays, the SpectraMax M5 Microplate Reader optical design provides the highest level of flexibility. Users can select from top or bottom read modes for improved sensitivity for solution and cell-based assays. Assays can be better optimized by scanning across a range of wavelengths in increments as small as 1 nm. Up to 4 wavelength pairs can be read in one protocol for endpoint and kinetic measurements, allowing for fast setup of FRET and TR-FRET assays.

For luminescence, the SpectraMax® M5 Microplate Reader utilizes a dedicated luminescence photomultiplier tube (PMT), providing the user the maximum signal and lowest background possible for glow luminescence reporter gene assays.

The SpectraMax® M5 utilizes a single monochromator design for UV/VIS Absorbance, allowing the user to maximize sensitivity and tunability, and also uses patented PathCheck® Pathlength Measurement Technology: the only temperature independent pathlength correction for microplates. The M5 can read volumes down to 2uL with the uMax Low Volume Plate.

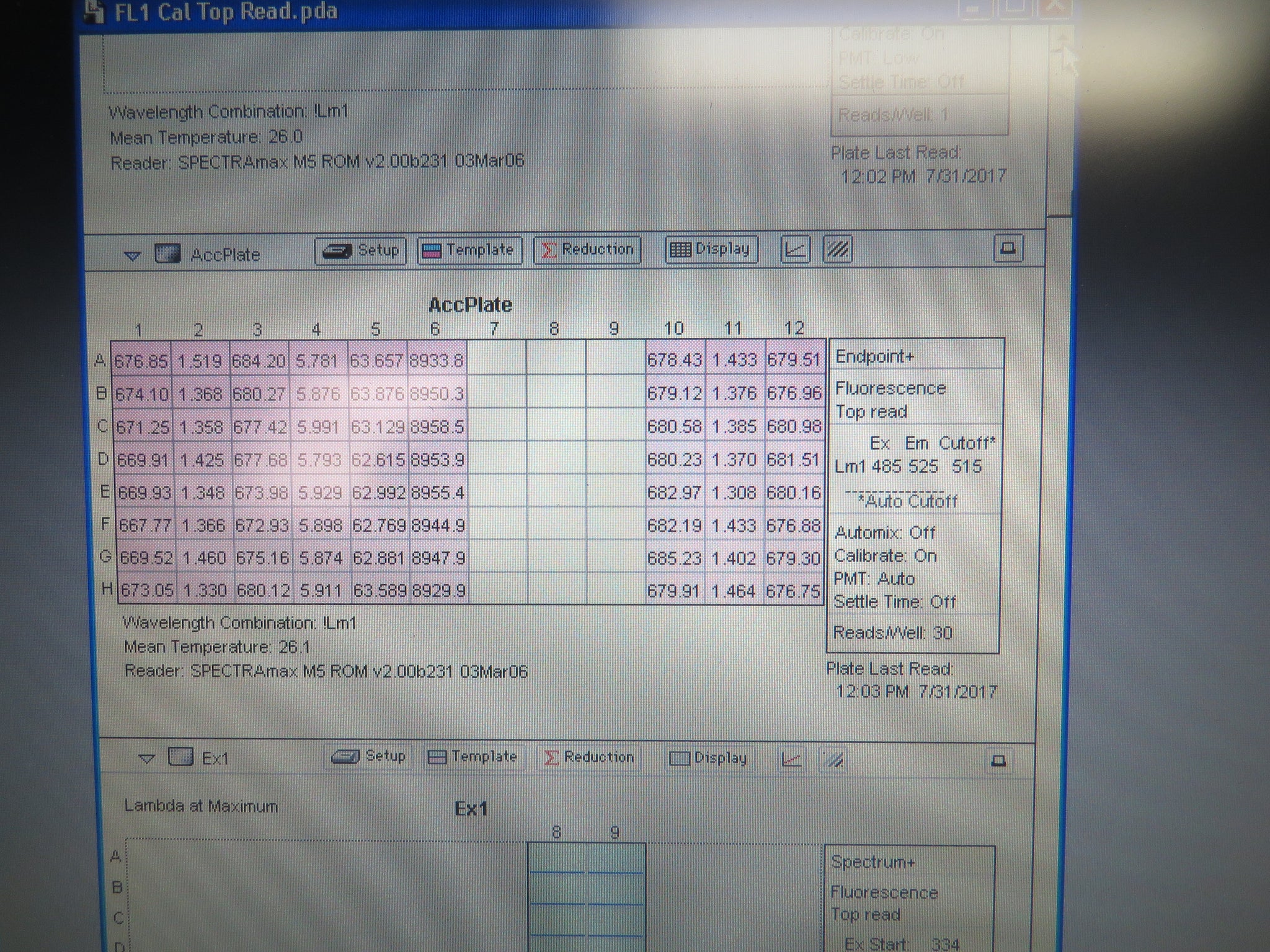

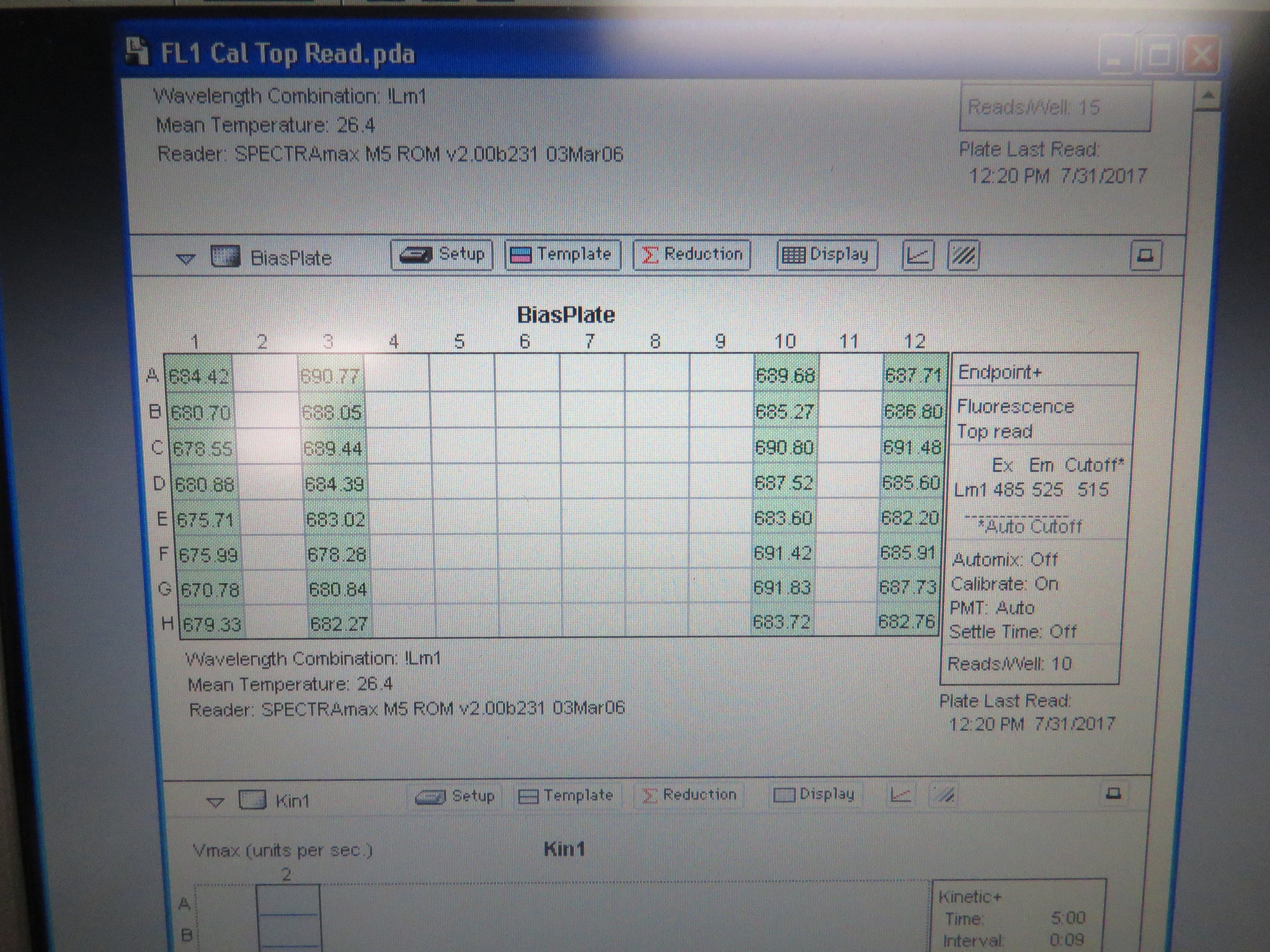

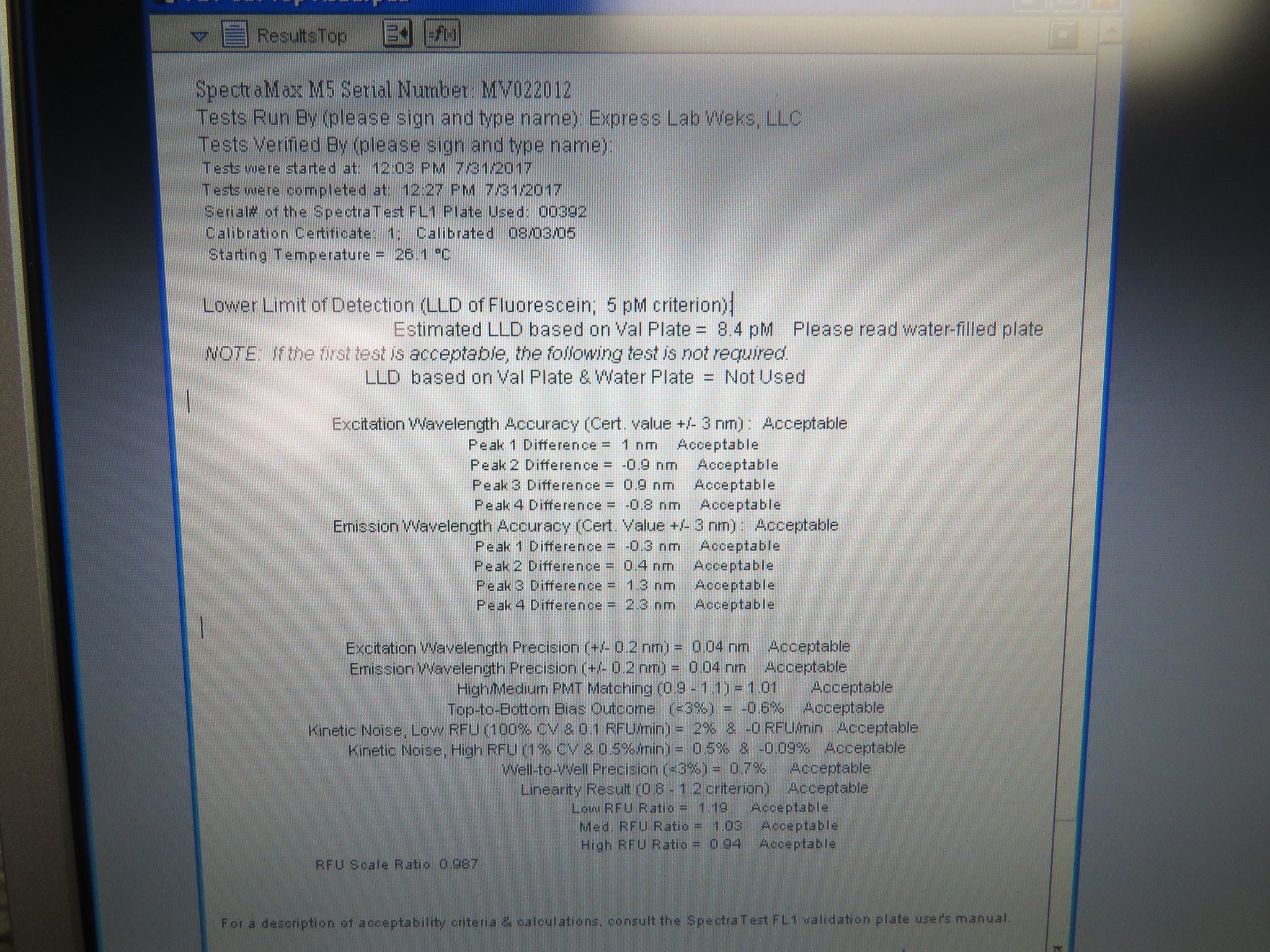

Seller refurbished. Instrument is in excellent functional and physical condition. Calibration plates where used to verify functionality.

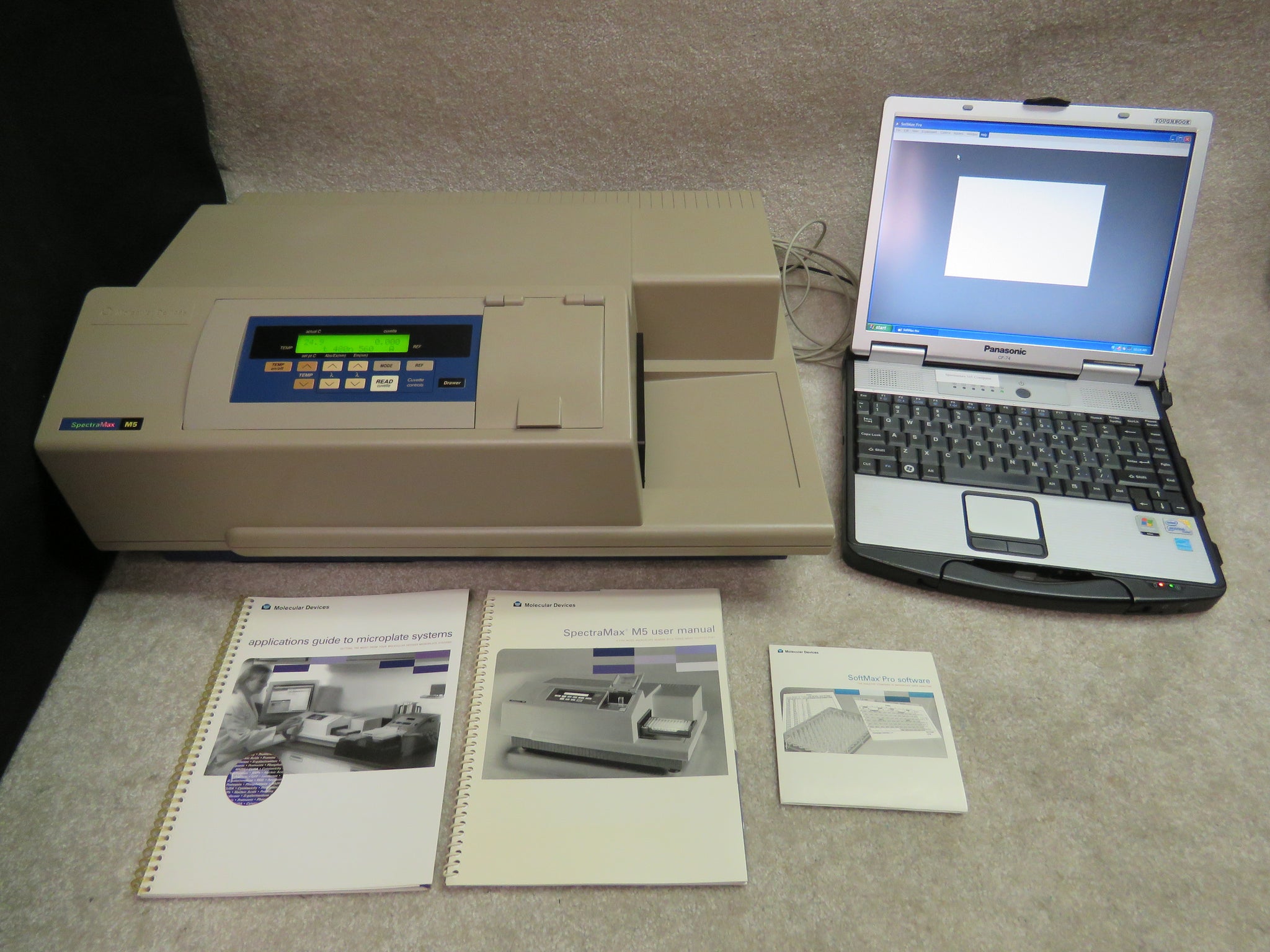

  • Spectramax M5 Multi-Mode Microplate Reader
  • Laptop computer with licensed version of Softmax Pro version 4.8 installed

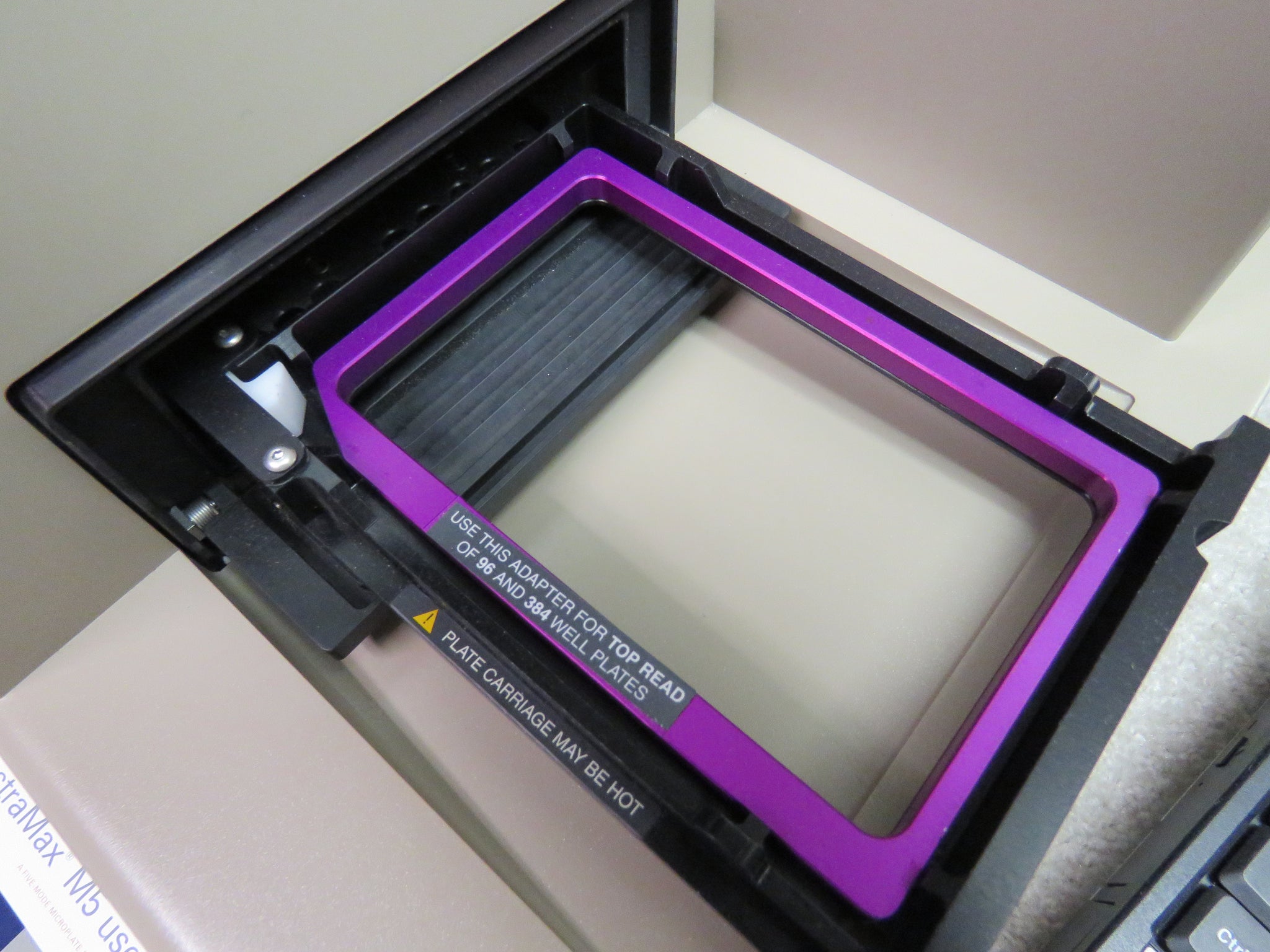

  • 96 and 384 well plate adapter
  • User manuals
  • Original SoftMax Pro 4.8 software CD with license
  • Power and interface cables


With your purchase, we offer the option for custom, white glove, delivery of the instrument from our warehouse to your laboratory. Our courier will deliver and place the instrument at your desired location. This service is offered at no additional expense beyond the standard shipping charge for the item.

Please note, our courier team is very busy delivering quality instruments with a smile! If you choose the white glove delivery option, we will schedule your item for delivery as soon as possible.


30 Day warranty. We pledge to offer the best service and warranty to all of our customers! We are extending a 30 Day warranty on this item. This is our way of saying thank you for allowing us to serve you.


This is a genuine product from this manufacturer.
