Olympus BH-2 BHTU microscope with 4 objectives, 2 condensers (Abbe, Darkfield), case

Olympus

$1,900.00
SKU: OLYMPUSBH2

Web Information

"The BH2, from the high sales volume BH series, debuted in 1980. The company developed the BH2 Series ahead of the AH2 Series, building a microscope that approached the optical performance of overseas products and provided even greater freedom in modular combinations. The objective lens can be described as the heart of a microscope. Until the BH2 Series debut, microscopes tended to have short barrels, with a focal length of 36.65mm and a mechanical tube length of 160mm. Olympus then developed a long barrel (LB) objective lens series (1x–100x oil) with a focal length of 45mm and a mechanical tube length of 160mm that could be used for everything from regular bright field observations to polarization, fluorescence, and phase contrast microscopy. As a result, the BH2 Series captured the highest share of the global market. The company's main microscopy revenue stream was therefore on more solid ground. In 1981, Olympus developed the IC Series featuring an LB objective lens for industrial applications and the universal vertical illuminator UMA for additional industrial applications. The company then developed further improved models for the BX and CX Series, utilizing a UIS objective lens."

D Plan Objectives

With D Plan objectives, field flatness is guaranteed up to  F.N.20. Ideal for photomicrographic purposes, they are widely used in research, educational and routine work.

Condition

Seller refurbished. All functions working. Shows very minimal signs of usage. Pictures show actual slide content thru the eyepieces via various objectives.

Includes

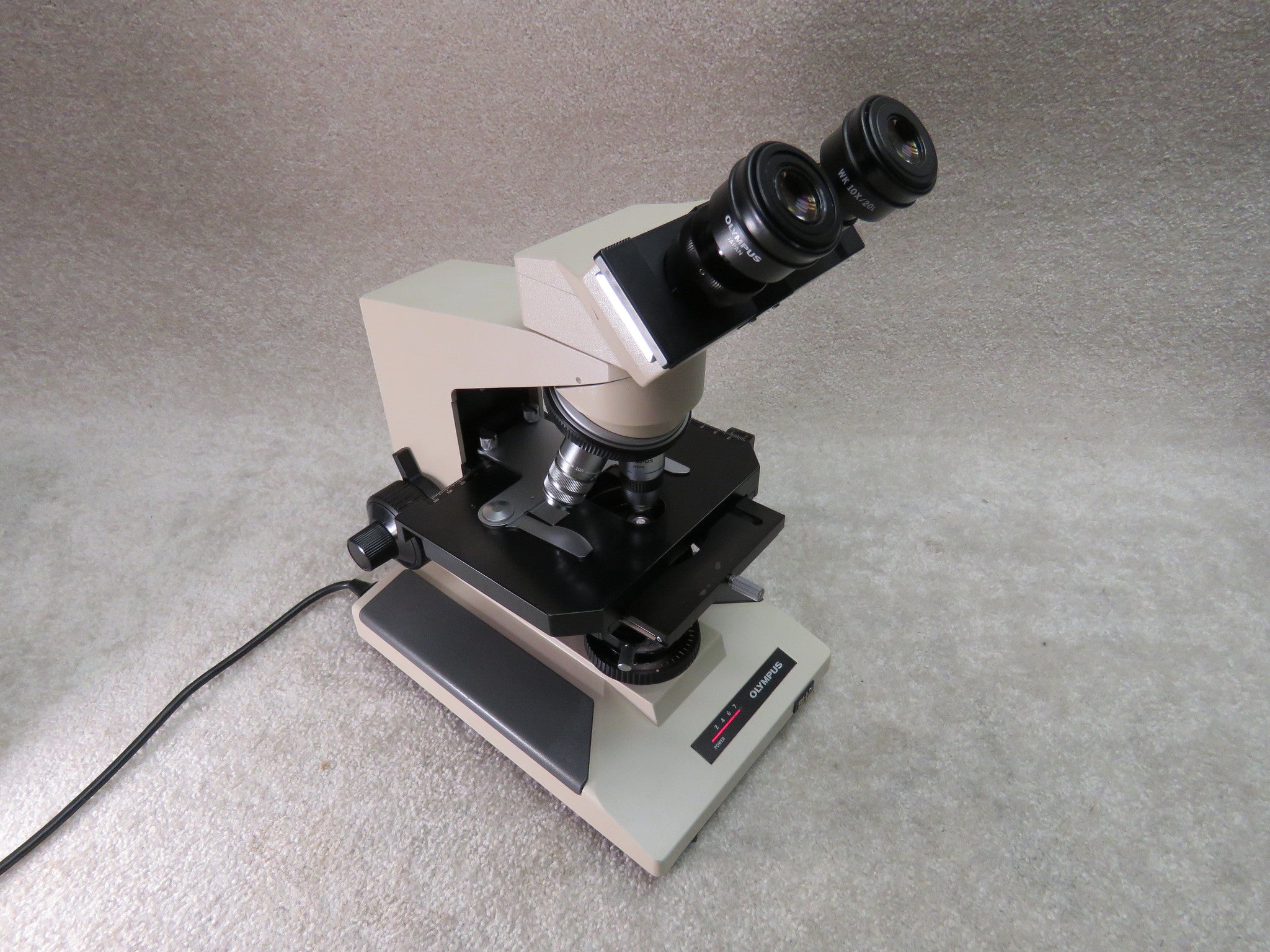

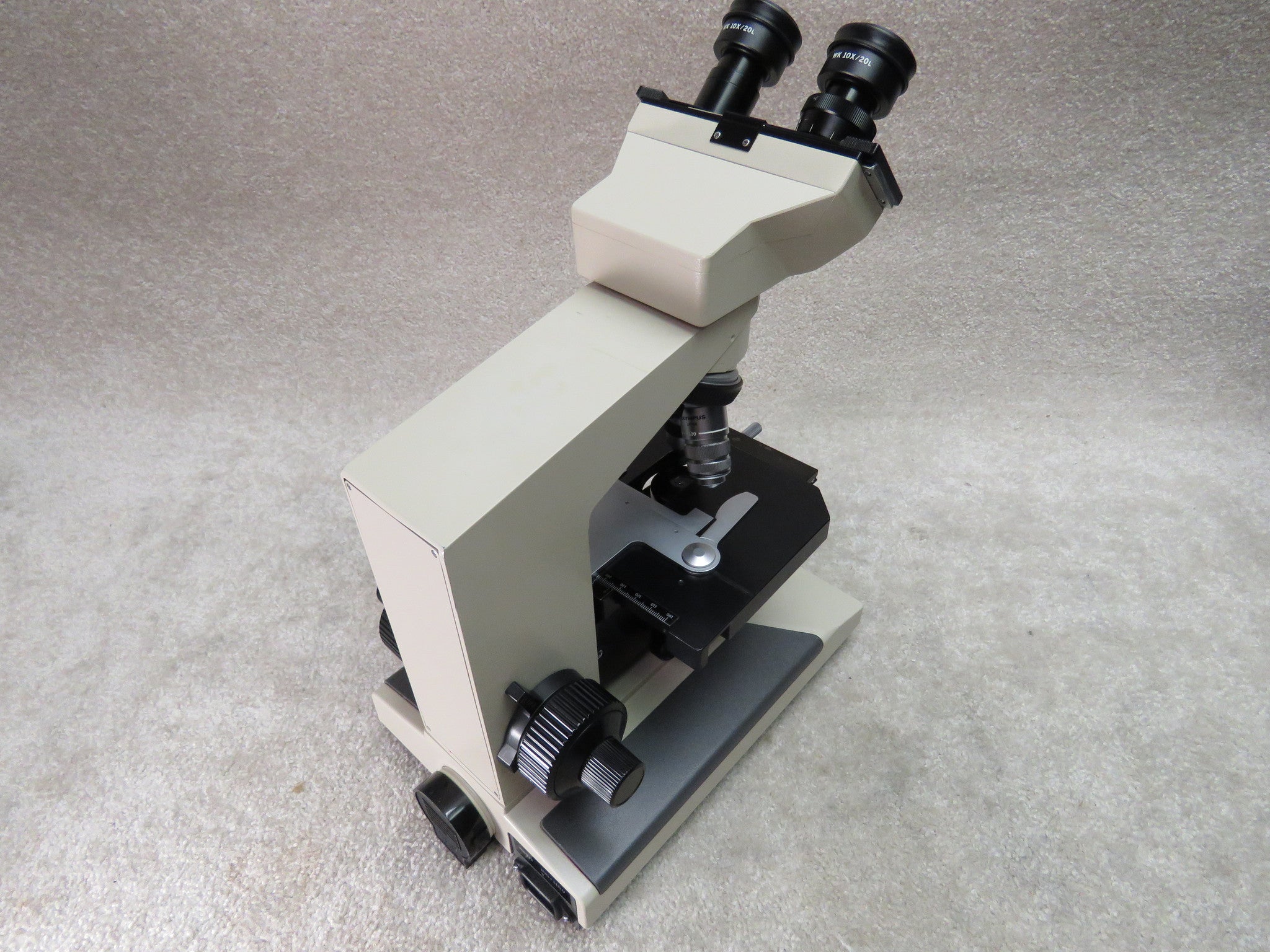

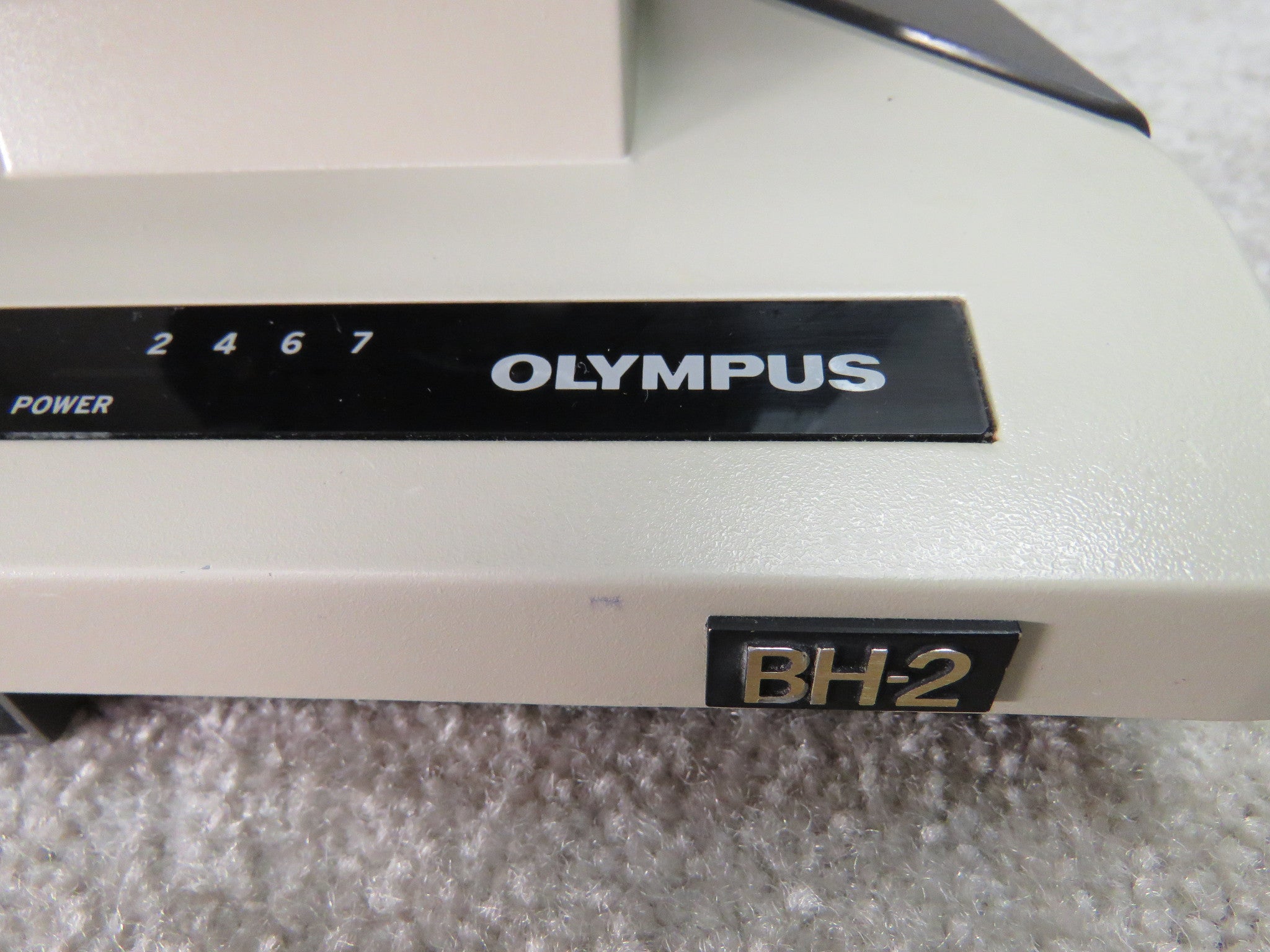

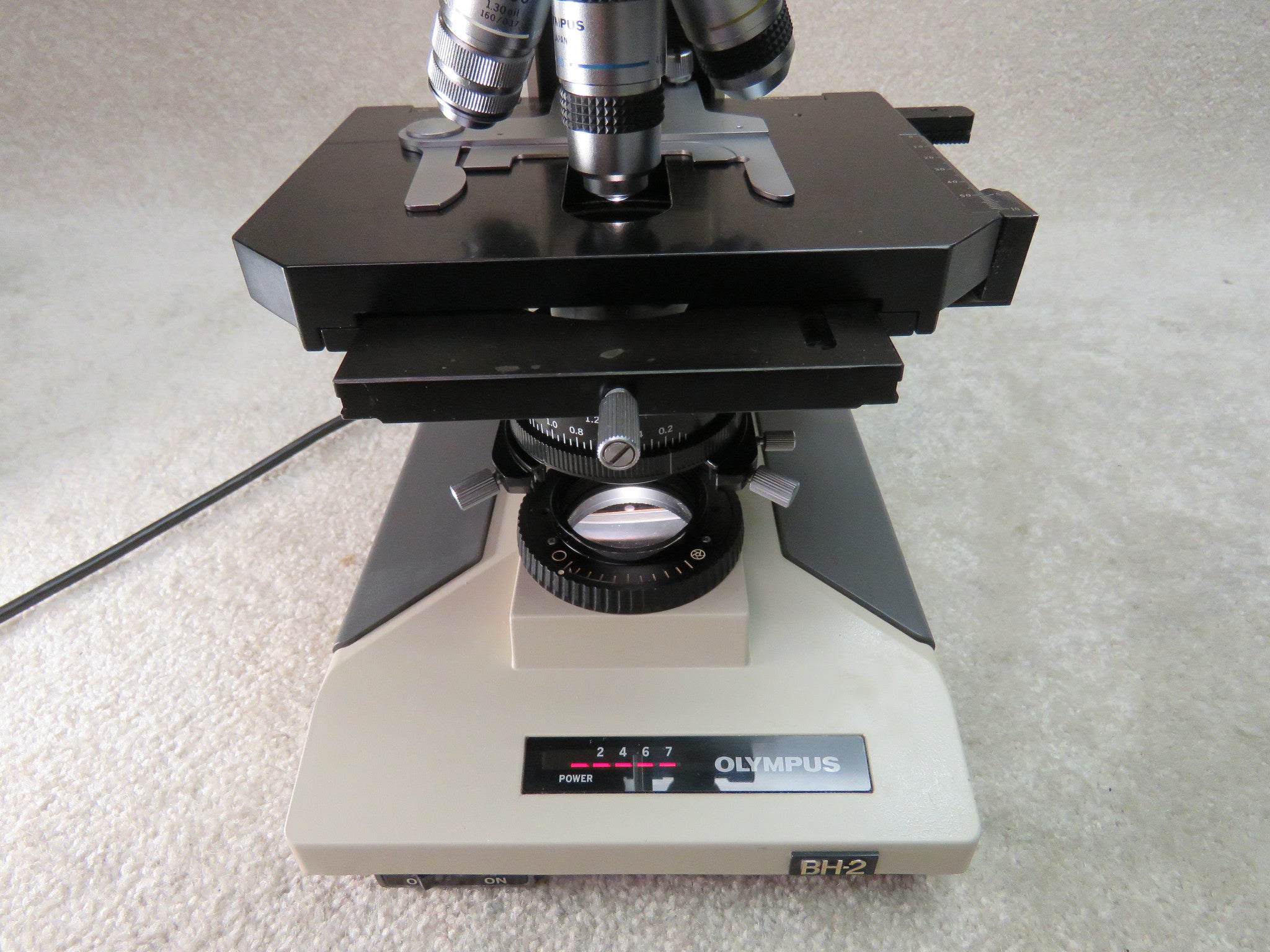

    • Olympus BH-2 BHTU microscope
    • BH2-BI30 observation tube

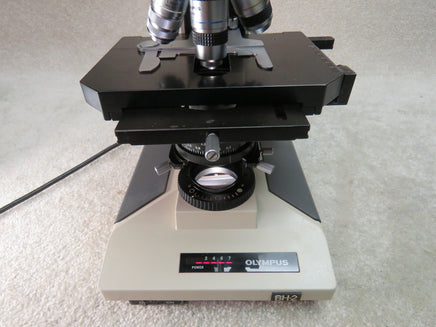

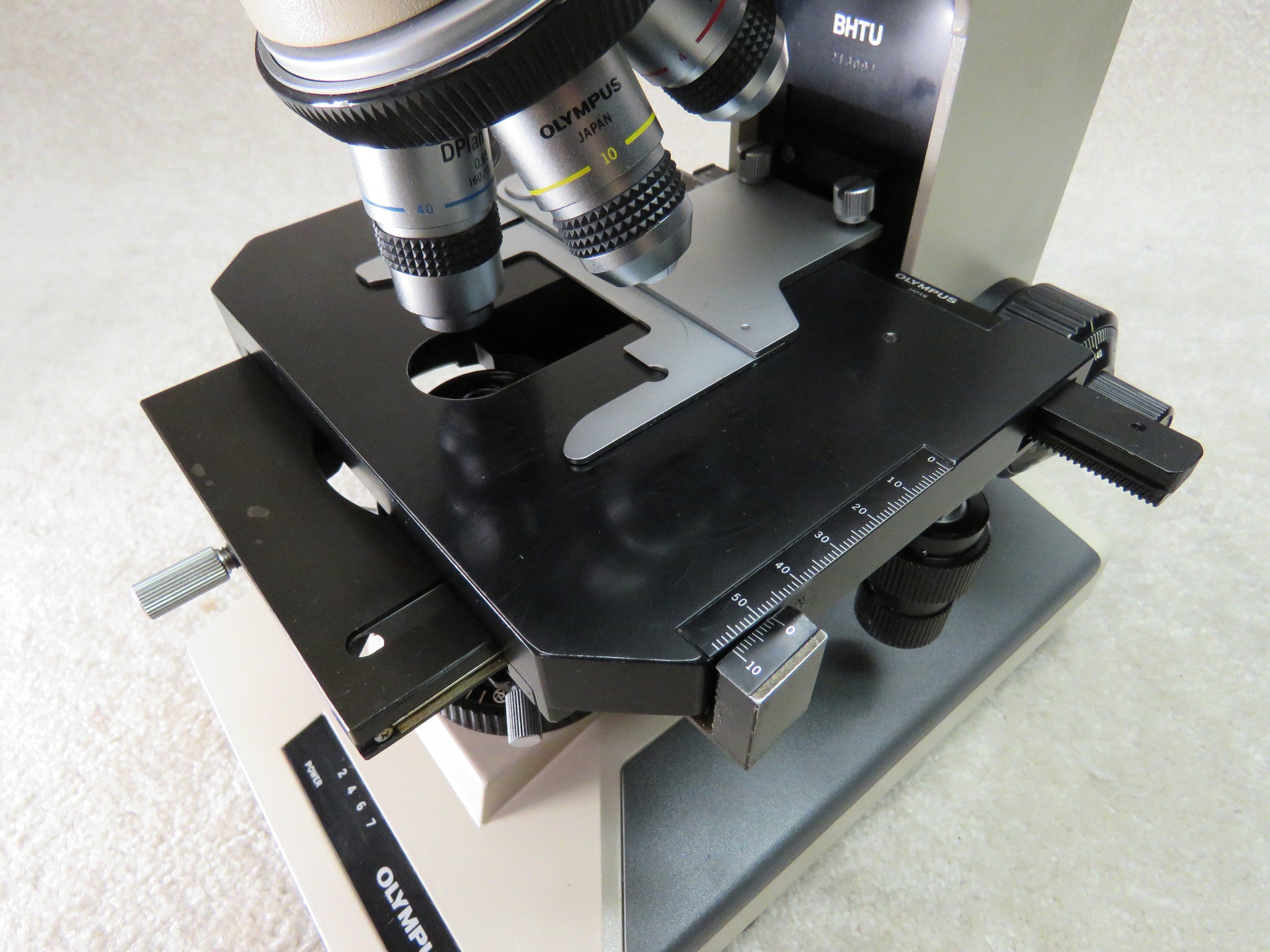

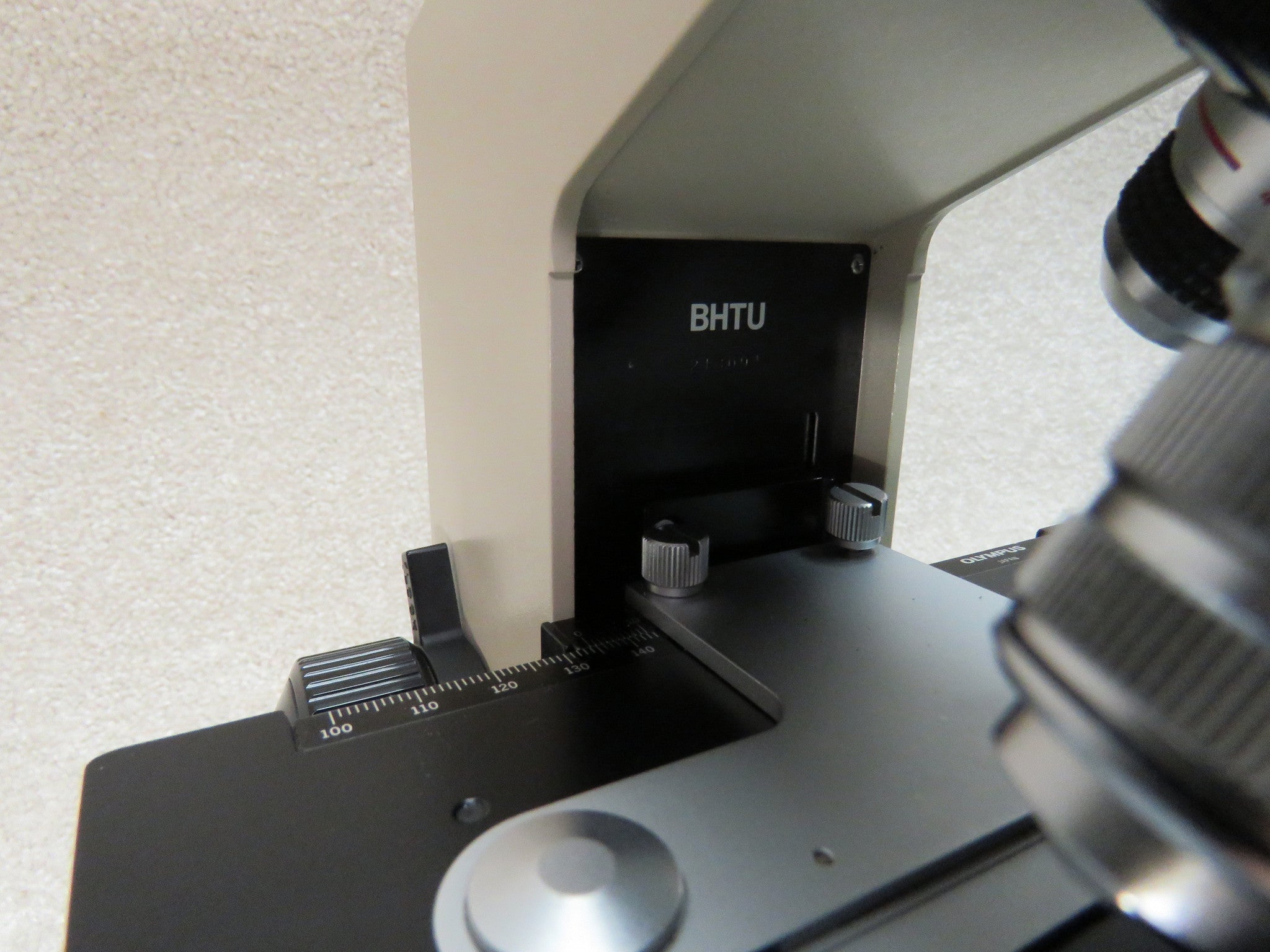

    • BH2-SH stage

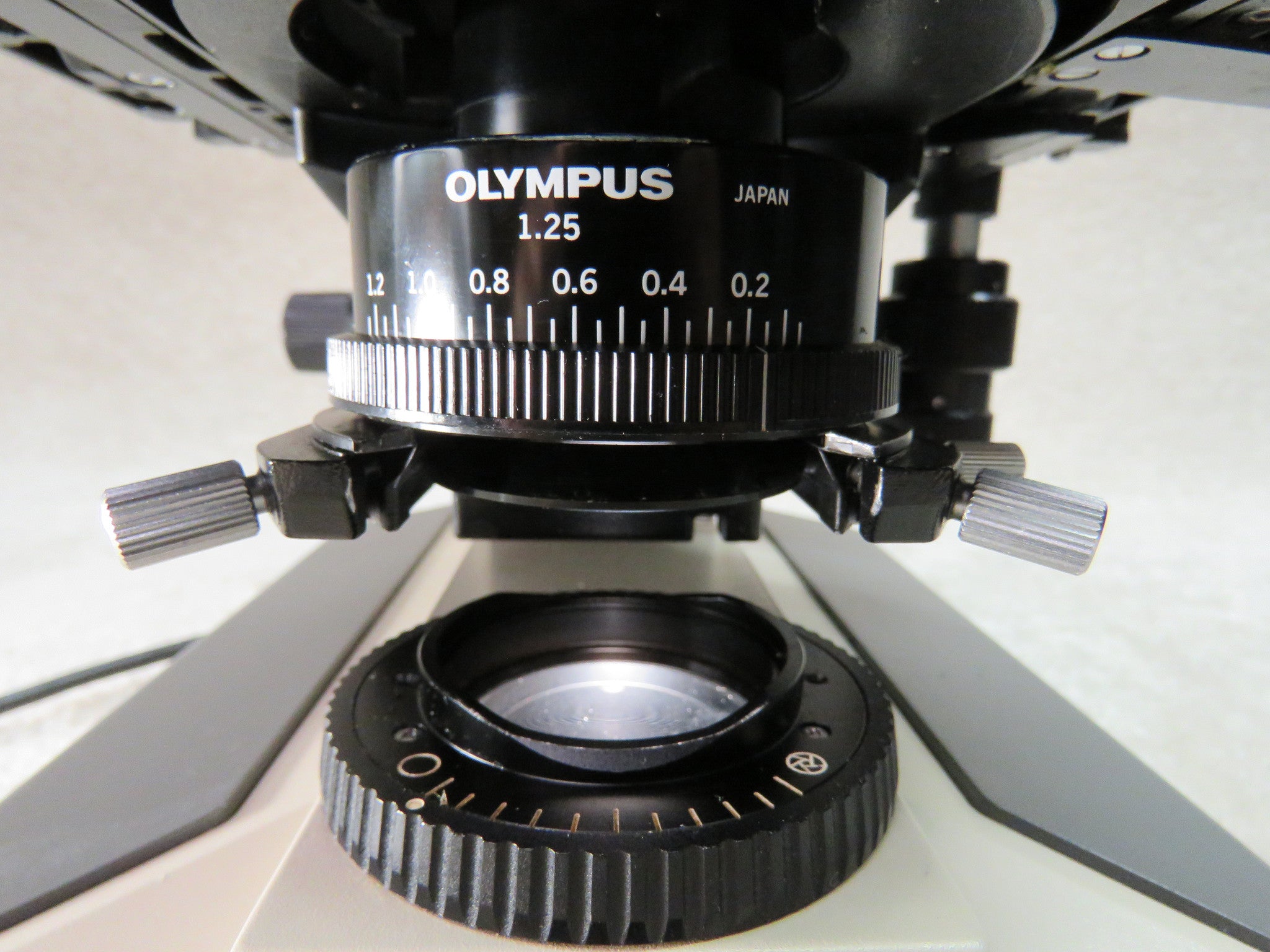

      • Olympus Abbe condenser 1.25 iris

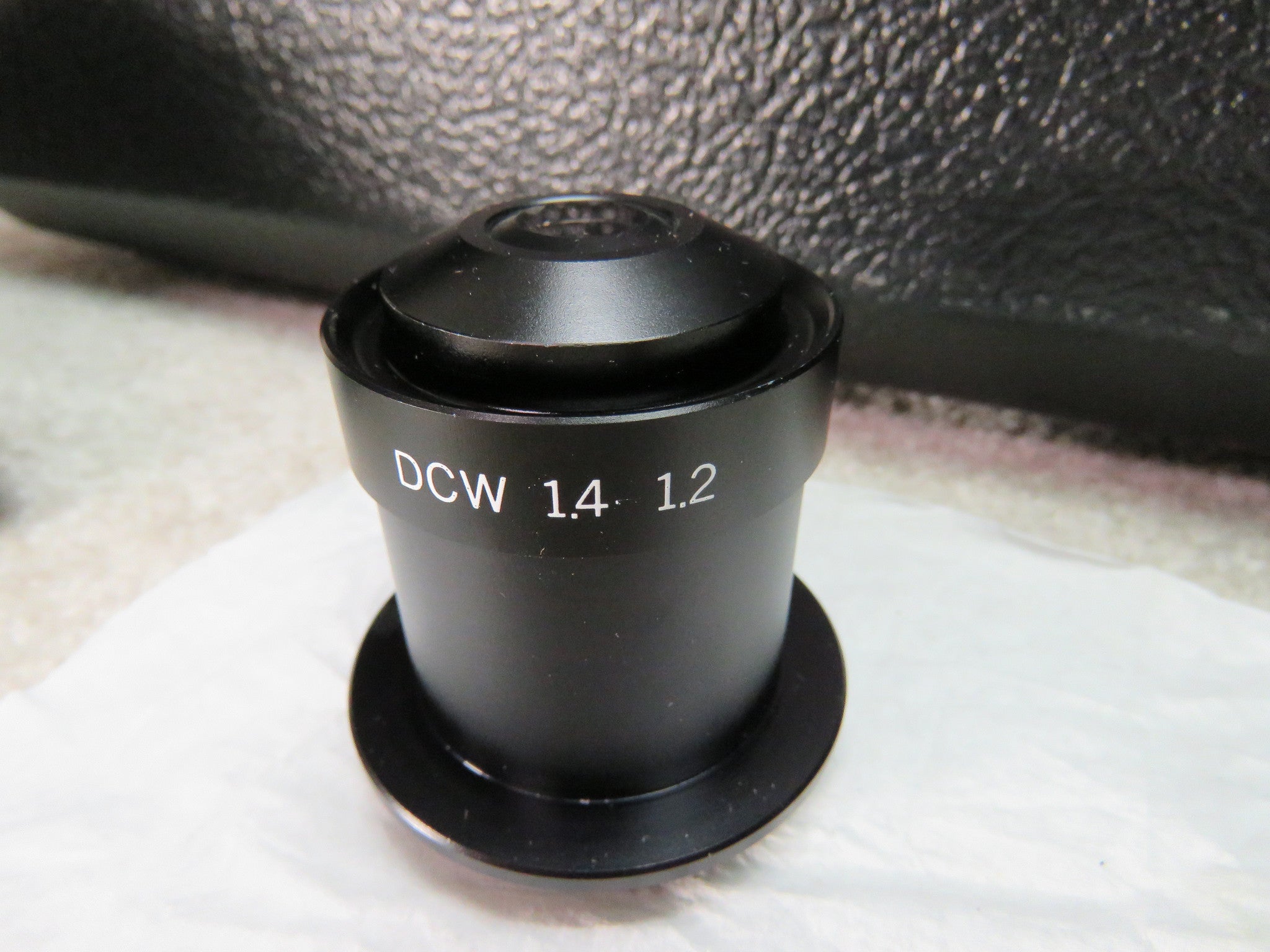

        • Olympus Darkfield condenser DCW 1.4 - 1.2

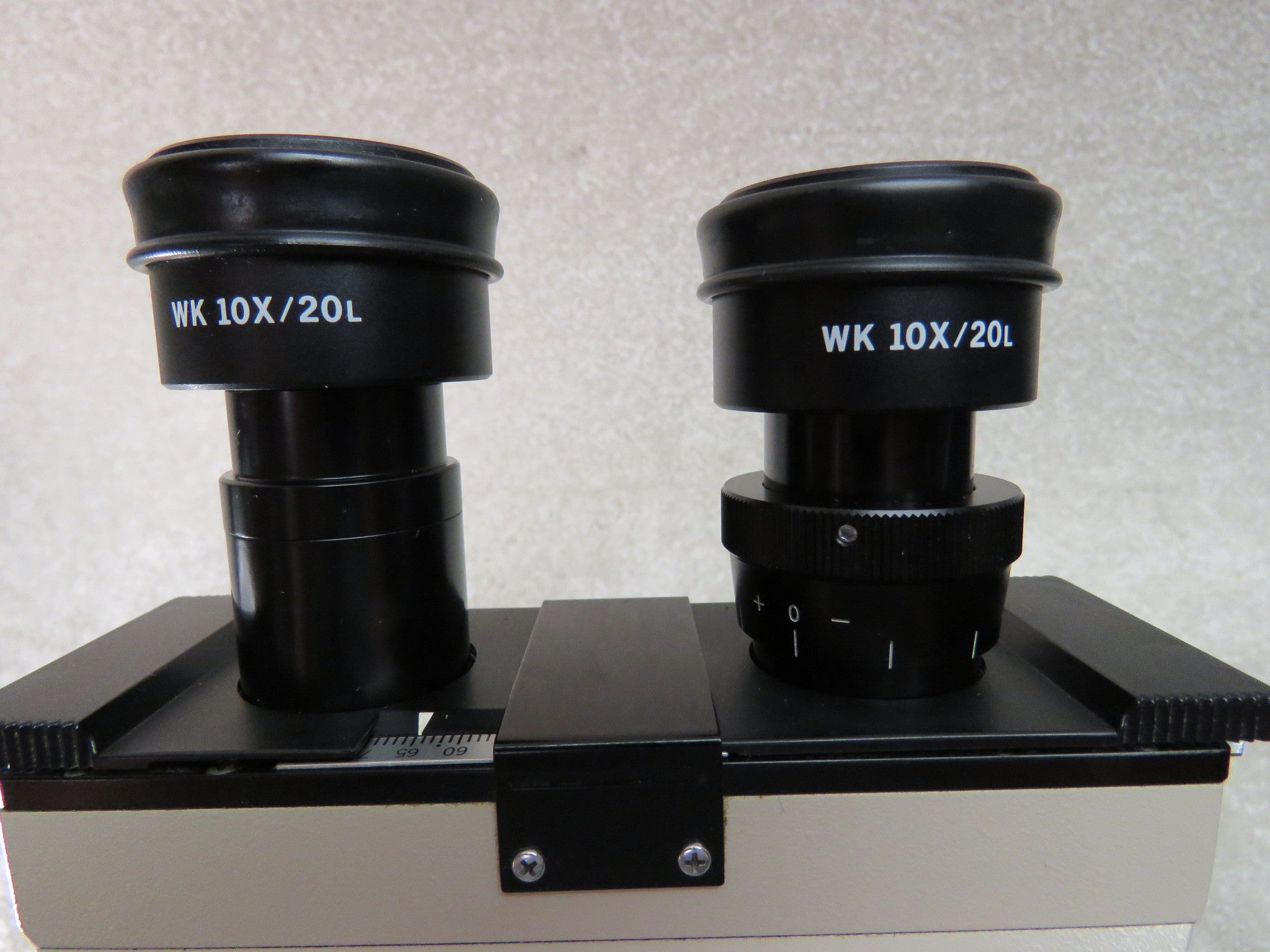

          • (2) WK 10X/20L eyepieces
            • (4) objectives installed
              • Olympus D Plan 4 0.10 160/0.17
              • Olympus D Plan 10 0.25 160/0.17
              • Olympus D Plan 40 0.65 160/0.17
              • Olympus A 100 1.30 oil 160/0.17
            • Power cord

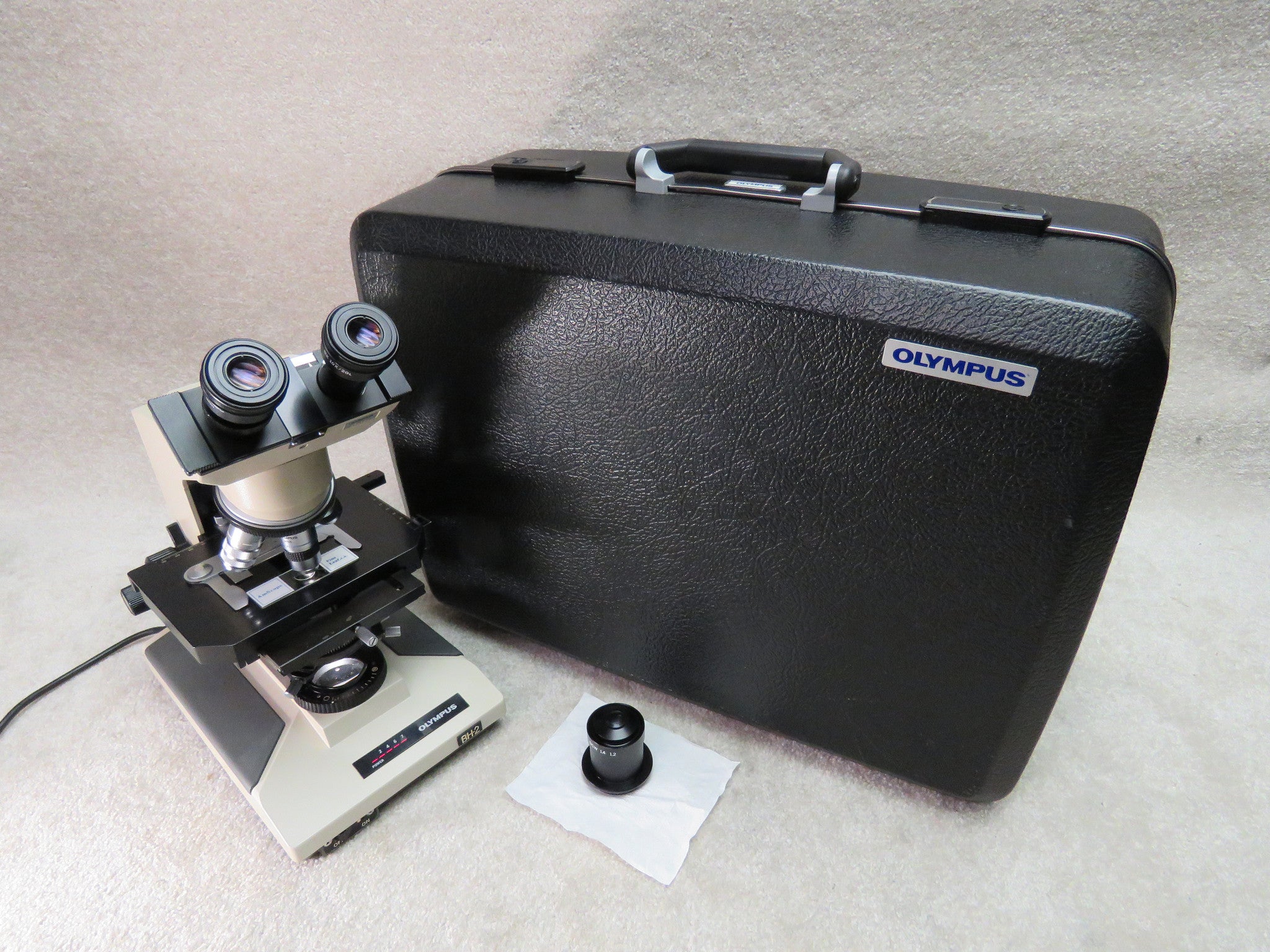

            • Olympus carry case

            LR

                  Warranty

                  30 Day warranty. We pledge to offer the best service and warranty to all of our customers! We are extending a 30 Day warranty on this item. This is our way of saying thank you for allowing us to serve you.

                  Certification

                  This is a genuine product from this manufacturer.
