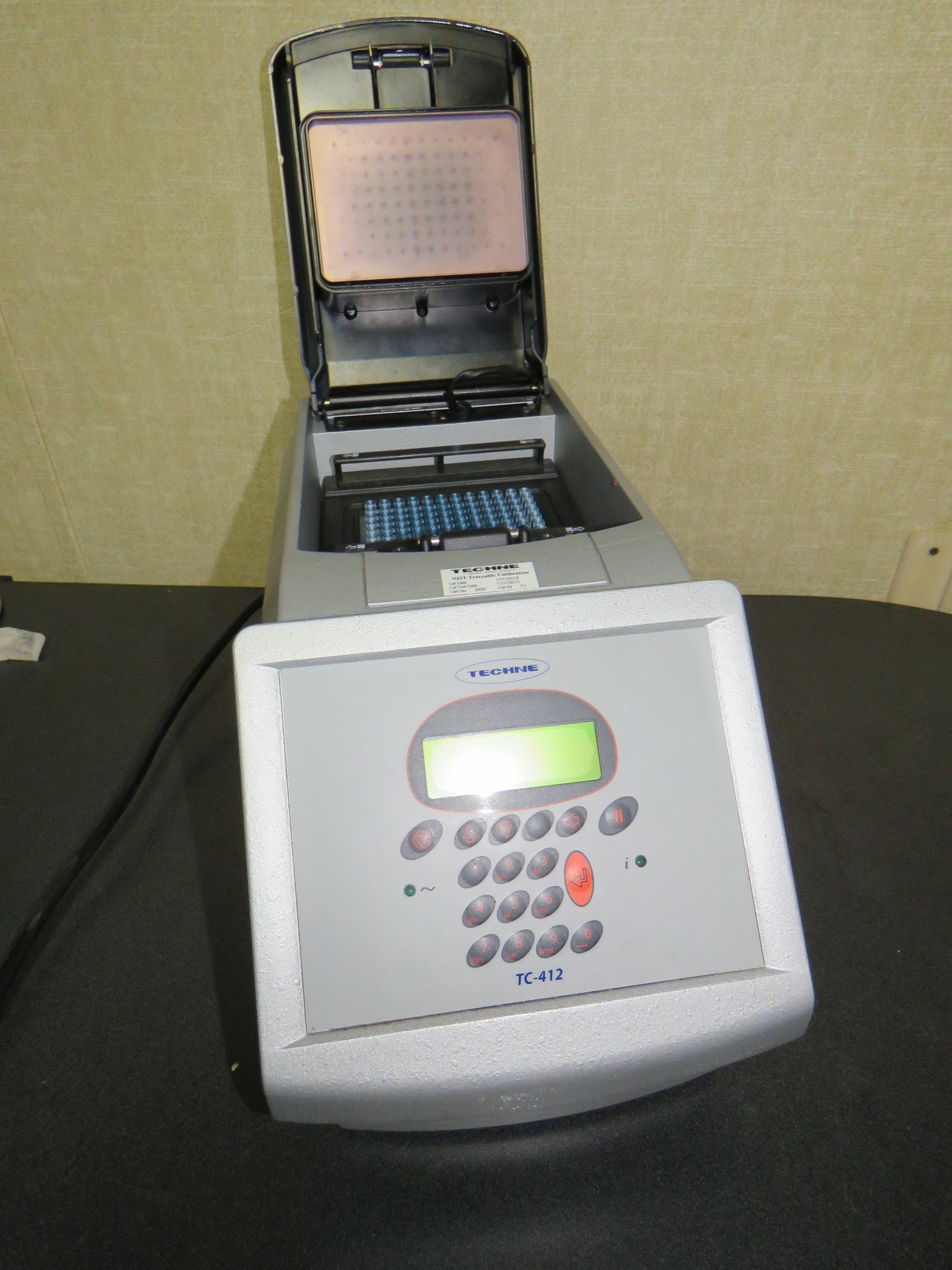

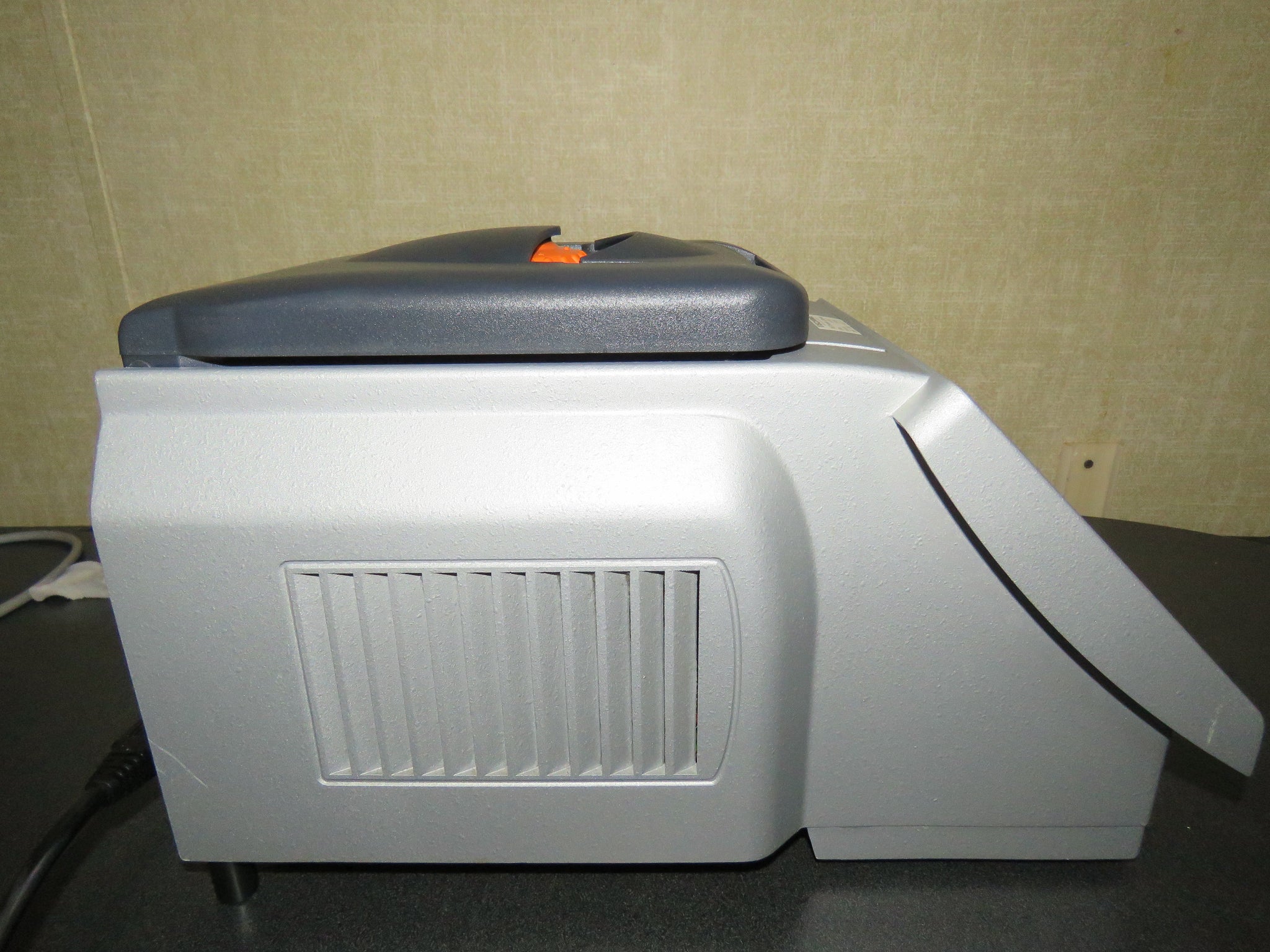

Techne TC-412 Thermal Cycler PCR 96 Well Thermocycler - Excellent working condition

Techne

$575.00

Sorry, this item is out of stock

Web Information

The TC-412 is a high performance, high sample throughput instrument at a highly affordable price.

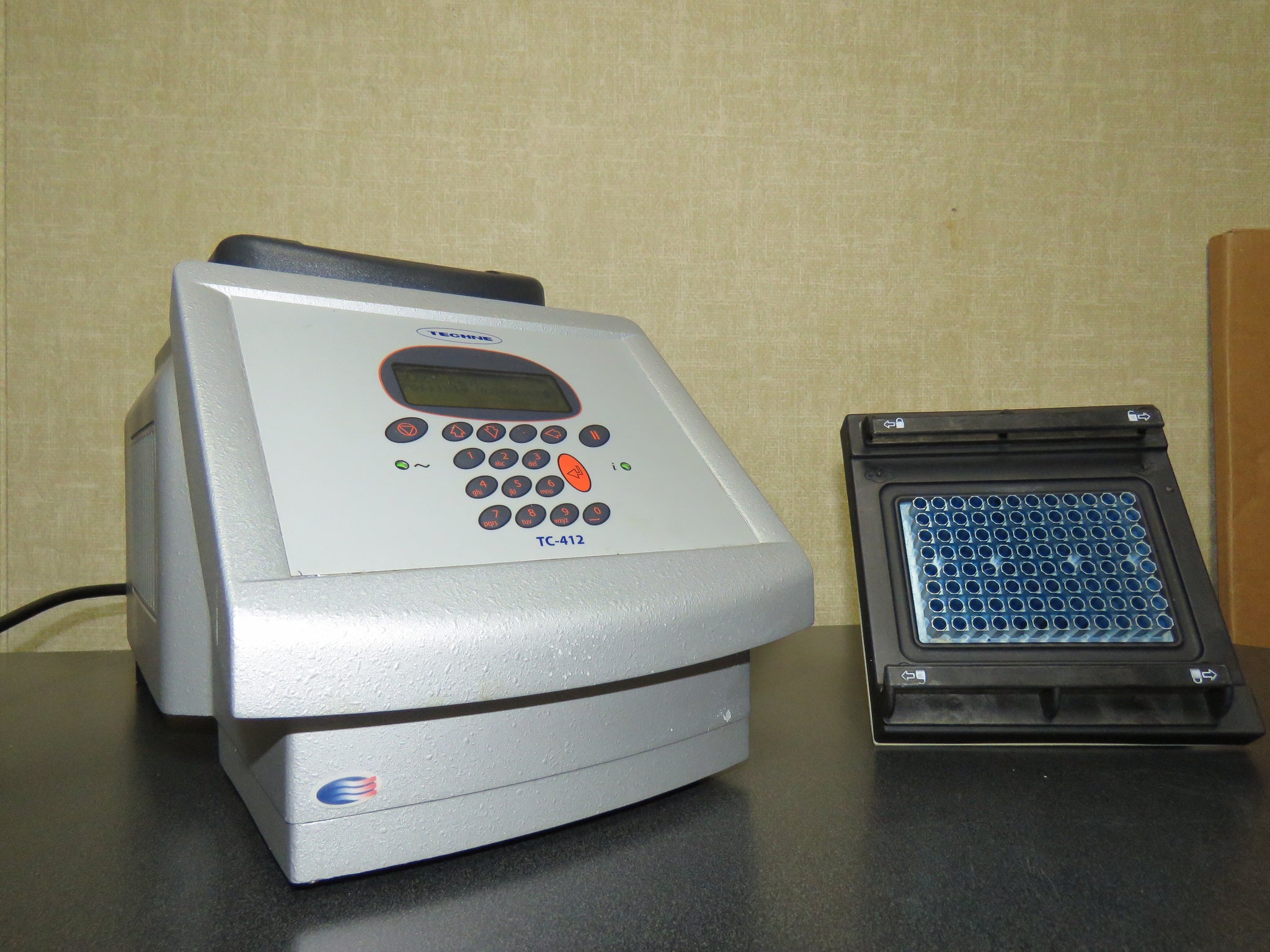

Flexible block format: The truly user-friendly fully interchangeable block system allows blocks to be exchanged in a matter of seconds without the need of any tools (60 x 0.5ml, 96 x 0.2ml, 96 x 0.2ml for fully skirted plates, 384-well or flat plate for in-situ).

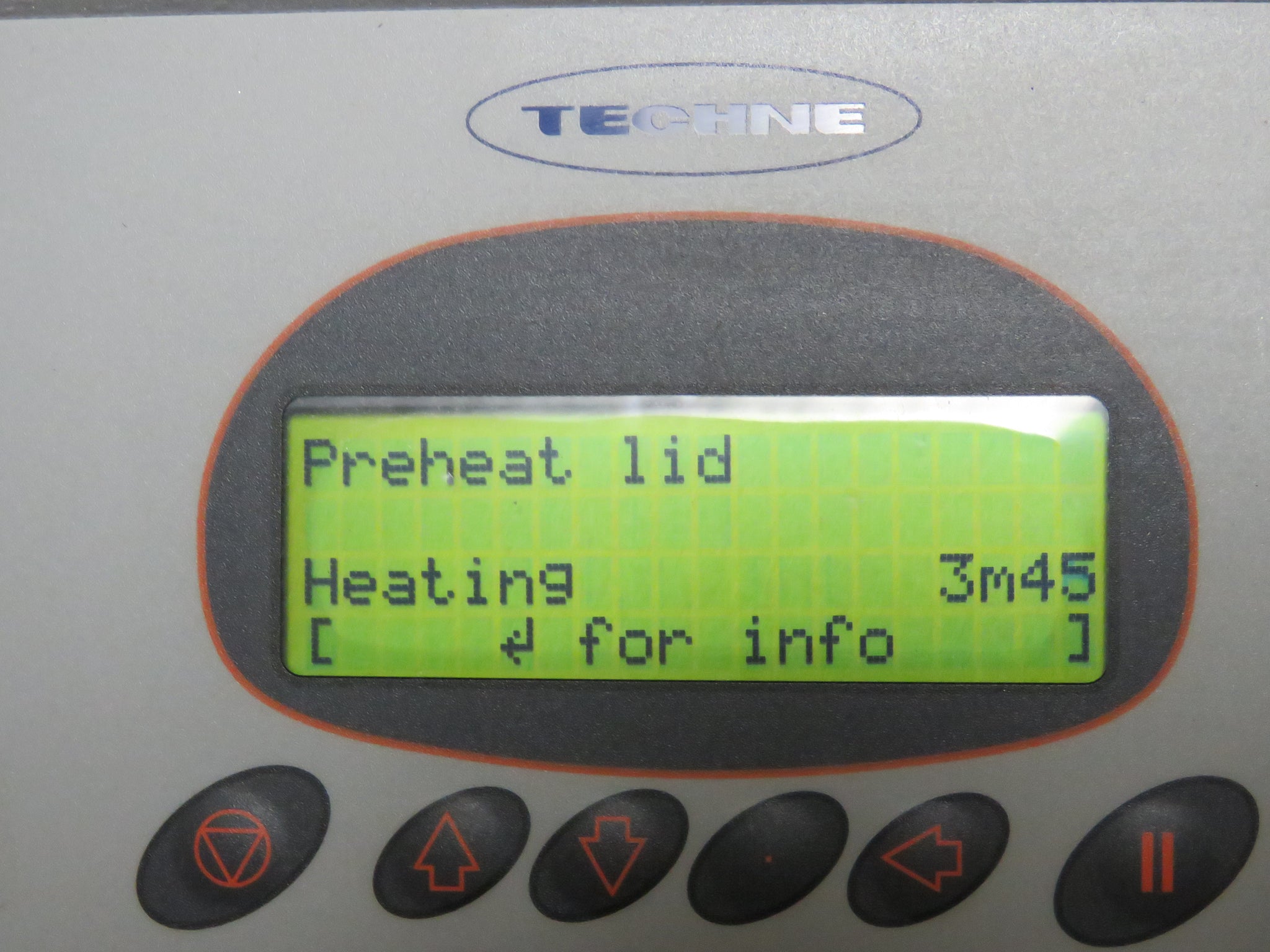

New design flexible heated lid: Defined pressure, programmable heated lid to accommodate a variety of consumables.

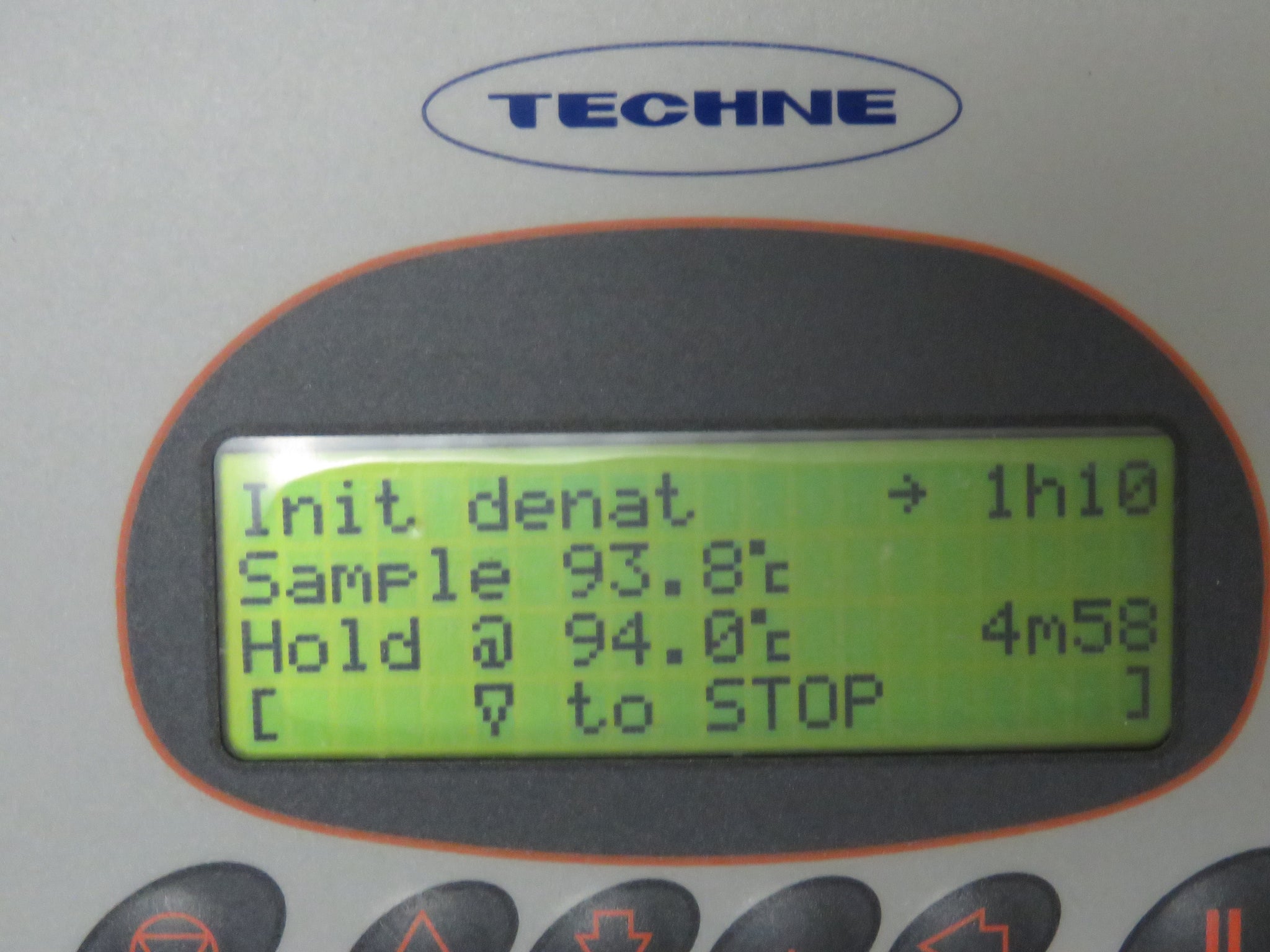

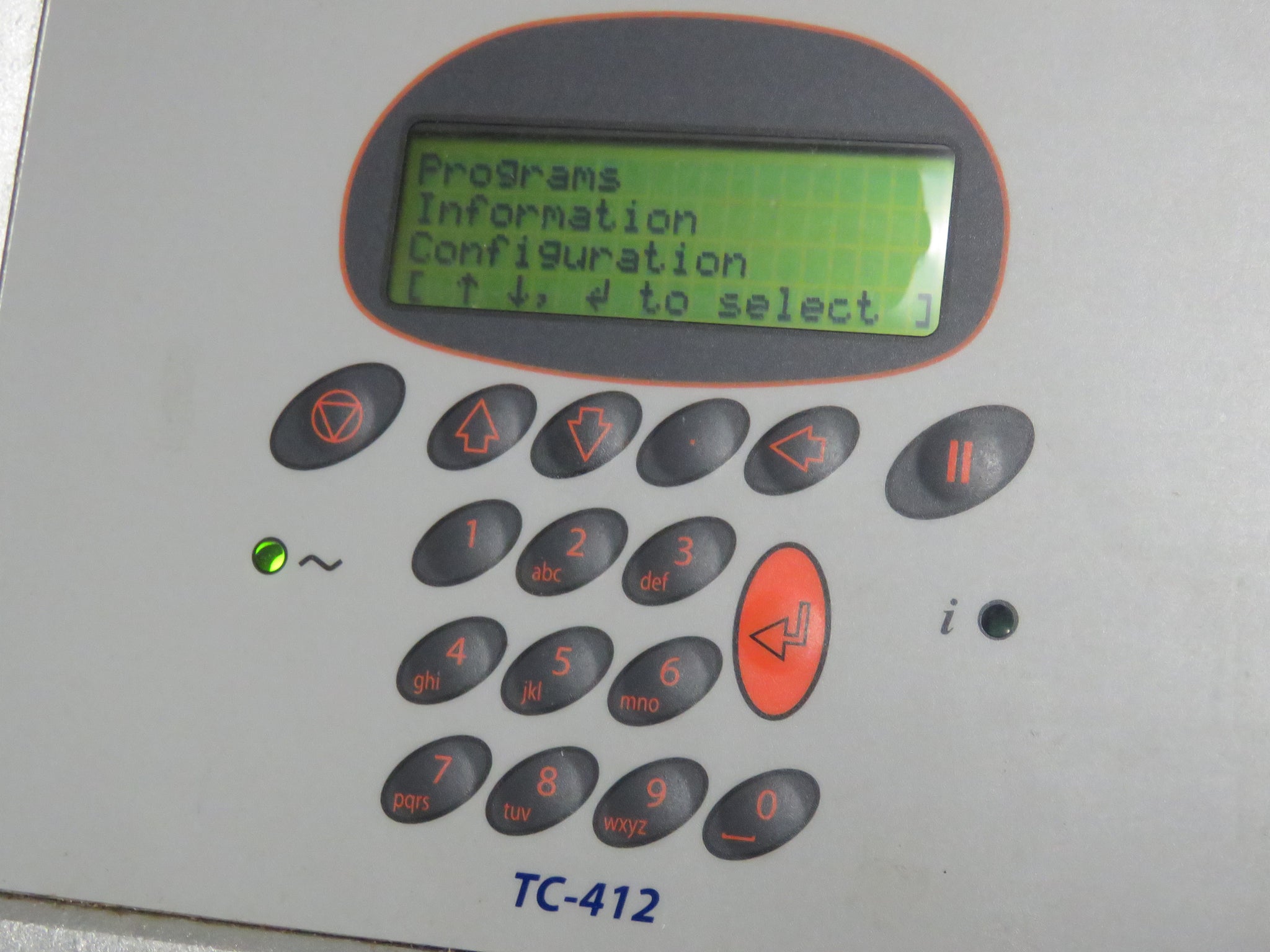

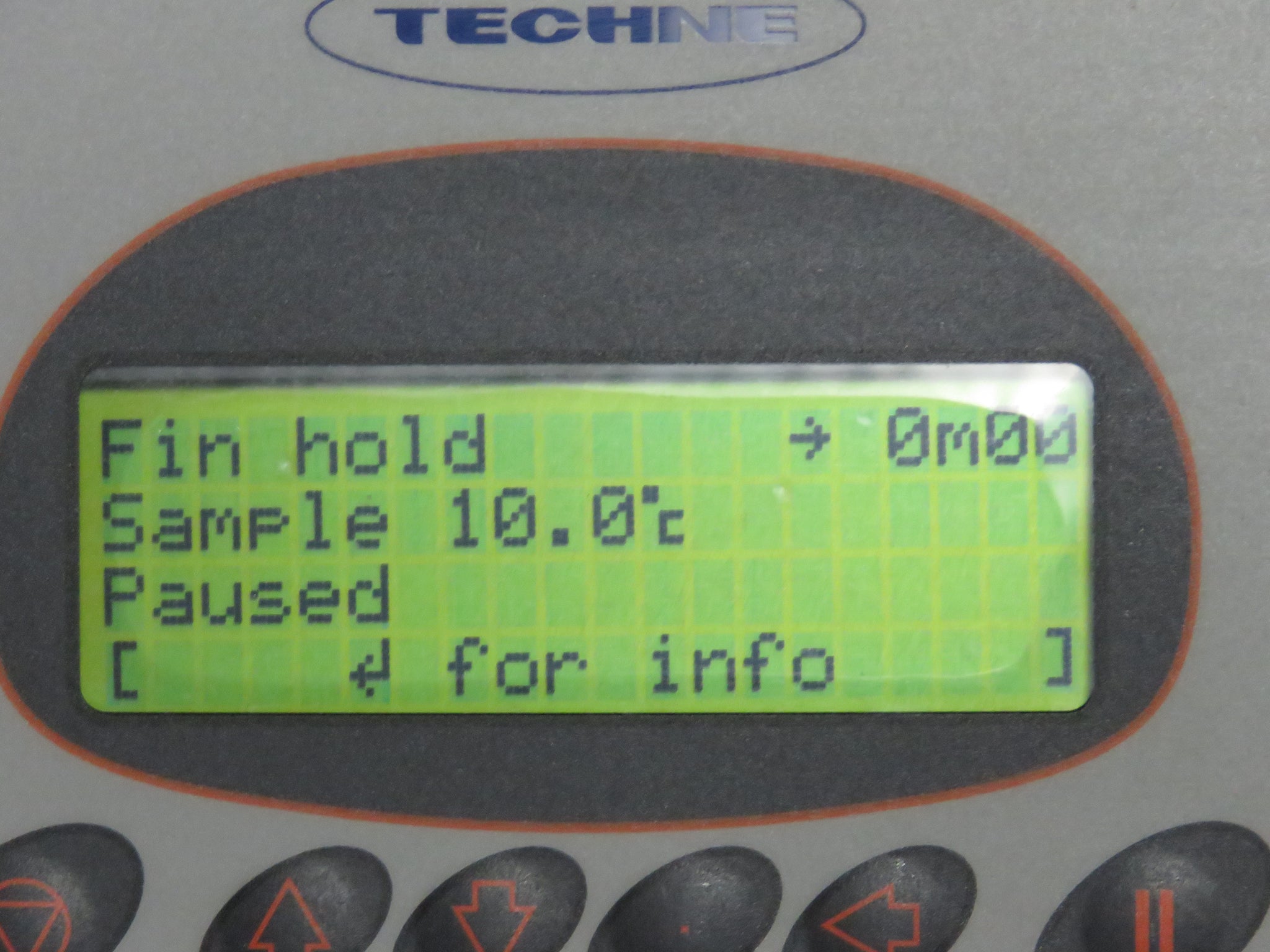

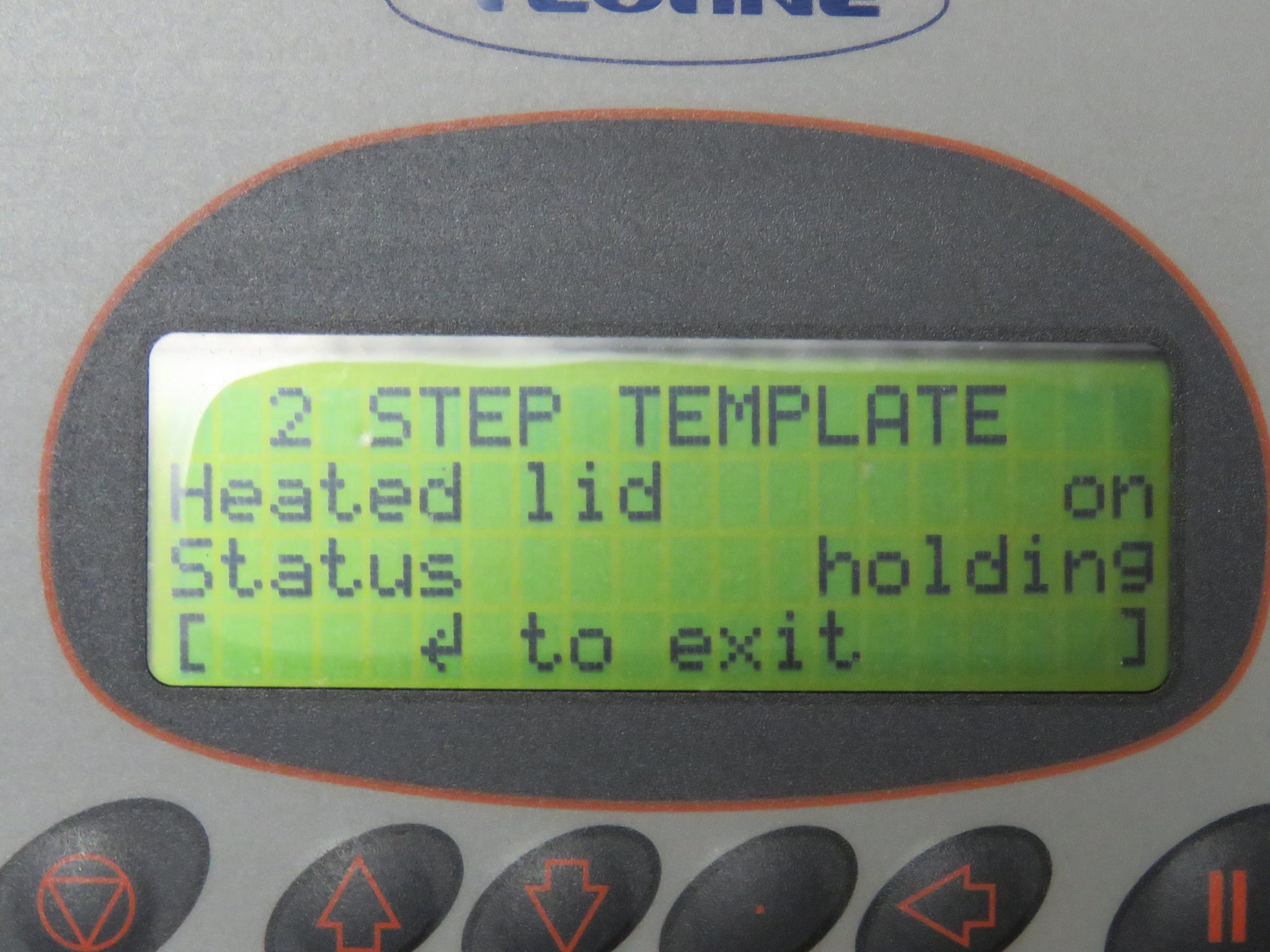

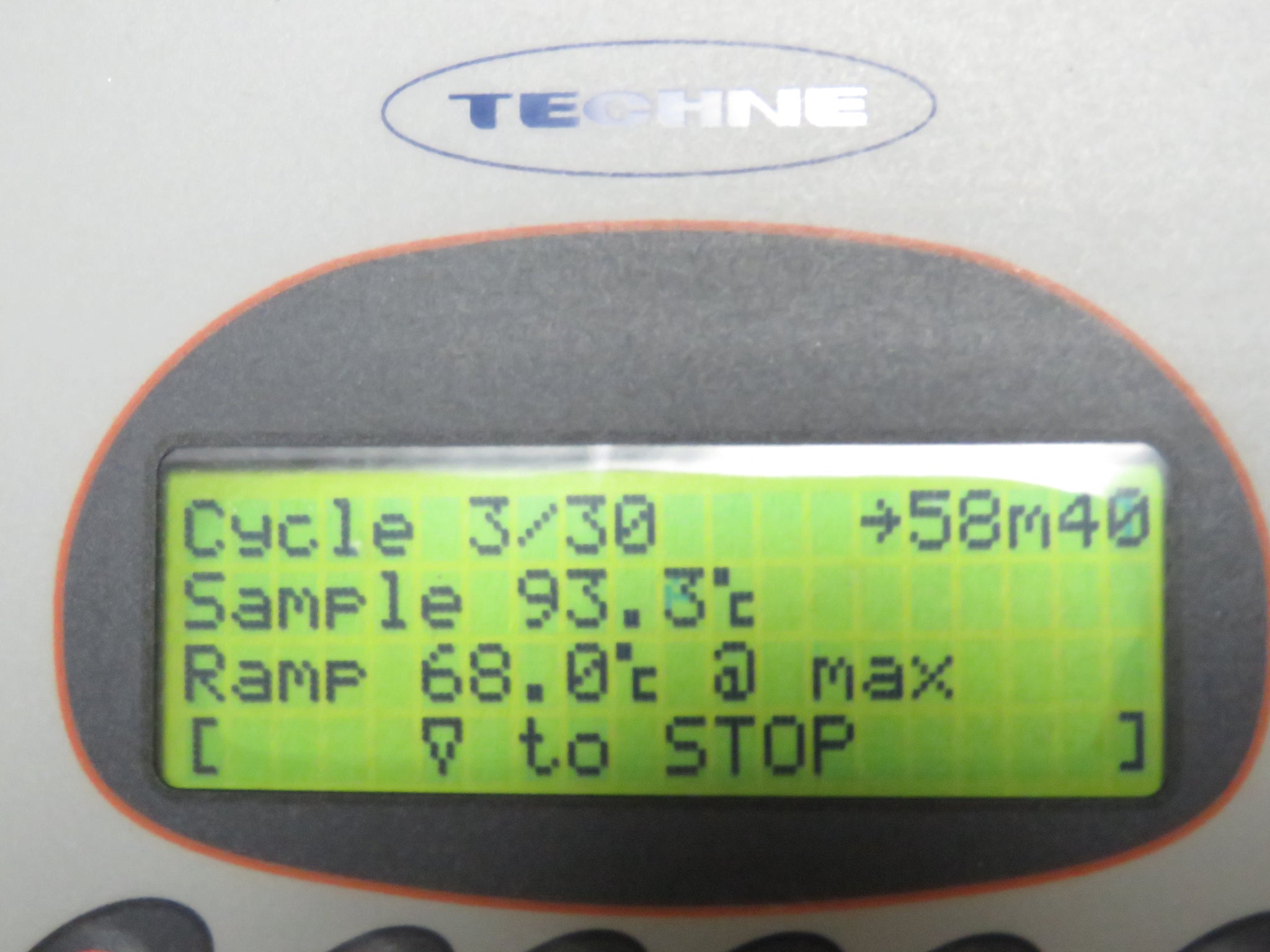

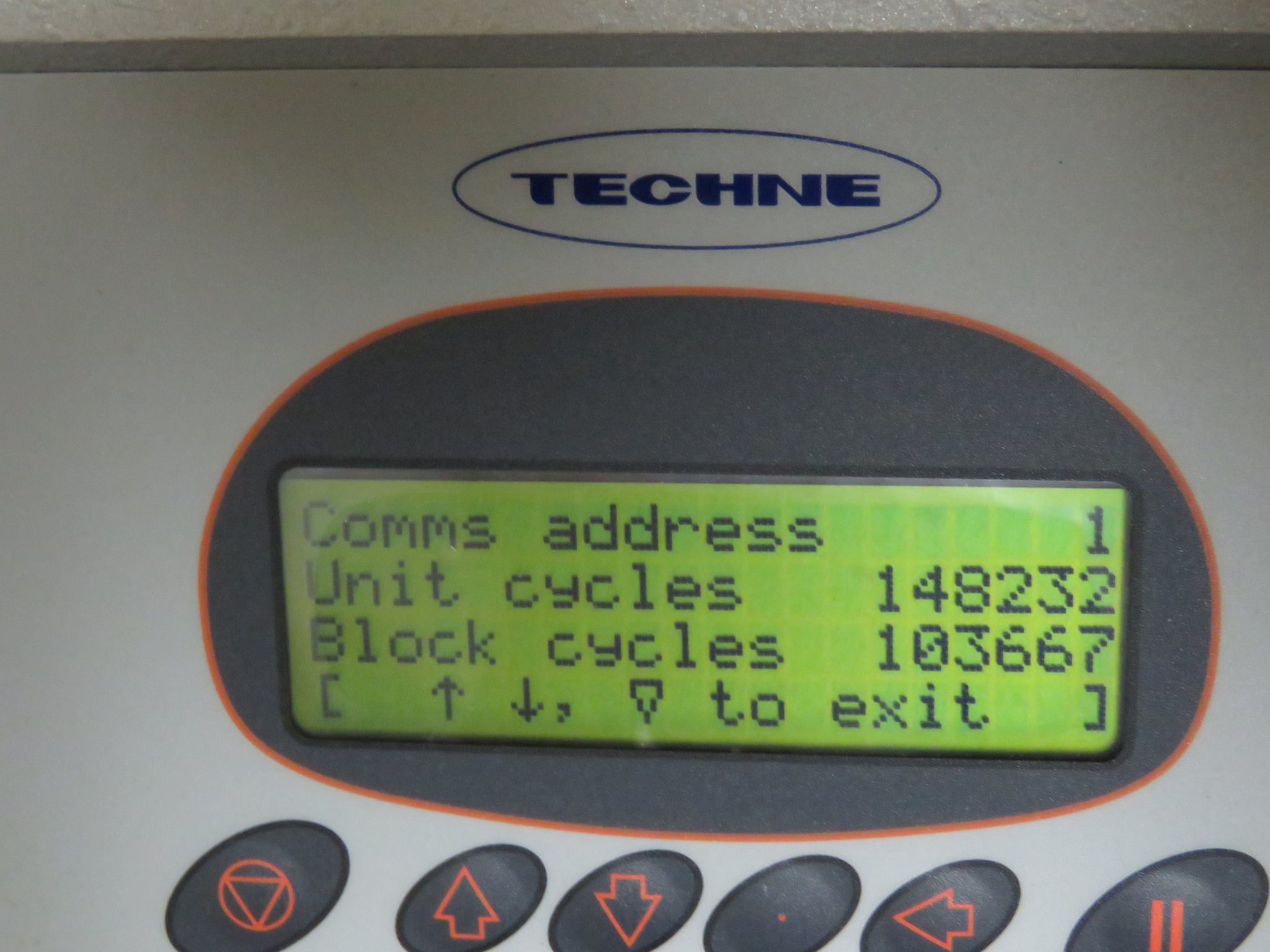

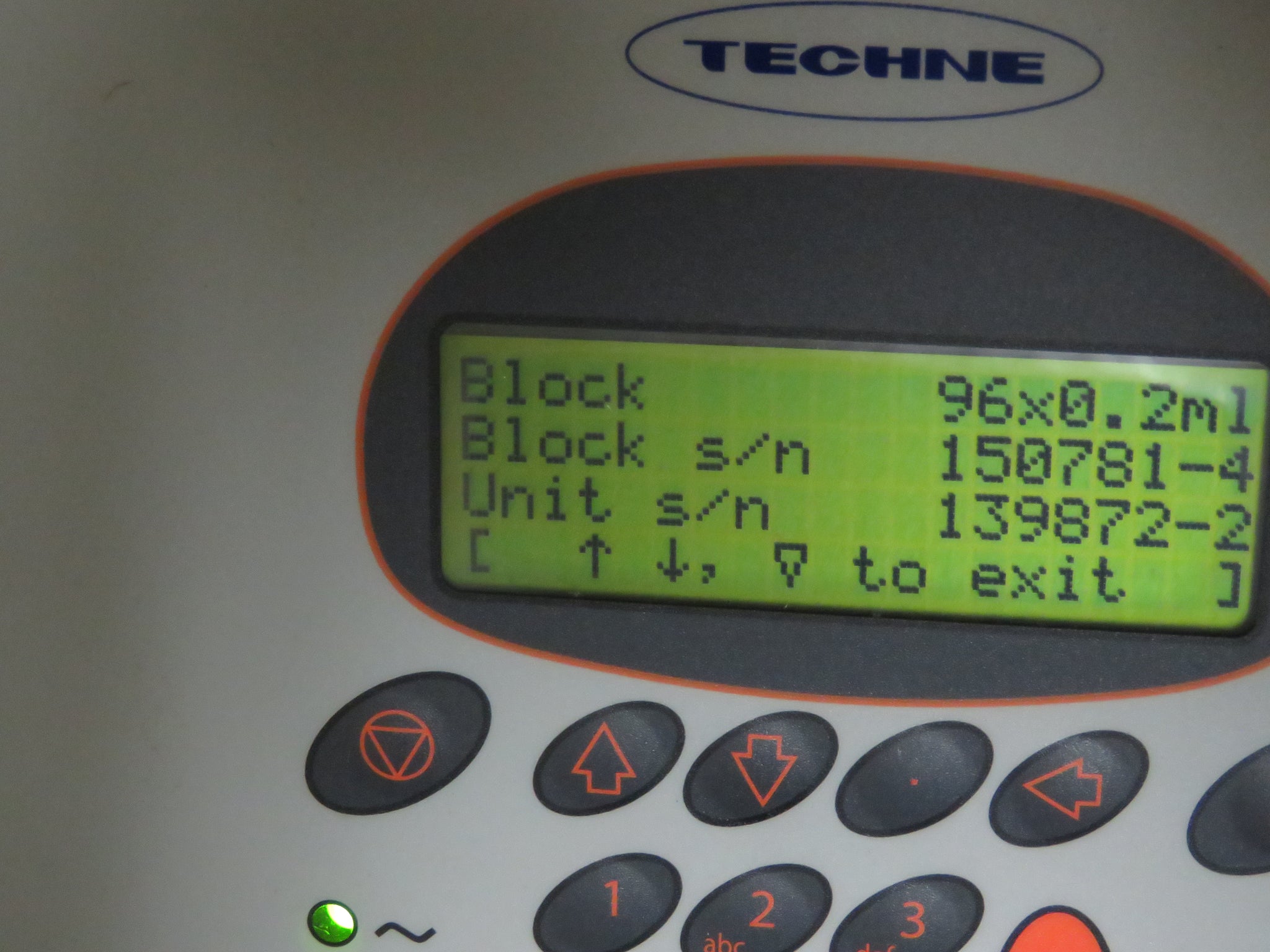

Intuitive programming: New 4-line display with intuitive, simple-to-use software with alphanumeric programming, password protection, simple copy/edit functions and much more.

8 Peltiers: Building on the innovative Quad Circuit Technology of the TC-512, the TC-412 ensures unsurpassed control accuracy and temperature uniformity.

Low cost: The TC-412 is probably the most affordable full sized Thermal Cycler.

PC networking: The TC-412 can be connected to a PC along with other Techne cyclers for low volume or high throughput applications using Gensoft.


Block temperatures - To provide thermal cyclers with the high performance and specificity required for the protocols of today, heated block design and program versatility are important features.

Incremental/decremental temperatures - Touchdown PCR protocols are where a higher temperature is required for the initial cycles than later cycles. This ensures that only highly specific product is created (amplified) during the critical initial steps. A decreased, less stringent temperature is then used by gradually decreasing the annealing temperature. The effect is a higher yield and more specific product. Therefore, to eliminate the need for programming lengthy error prone protocols, choose a thermal cycler which can automatically incorporate an incremental decrease/increase in temperature.

Incremental/decremental time - Long template PCR is the amplification of large fragments of DNA (e.g. 40kb lambda, 27kb Genomic). To ensure that the extension is fully complete after each cycle, the extension time is increased with each cycle to compensate for the increased product quantity and decreasing concentrations of reagents. As above with temperature, choose a thermal cycler which can automatically increase/decrease hold time at a given temperature.

Peltier technology - The peltier effect is used in many applications for the reliable cooling of sensitive high-temperature components without the need for refrigerants or compressors. Otherwise known as thermoelectric coolers, peltiers are a special type of semiconductor that function as a solid state heat pump. By applying a low voltage DC power source to one side, heat will be moved in the direction of the current (+ to - ). The heat is thus pumped from one side of the module to the other, so that one face will be cold while the opposite face will be heated. As this effect is reversible, peltier technology is the chosen method for heating and cooling the block in the best thermal cyclers on the market today.


Blocks Formats

0.5ml capacity - 60
0.2ml capacity - 96
384-well block - Yes
In-situ block - Yes
User interchangeable - Yes

Block Temperature

Maximum ramp rate - 2.6 degrees/sec
Temperature range 4 degrees to 99 degrees
Temperature set point precision - 0.1 degrees

Heated Lid

Selectable heated lid temperature - 100 degrees - 115 degrees
Heated lid enable/disable - Yes
Over temperature cut out - Yes
Regulated lid pressure - Yes
Heated lid only comes on if block is set above - 35 degrees

Programming

Number of programs - 80
Password protection - Yes
Programming - 4-line alphaN
Incremental/decremental temperature - Yes
Incremental/decremental hold time - Yes
Maximum hold time - 18 hrs
Minimum hold time - 1 sec
Variable programmable ramp rate - 0.1 degrees/sec steps
Run end time calculation - Yes
Pause and stop facility - Yes
End of program alarm (enable/disable) - Yes
Auto restart on power failure - Yes

Miscellaneous

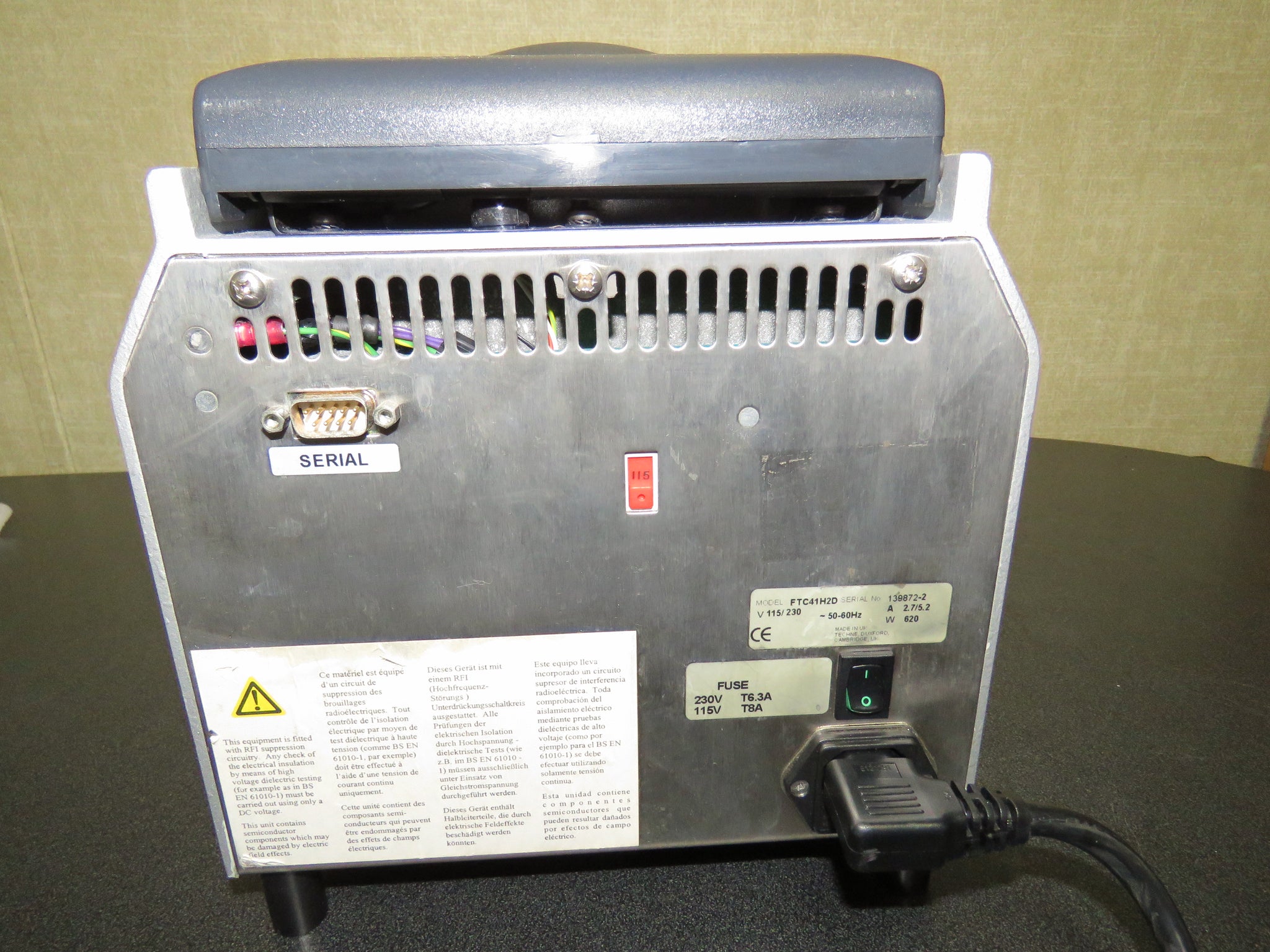

Serial port - RS232

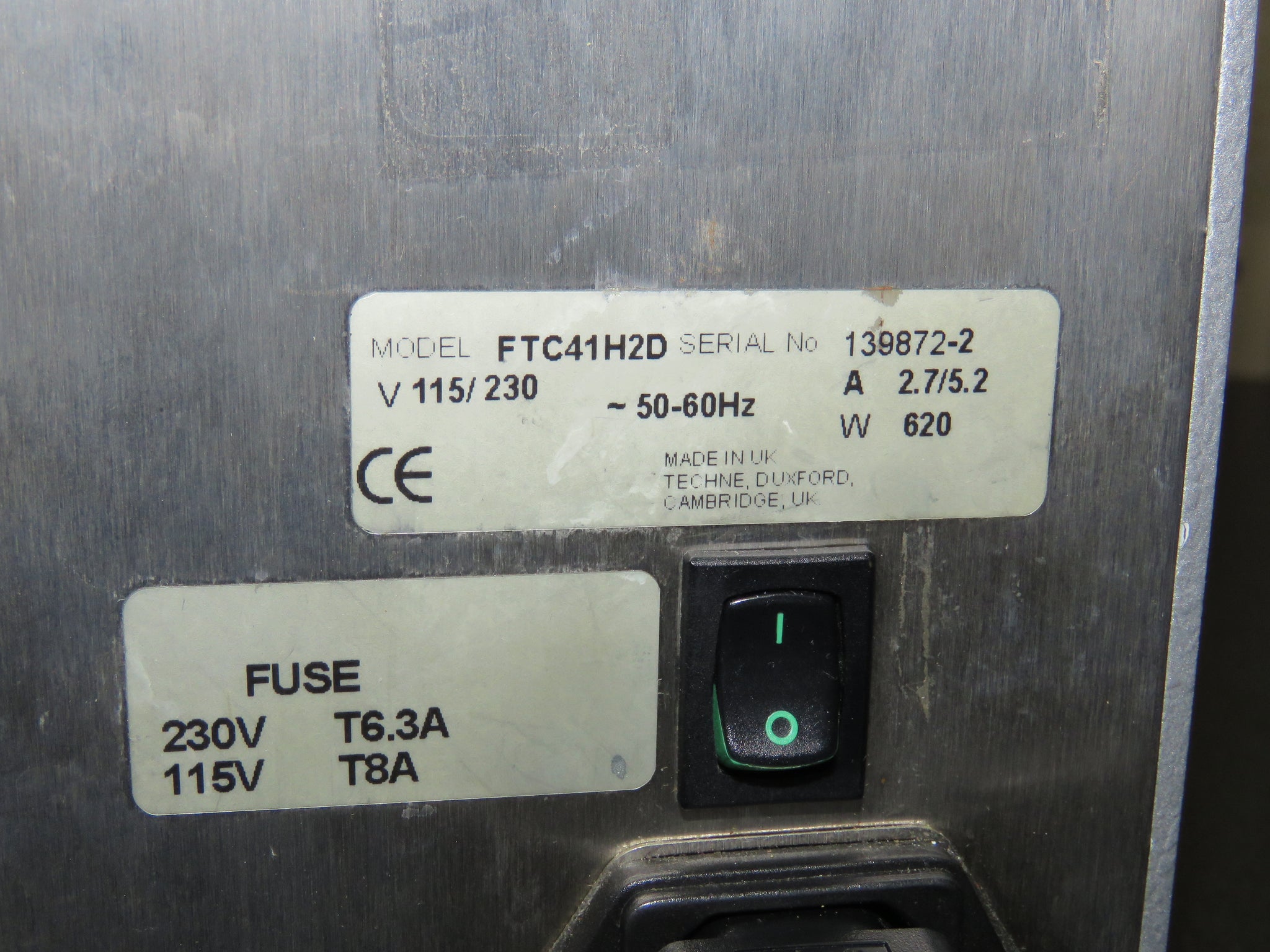

Dual Voltage (120/230V) - Yes
Temperature sensor - Thermistor
Peltier elements/block - 8
Dimensions L x W x H (in inches) - 16.5 x 8.6 x 10.2
Footprint L x W (in inches) - 16.5 x 8.6
Connection to PC control program - Yes
Free software upgrades from website - Yes
Power consumption - 620 Watts
Frequency - 50 - 60 Hz
Net weight (in lbs.) - 25


    Condition

    Excellent functional condition.

    Includes

    • Techne TC-412

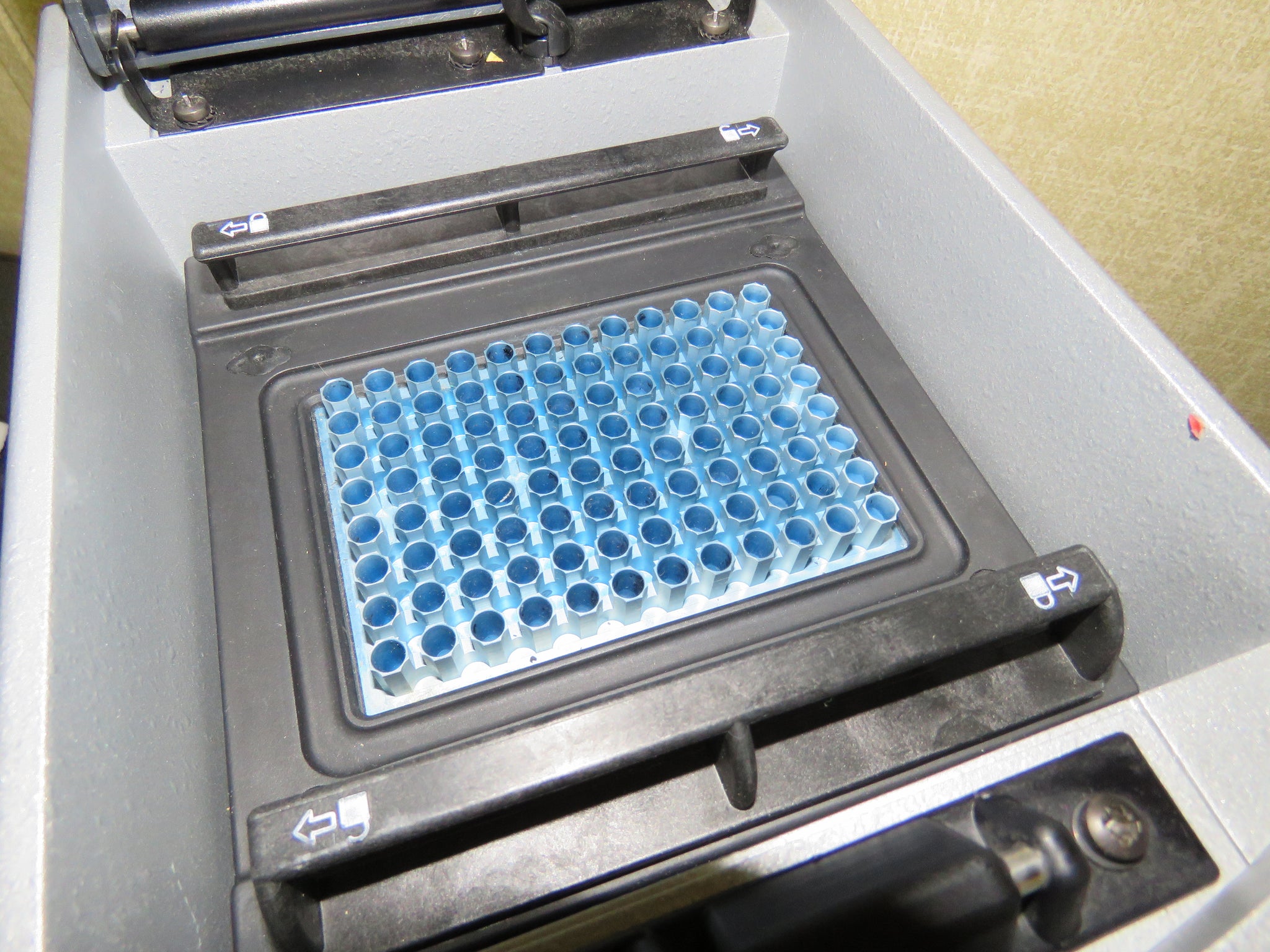

    • 96 Well Block Model
    • Power cord

    EV17


    Warranty

    30 Day warranty. We pledge to offer the best service and warranty to all of our customers!  We are extending a 30 Day warranty on this item. This is our way of saying thank you for allowing us to serve you.

    Certification

    This is a genuine product from this manufacturer.

    Disclaimer

    The sale of this item may be subject to regulation by the U.S. Food and Drug Administration and state and local regulatory agencies. the item is subject to FDA regulation, we will verify your status as an authorized purchaser of this item before shipping of the item."

    Regardless of the origin of the equipment, documentation provided or identification appearing upon the equipment, the equipment described and offered here is in no way certified for, recommended for, or offered for any specific use. The purchaser agrees that the seller shall not be held responsible or liable for any injuries or damages, whether incidental or consequential, associated in any way with the equipment. The purchaser, by bidding on this equipment, indicates their acknowledgment of, and agreement to the terms of this disclaimer. it is the purchaser's responsibility to have the item inspected and certified by a qualified professional before use!
